IDEC MICROSmart FC6A Series User Manual

2: P RODUCT S PECIFICATIONS
2-82 FC6A S ERIES MICROS MART U SER ’ S M ANUAL FC9Y-B1722

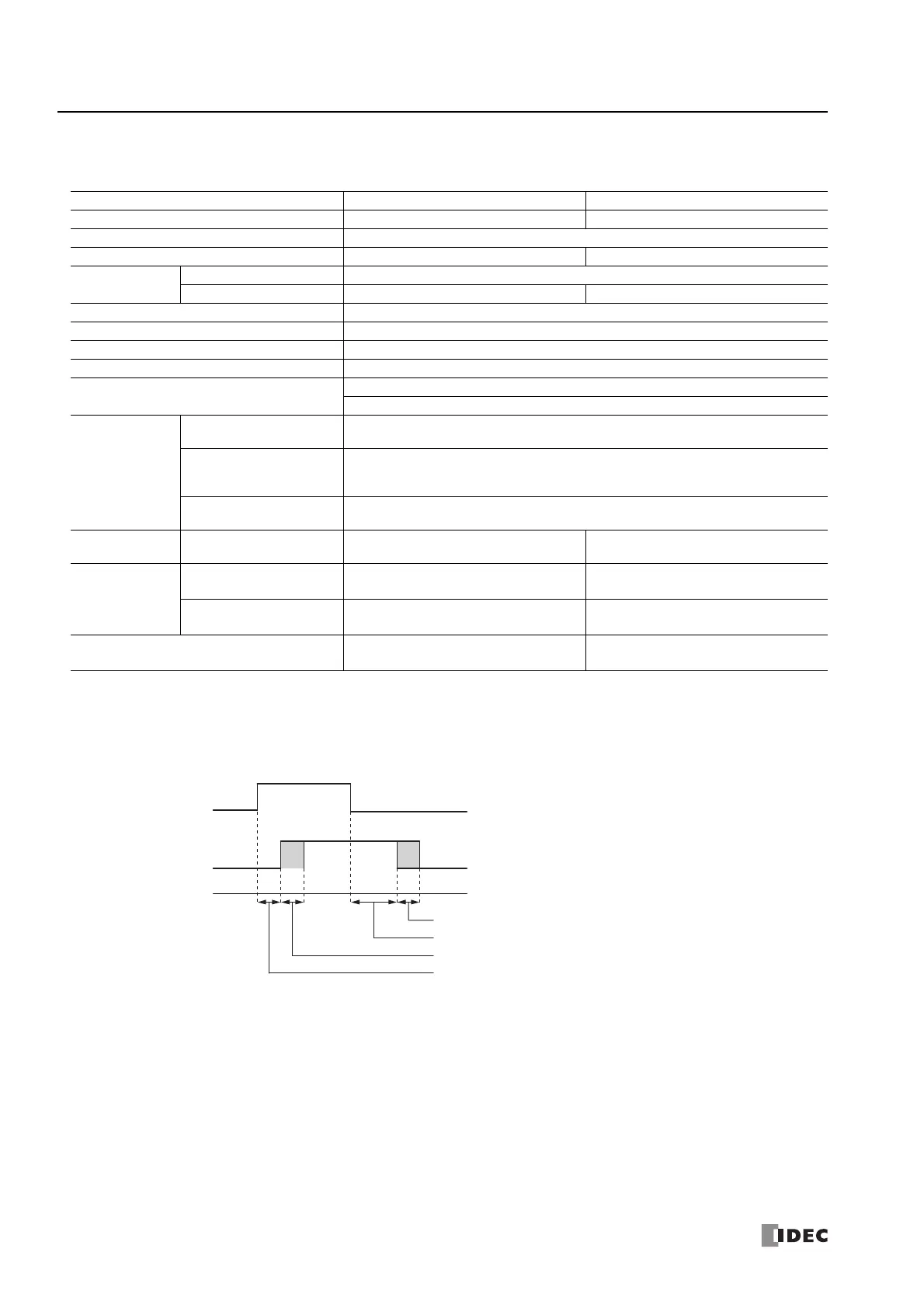

Function Specifications
■ Relay Output Module Specifications
Note: When expanding the CPU module with relay output modules, there are limitations on the number of relays that can be simultaneously on. For
details, see "Connection Restrictions When Expanding the PLC" on page 3-37.
If the maximum number of relays is exceeded, it may not be possible to turn on output relays.
Output Delay
Type No. FC6A-R081, FC6A-R084 FC6A-R161, FC6A-R164
No. of Outputs 8 (4 points in 1 common line) 16 (8 points in 1 common line)
Output Type 1a contact
Terminal Arrangement See 2-88 See 2-89
Load Current
1 2 A maximum
1 Common 7 A maximum 8 A maximum
Minimum Switching Load 1.0 mA/5.0V DC (reference value)
Initial Contact Resistance 30 mΩ or lower
Electrical Life 100,000 operations minimum (rated load 1,800 operations/hour)
Mechanical Life 20,000,000 operations minimum (no load 18,000 operations/hour)
Rated Load
240V AC 2 A (resistive load, cosφ=0.4 inductive load)
30V DC 2 A (resistive load, L/R=7 ms inductive load)
Withstand
Voltage
Between Output
Terminal and FE
2,300V AC 1 minute
Between Output
Terminal and Internal
Circuit
2,300V AC 1 minute
Between Output
Terminals (COMs)
2,300V AC 1 minute
Connector
Insertion/Removal
Durability
100 times minimum 100 times minimum
Module
Internal
Current Draw
All Points ON
35 mA (5V DC)
50 mA (24V DC)
50 mA (5V DC)
100 mA (24V DC)
All Points OFF
17 mA (5V DC)
0 mA (24V DC)
17 mA (5V DC)
0 mA (24V DC)
Weight (approx.)
FC6A-R081: 130 g
FC6A-R084: 115 g
FC6A-R161: 140 g
FC6A-R164: 130 g
OFF Bounce: 6 ms maximum
OFF Delay:
10 ms maximum
ON Bounce: 6 ms maximum
ON Delay:
6 ms maximum
Input to Relay
Output Relay Status
ON
OFF
ON
OFF
