FC6A S ERIES MICROS MART U SER ’ S M ANUAL FC9Y-B1722 2-83
2: P RODUCT S PECIFICATIONS
Ambient Temperature, Input Voltage, Output Voltage, I/O Simultaneous ON Ratio
When the FC6A Series MICROSmart is used in an ambient temperature of 55°C or higher, reduce the output voltage and I/O
utilization (simultaneous ON ratio: a%) according to the following diagrams. However, the following diagrams show the
temperature conditions when the FC6A Series MICROSmart is normally installed.
Note: Normally installed means the state in the diagram in "Normal Installation State" on page 3-1.
The usage conditions will also change according to the installation state. For details, see "Installation Location" on page 3-1.

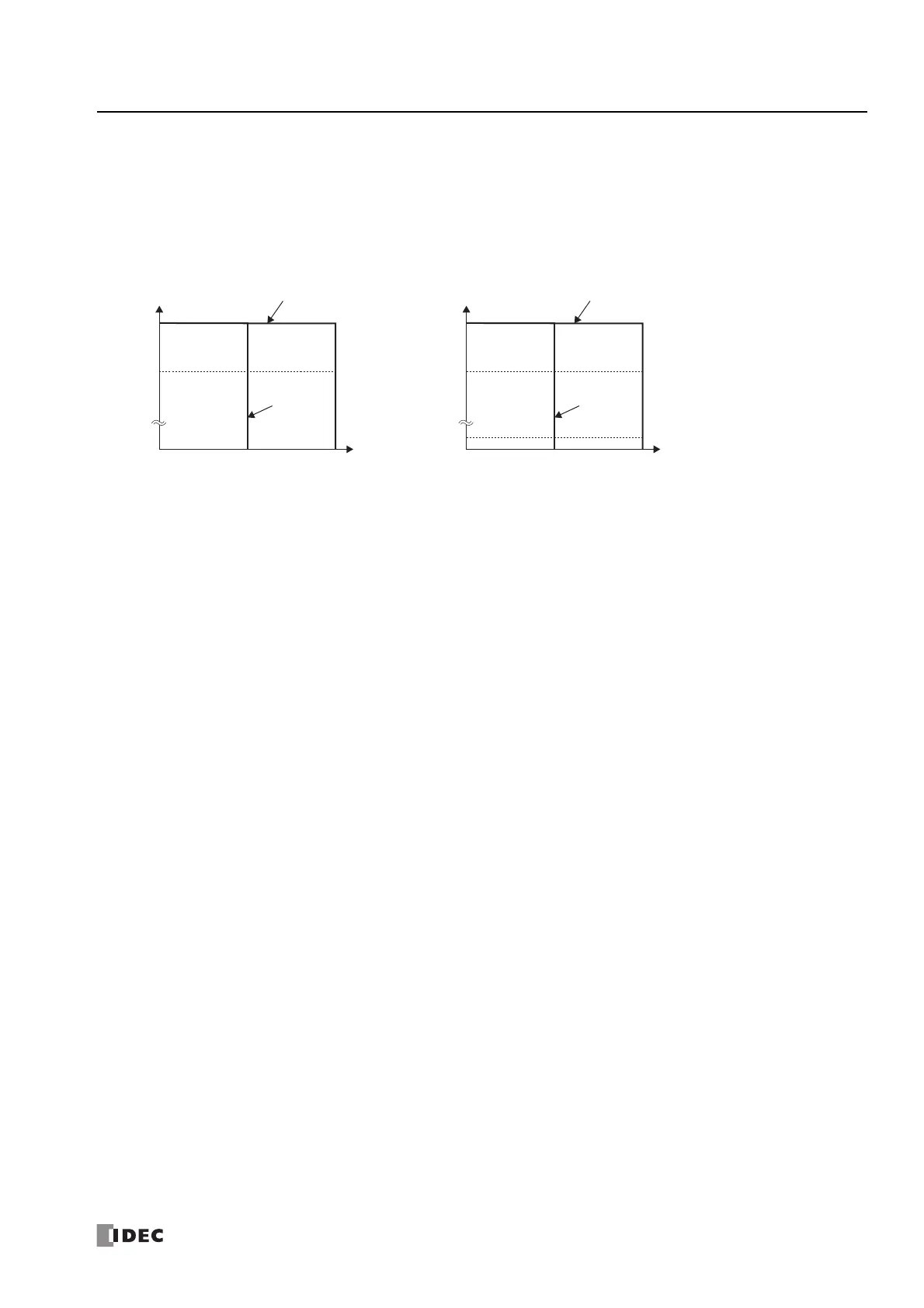

FC6A-R081, FC6A-R084, FC6A-R161, FC6A-R164
I/O Simultan
ON Ratio (%
100%0%
100V AC
0 V
Output Voltage
240V AC
Ambient
Temperature 55°C
50%
Ambient
Temperature
65°C
I/O Simultane
ON Ratio (%)
100%0%
0 V
Output Voltage
30V DC
24V DC
5V DC
Ambient
Temperature 55°C
50%
Ambient
Temperature
65°C
