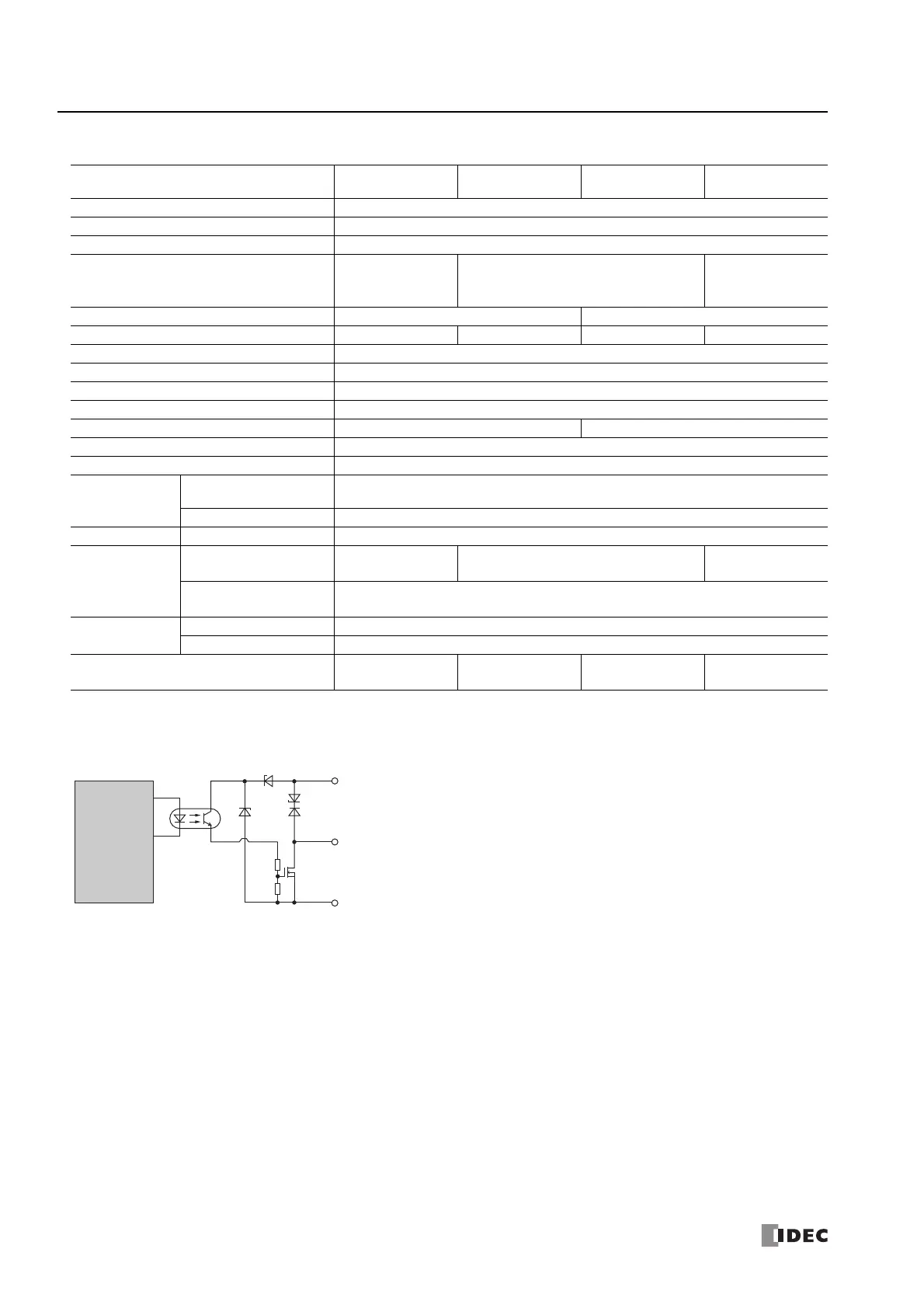

■ Transistor Sink Output Module Specifications
*1 24V DC for products with a version number lower than V400. For details on the version number of modules, see "Checking the Version Number"
on page 2-1.
Output Internal Circuit
Type No.
FC6A-T08K1
FC6A-T08K4
FC6A-T16K1
FC6A-T16K4
FC6A-T16K3 FC6A-T32K3
Output Signal Transistor sink output
Rated Load Voltage 12/24V DC
*1
Operating Load Voltage Range 10.2 to 28.8V DC
No. of Outputs
8
(8 points in 1
common line)
16
(16 points in 1 common line)
32
(16 points in 1
common line)
Rated Load 0.5 A 1 point 0.1 A 1 point
Terminal Arrangement See 2-90 See 2-92 See 2-94 See 2-95
Voltage Drop (ON Voltage) 0.4 V or less, voltage between COM and output terminal when ON
Allowed Inrush Current 1 A maximum
Leakage Current 0.1 mA maximum
Clamping Voltage 50 V
Lamp Load 12 W maximum 2.4 W maximum
Inductive Load L/R = 10 ms (28.8V DC, 1 Hz)
External Current Draw 100 mA maximum, 24V DC (+V terminal supply power)
Isolation
Between Output Terminal
and Internal Circuit
Photocoupler isolated
Between Output Terminals
Not isolated
Connector
Insertion/Removal Durability
100 times minimum
Internal
Current Draw
All Points ON
25 mA (5V DC)
15 mA (24V DC)
30 mA (5V DC)
25 mA (24V DC)
45 mA (5V DC)
50 mA (24V DC)
All Points OFF
17 mA (5V DC)
0 mA (24V DC)
Output Delay
Turn ON Time 450 μs or lower
Turn OFF Time 450 μs or lower
Weight (approx.)
FC6A-T08K1: 110 g
FC6A-T08K4: 95 g
FC6A-T16K1: 105 g
FC6A-T16K4: 95 g
70 g 115 g
V (+)
Output
COM (
-
)
Internal Circuit
