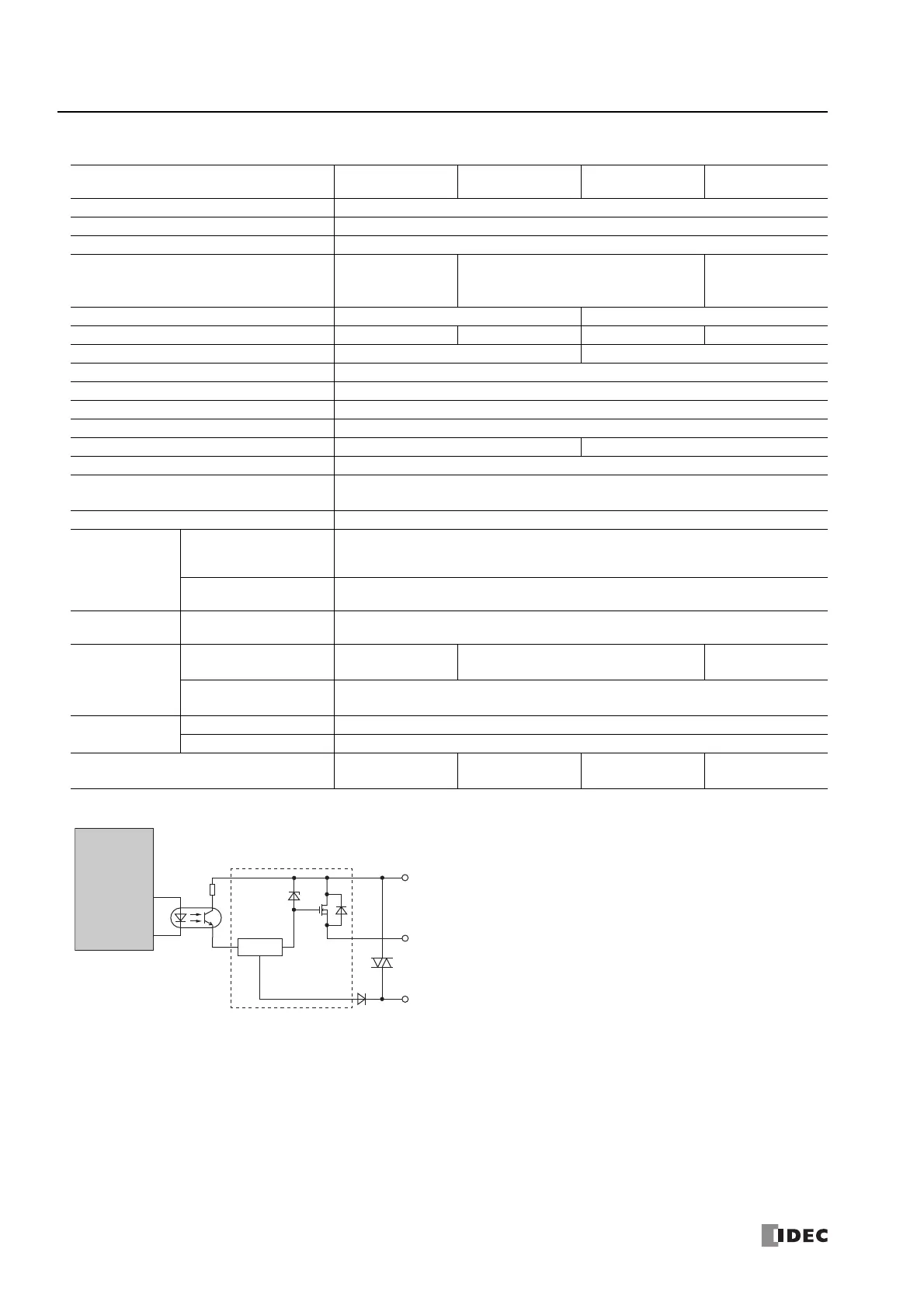

■ Transistor Protection Source Output Module Specifications
Output Internal Circuit
(The overcurrent detection circuit has been omitted.)
Type No.
FC6A-T08P1
FC6A-T08P4
FC6A-T16P1
FC6A-T16P4
FC6A-T16P3 FC6A-T32P3
Output Signal Transistor protection source output
Rated Load Voltage 24V DC
Operating Load Voltage Range 20.4 to 28.8V DC
No. of Outputs
8
(8 points in 1
common line)
16
(16 points in 1 common line)
32
(16 points in 1
common line)
Rated Load 0.5 A 1 point 0.1 A 1 point
Terminal Arrangement See 2-91 See 2-93 See 2-94 See 2-96
Output Current Limit Range 1.01 to 2.6 A 0.7 to 1.7 A
Voltage Drop (ON Voltage) 0.4 V or less, voltage between COM and output terminal when ON
Allowed Inrush Current 1 A maximum
Leakage Current 0.1 mA maximum
Clamping Voltage 41 to 52 V
Lamp Load 12 W maximum 9.6 W maximum
Inductive Load L/R = 10 ms (28.8V DC, 1 Hz)
Protection Operation
Temporarily protected by element heat generation, automatic recovery.
(There is no function that detects the protection error.)
External Current Draw 100 mA maximum, 24V DC (-V terminal supply power)
Isolation
Between Output
Terminal and Internal
Circuit
Photocoupler isolated
Between Output
Terminals
Not isolated
Connector
Insertion/Removal
Durability
100 times minimum
Module
Internal
Current Draw
All points ON
25 mA (5V DC)
15 mA (24V DC)
30 mA (5V DC)
25 mA (24V DC)
45 mA (5V DC)
50 mA (24V DC)
All points OFF
17 mA (5V DC)
0 mA (24V DC)
Output Delay
Turn ON Time 450 μs or lower
Turn OFF Time 450 μs or lower
Weight (approx.)
FC6A-T08P1: 110 g
FC6A-T08P4: 95 g
FC6A-T16P1: 105 g
FC6A-T16P4: 95 g
75 g 115 g
V ( - )
Output
COM (+)
Internal Circuit
Logic
Output Protection Element
