2: P RODUCT S PECIFICATIONS
2-168 FC6A S ERIES MICROS MART U SER ’ S M ANUAL FC9Y-B1722
Analog I/O Cartridges
Analog I/O cartridges can be connected to cartridge slots on the All-in-One CPU module, CAN J1939 All-in-One CPU module,
cartridge base module, or HMI module. These cartridges expand the system with a maximum of six analog inputs or outputs. For
details on analog I/O cartridges, see "Analog I/O Cartridge" on page 10-7.

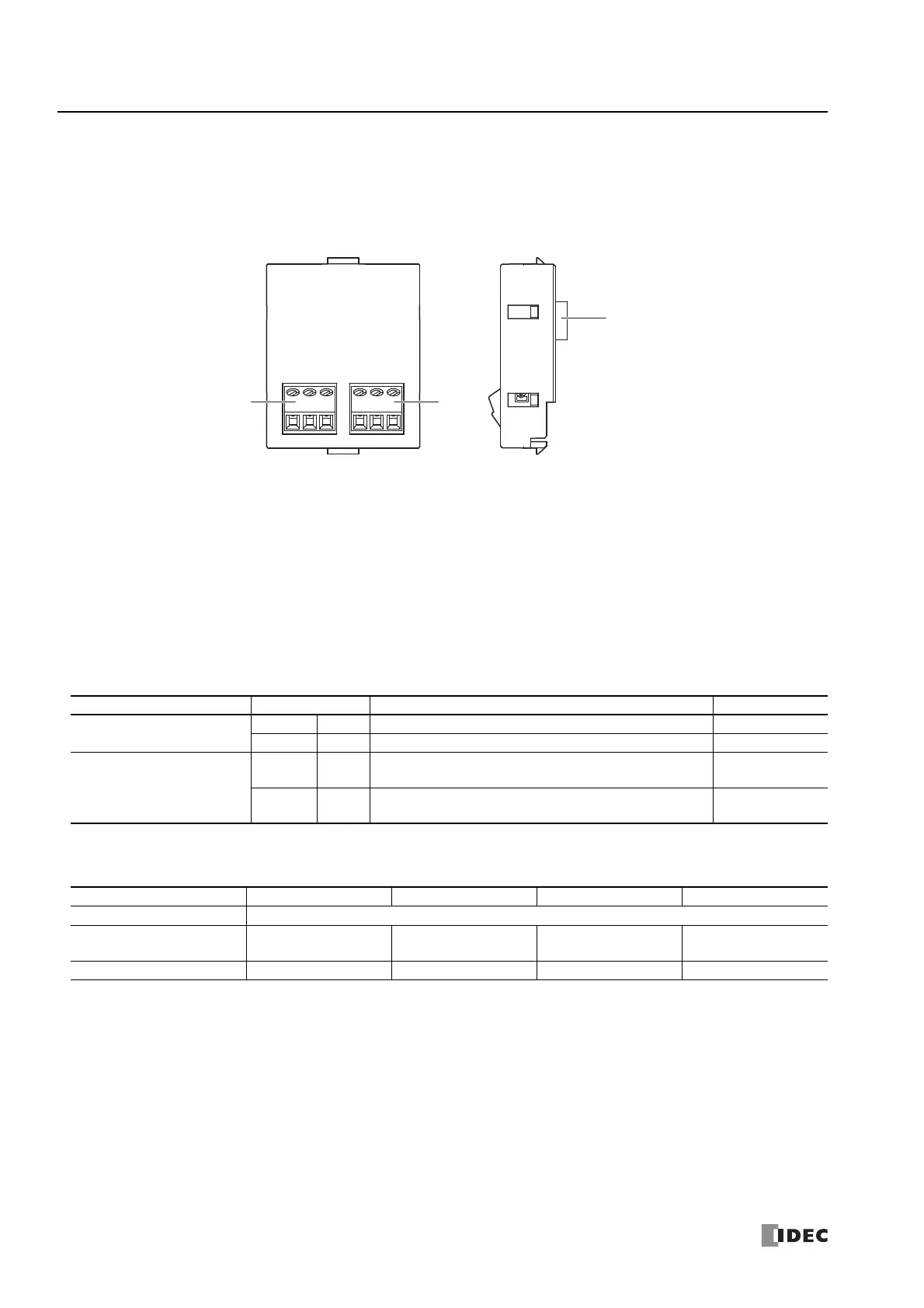

Parts Description
(1) Channel 0 terminals
The terminals connect an input device or an output device. The devices that can be connected differ by the type of analog
I/O cartridge.
(2) Channel 1 terminals
The terminals connect an input device or an output device. The devices that can be connected differ by the type of analog
I/O cartridge.
(3) Connector
Connects the cartridge to cartridge slot 1 or 2 on the All-in-One CPU module, CAN J1939 All-in-One CPU module, or cartridge
base module or cartridge slot 3 on the HMI module.
Model List
Function Specifications
Cartridge Type I/O Points I/O Signal Type No.
Analog output cartridge
Output 2 Voltage output: 0 to 10V DC FC6A-PK2AV
Output 2 Current output: 4 to 20mA DC FC6A-PK2AW
Analog input cartridge
Input 2
Voltage input: 0 to 10V DC
Current input: 0 to 20mA DC, 4 to 20mA DC
FC6A-PJ2A
Input 2
Thermocouple input: K, J, R, S, B, E, T, N, C
Resistance thermometer input: Pt100, Pt1000, Ni100, Ni1000
FC6A-PJ2CP
Type No. FC6A-PK2AV FC6A-PK2AW FC6A-PJ2A FC6A-PJ2CP
Rated Power Voltage 5.0 V, 3.3 V (supplied from module)
Current Draw
5.0 V: 70 mA
3.3 V: 30 mA
5.0 V: 185 mA
3.3 V: 30 mA
5.0 V: ―
3.3 V: 30 mA
5.0 V: ―
3.3 V: 30 mA
Weight 15 g 15 g 15 g 15 g
(1) (2)
(3)
