2: P RODUCT S PECIFICATIONS
2-180 FC6A S ERIES MICROS MART U SER ’ S M ANUAL FC9Y-B1722

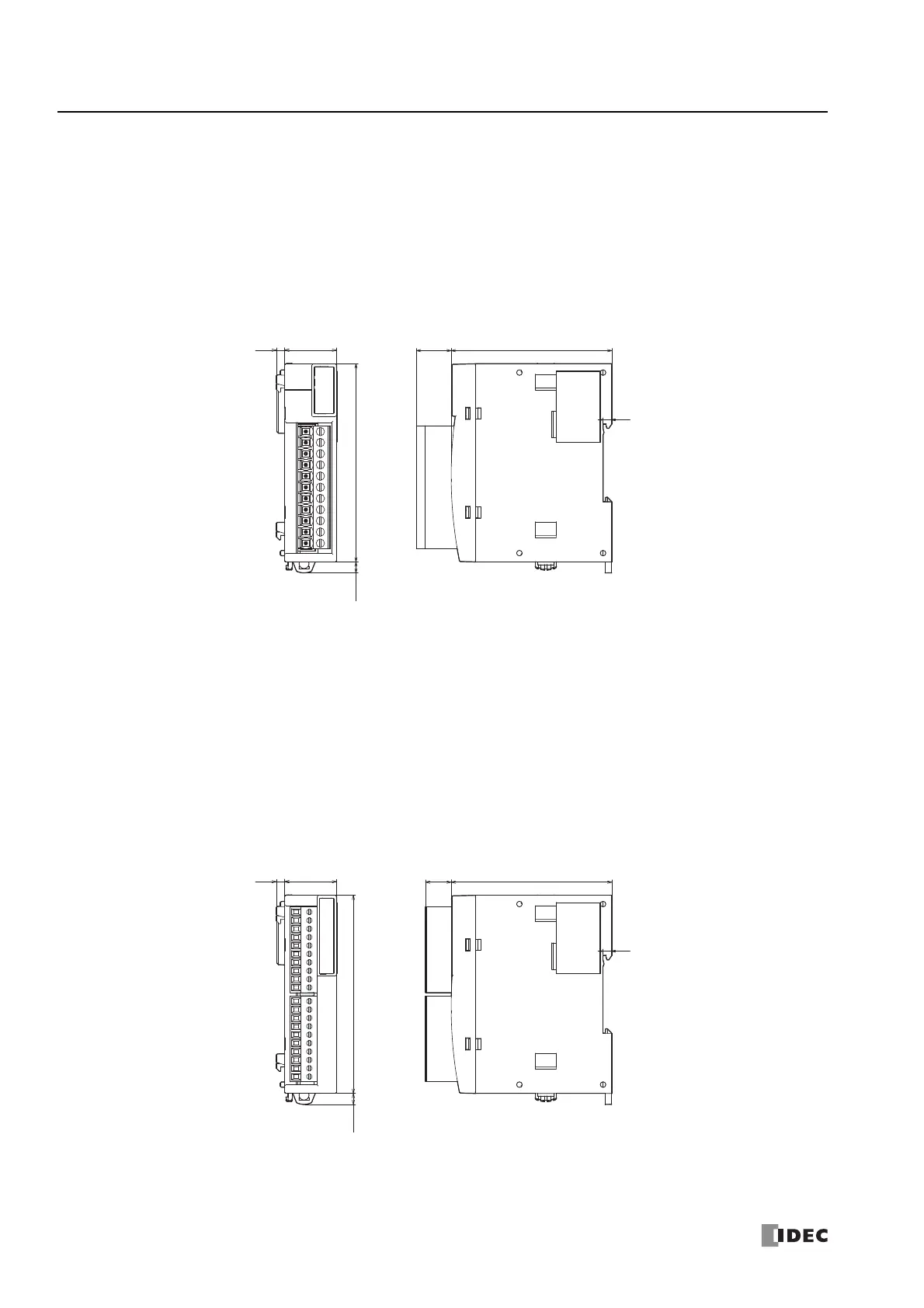

Expansion Modules
*1 9.3 mm when the hook is pulled out.
*2 The above drawing is for the screw fastened type. Dimensions for the push-in type are given in [ ].
*1 9.3 mm when the hook is pulled out.
*2 The above drawing is for the screw fastened type. Dimensions for the push-in type are given in [ ].
Digital input modules: Screw fastened type: FC6A-N08B1, FC6A-N08A11
Push-in type: FC6A-N08B4, FC6A-N08A14
Digital output modules: Screw fastened type: FC6A-R081, FC6A-T08K1, FC6A-T08P1
Push-in type: FC6A-R084, FC6A-T08K4, FC6A-T08P4
Digital mixed I/O modules: Screw fastened type: FC6A-M08BR1
Push-in type: FC6A-M08BR4
Analog I/O modules: Screw fastened type: FC6A-J2C1, FC6A-K2A1, FC6A-K4A1, FC6A-J4CN1
Push-in type: FC6A-J2C4, FC6A-K2A4, FC6A-K4A4, FC6A-J4CN4
Digital input modules: Screw fastened type: FC6A-N16B1
Push-in type: FC6A-N16B4
Digital output modules: Screw fastened type: FC6A-R161, FC6A-T16K1, FC6A-T16P1
Push-in type: FC6A-R164, FC6A-T16K4, FC6A-T16P4
Analog I/O modules: Screw fastened type: FC6A-J4A1, FC6A-J8A1, FC6A-J4CN1, FC6A-J4CH1Y,
FC6A-J8CU1, FC6A-L06A1
Push-in type: FC6A-J4A4, FC6A-J8A4, FC6A-J4CN4, FC6A-J4CH4Y, FC6A-J8CU4,
FC6A-L06A4
Communication modules: Screw fastened type: FC6A-SIF52
Push-in type: FC6A-SIF524
5.0 90.0
23.63.8
73.015.8
4.0
[14.0]
*2
*1
All dimensions in mm.
90.0
23.63.8
5.0
4.0
73.011.7
[11.8]
*2
*1
All dimensions in mm.
