FC6A S
ERIES
MICROS
MART
U
SER
’
S
M
ANUAL
FC9Y-B1722 3-31
3: I
NSTALLATION
AND
W
IRING

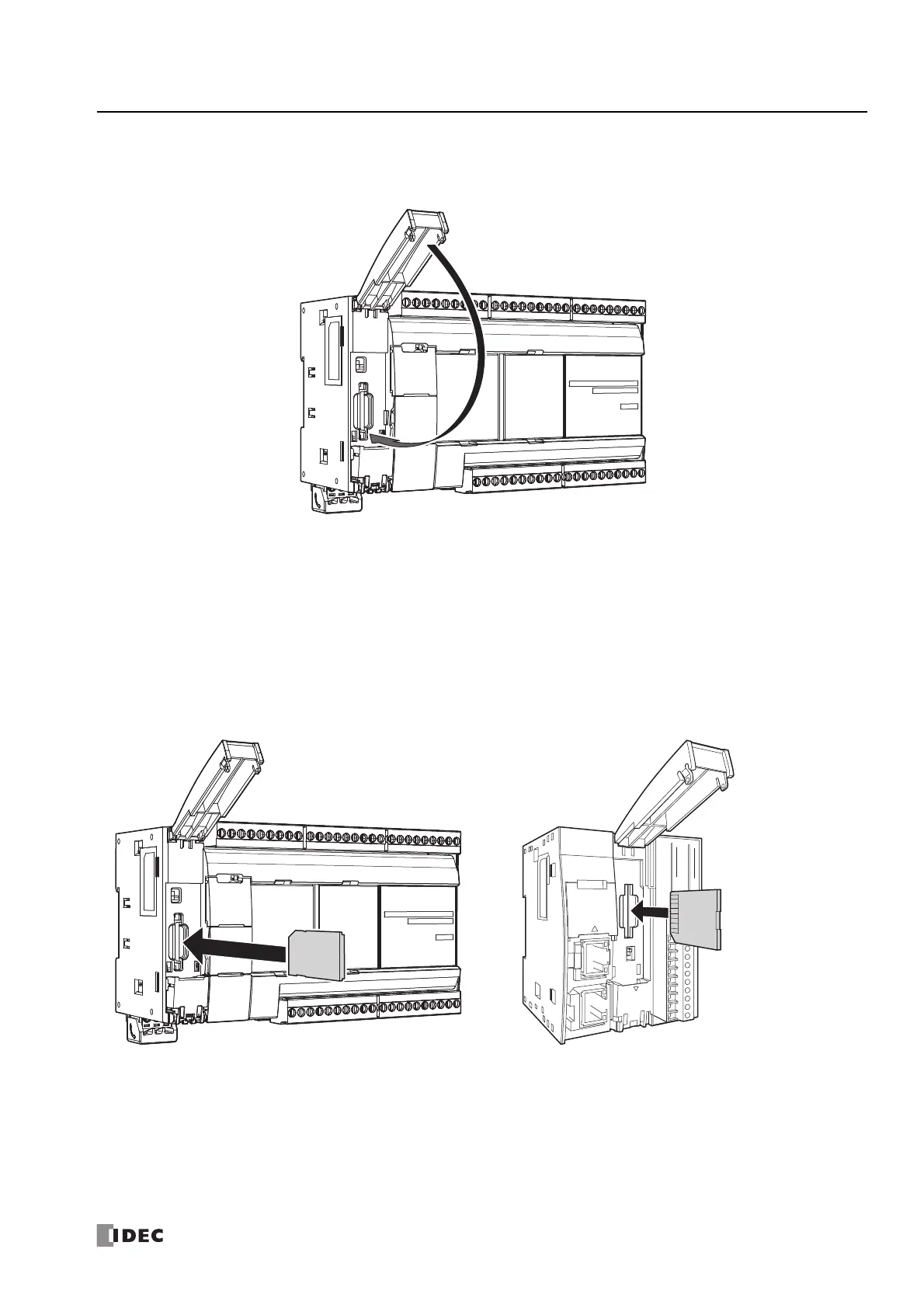

Closing the SD Memory Card Cover
1. Close the SD memory card cover and push it until it clicks.
Inserting and Removing the SD Memory Card
The following procedure describes how to insert and remove the SD memory card.
Inserting the SD Memory Card
1. Unlock and open the SD memory card cover.
For details, see "Opening the SD Memory Card Cover" on page 3-30.
2. With the missing corner of the SD memory card facing the function switch side, push the SD memory card straight in until it
clicks.
Notes:
Use caution as the direction to insert the SD memory card depends on the model.
Turn off the write protect switch on the SD memory card that will be inserted into the FC6A Series MICROSmart.
3. Close the SD memory card cover and push it until it clicks.
For details, see "Closing the SD Memory Card Cover" on page 3-31.
All-in-One CPU module
CAN J1939 All-in-One CPU module
Plus CPU module
To Next Page
