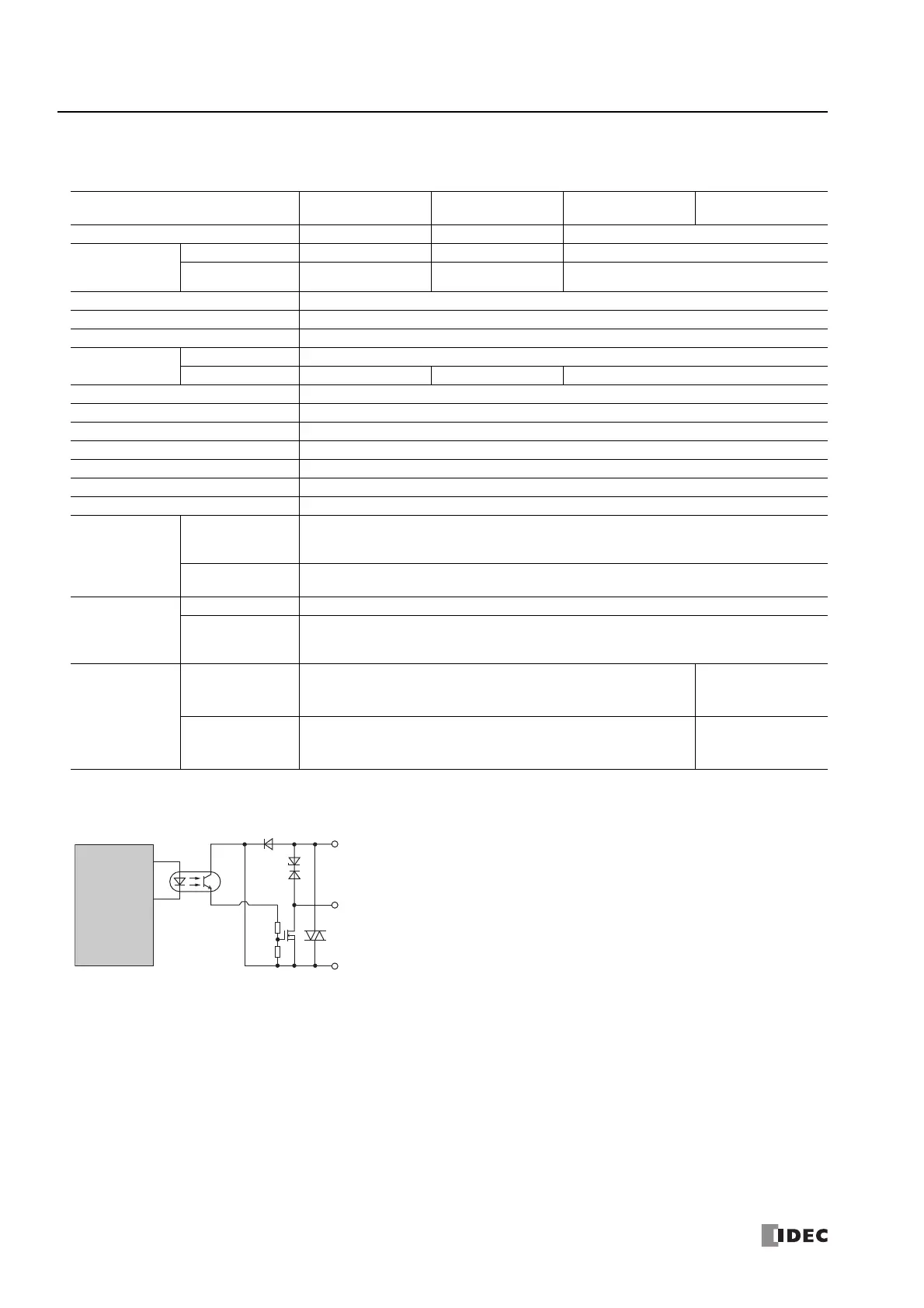

IDEC MICROSmart FC6A Series User Manual

2: P RODUCT S PECIFICATIONS
2-26 FC6A S ERIES MICROS MART U SER ’ S M ANUAL FC9Y-B1722
Transistor Sink Output Specifications
■ 24V DC power type
Output Internal Circuit
Type No.
FC6A-C16K1CE
FC6A-C16K4CE
FC6A-C24K1CE
FC6A-C24K4CE
FC6A-C40K1CE
FC6A-C40K4CE
FC6A-C40K1CEJ
FC6A-C40K4CEJ
No. of Outputs 71016
Output Points
per Common
Line
COM0 7108
COM1 ――8
Rated Load Voltage 24V DC
Operating Load Voltage Range 20.4 to 28.8V DC
Terminal Arrangement See "24V DC Power Type" on page 2-37
Maximum Load
Current
1 0.5 A maximum
1 Common 3.5 A maximum 5 A maximum 4 A maximum
Voltage Drop (ON Voltage) 1 V or less, voltage between COM and output terminal when ON
Maximum Inrush Current 1 A
Leakage Current 0.1 mA maximum
Clamping Voltage 39 V±1 V
Maximum Lamp Load 12 W
Inductive Load L/R = 10 ms (28.8V DC, 1 Hz)
External Current Draw 100 mA maximum, 24V DC (+V terminal supply power)
Isolation
Between Output
Terminal and
Internal Circuit
Photocoupler isolated
Between Output
Terminals
Not isolated
I/O Terminal
Connector
Type See "24V DC Power Type" on page 2-37
Insertion/
Removal
Durability
100 times minimum
Output Delay
Turn ON Time
Q0 to Q1: 5 μs or less
Q2 to Q3: 30 μs or less
Q4 to Q7, Q10 to Q17: 300 μs or less
Q0 to Q7: 5 μs or less
Q10 to Q17: 300 μs or
less
Turn OFF Time
Q0 to Q1: 5 μs or less
Q2 to Q3: 30 μs or less
Q4 to Q7, Q10 to Q17: 300 μs or less
Q0 to Q7: 5 μs or less
Q10 to Q17: 300 μs or
less
V(+)
Output
COM(
- )
Internal Circuit
T
2
T
1
