FC6A S
ERIES
MICROS
MART
U
SER
’
S
M
ANUAL
FC9Y-B1722 2-25
2: P
RODUCT
S
PECIFICATIONS

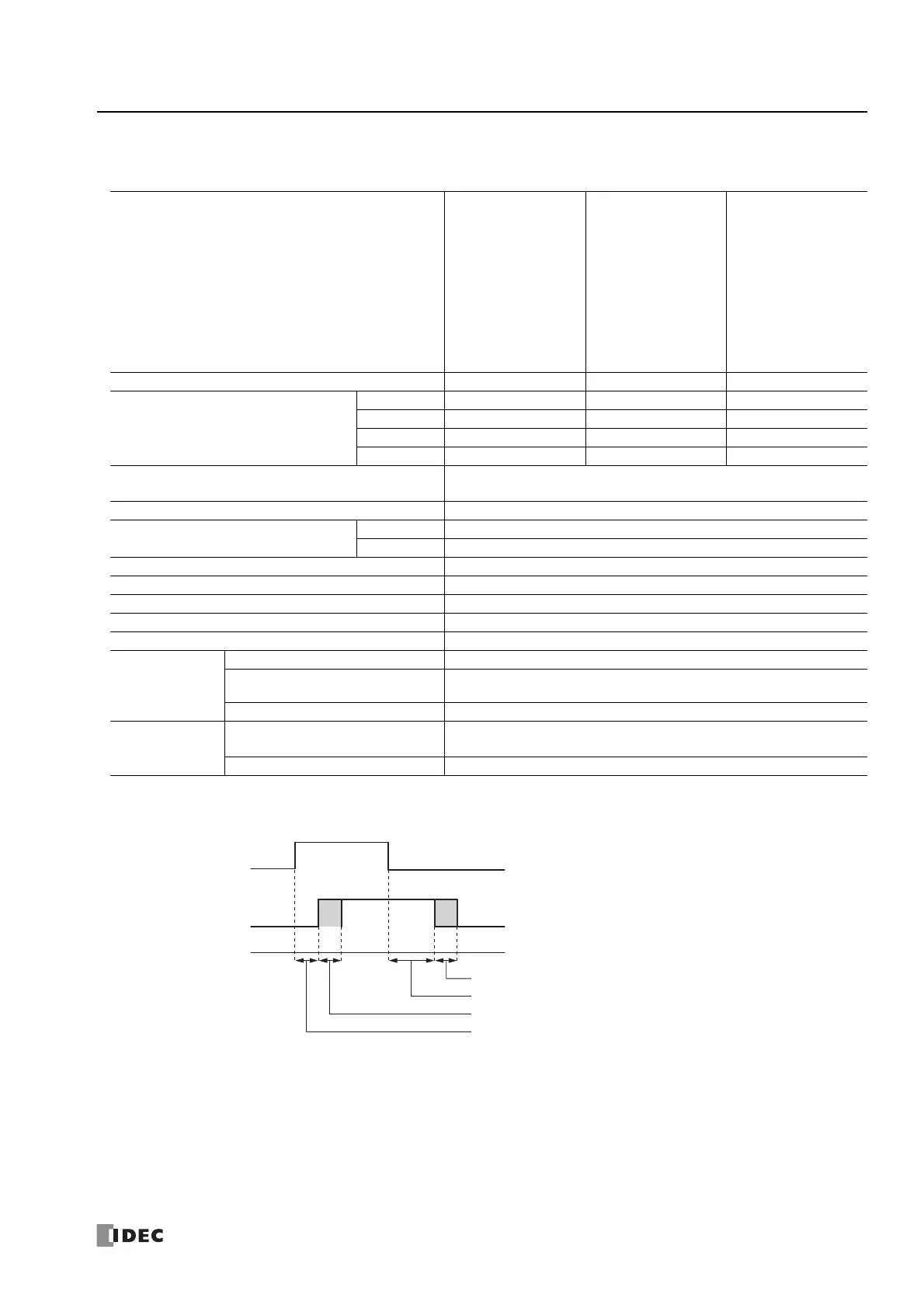

Relay Output Specifications
■ AC Power Type, 24V DC Power Type, 12V DC Power Type
*1 Values for resistive/inductive load.
Output Delay
Type No.
FC6A-C16R1AE
FC6A-C16R4AE
FC6A-C16R1CE
FC6A-C16R4CE
FC6A-C16R1DE
FC6A-C16R4DE
FC6A-C24R1AE
FC6A-C24R4AE
FC6A-C24R1CE
FC6A-C24R4CE
FC6A-C40R1AE
FC6A-C40R4AE
FC6A-C40R1CE
FC6A-C40R4CE
FC6A-C40R1DE
FC6A-C40R4DE
FC6A-C40R1AEJ
FC6A-C40R4AEJ
FC6A-C40R1CEJ
FC6A-C40R4CEJ
FC6A-C40R1DEJ
FC6A-C40R4DEJ
No. of Outputs 71016
Output Points per Common Line
COM0 444
COM1 344
COM2 ― 24
COM3 ――4
Terminal Arrangement
See "AC Power Type" on page 2-34, "24V DC Power Type" on page 2-37, "12V
DC Power Type" on page 2-43
Output Type 1a contact
Maximum Load Current
*1
1 2 A maximum
1 Common 7 A maximum
Minimum Switching Load 1.0 mA/5.0V DC (reference value)
Initial Contact Resistance 30 mΩ or lower
Electrical Life 100,000 operations minimum (rated load 1,800 operations/hour)
Mechanical Life 20,000,000 operations minimum (no load 18,000 operations/hour)
Rated Load
*1
240V AC 2 A, 30V DC 2 A
Withstand
Voltage
Between Output Terminal and FE 2,300V AC 1 minute
Between Output Terminal and
Internal Circuit
2,300V AC 1 minute
Between Output Terminals (COMs)
2,300V AC 1 minute
I/O Terminal
Connector
Type
See "AC Power Type" on page 2-34, "24V DC Power Type" on page 2-37, "12V
DC Power Type" on page 2-43
Insertion/Removal Durability 100 times minimum
OFF Bounce: 6 ms maximum
OFF Delay:
10 ms maximum
ON Bounce: 6 ms maximum
ON Delay:
6 ms maximum
Input to Relay
Output Relay Status
ON
OFF
ON
OFF
To Next Page
