System Settings
149
• A rotation sensor may be installed inside
the cab to support work in single and dual
slopes. This sensor actually contains three
sensors: one for pitch (tilt
forward/backward), one for roll (tilt
left/right) and one for cab rotation.

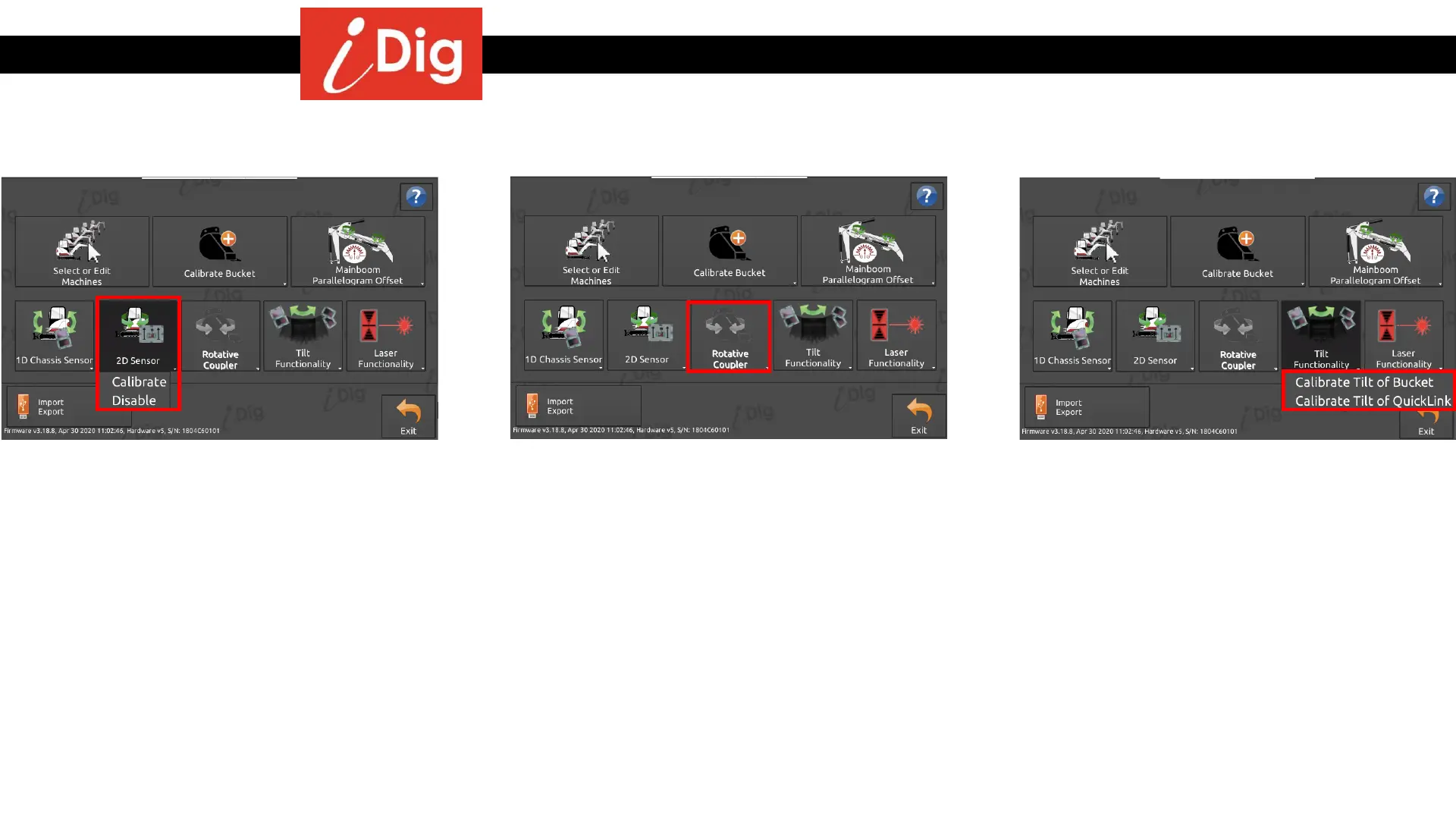

• This button will launch the calibration
process for the “2D Sensor” or to
enable/disable the functionality.
• This function requires that you have the
Tilt Bucket Kit installed on the rotative
coupler and a CAN bus cable connected to
the rotator supplier’s in cab controller.
• Currently iDig only supports the Engcon
Rotative Coupler that is equipped with
their EPS sensor.
2D Sensor Rotative Coupler
• A Tilt Bucket Kit may be installed in order
to view the actual tilting of the bucket. It
contains two Mini Sensors and a triangle
support mount and can be installed on a
standard tilt bucket or a tilt quickage such
as Engcon, Steelwrist, Powertilt, etc.
Tilt Functionality
