Installation Procedures – Laser Receiver Calibration
Laser Receiver Calibration - Automatic
• You will need a rotating laser, hand held laser receiver, an extra person
and a tripod.
• Only recommended if the Sensor is located on the bottom 1/3 of
the dipper stick.
• The laser should have a minimum RPM range of 600 RPM.
• Pulse lasers should not be used.
• If possible, remove the bucket from the machine. Set up the tripod
and laser off to the side a minimum of 10 ft. away.
• Turn on the Laser.
• The iDig Combo Sensor needs to receive the laser beam while moving
through an arc with the dipper stick in close to the cab and then the
dipper stick extended away from the cab.
• Be sure the laser is set high enough to allow the dipper stick to
move in and out WITHOUT having to move the main boom.

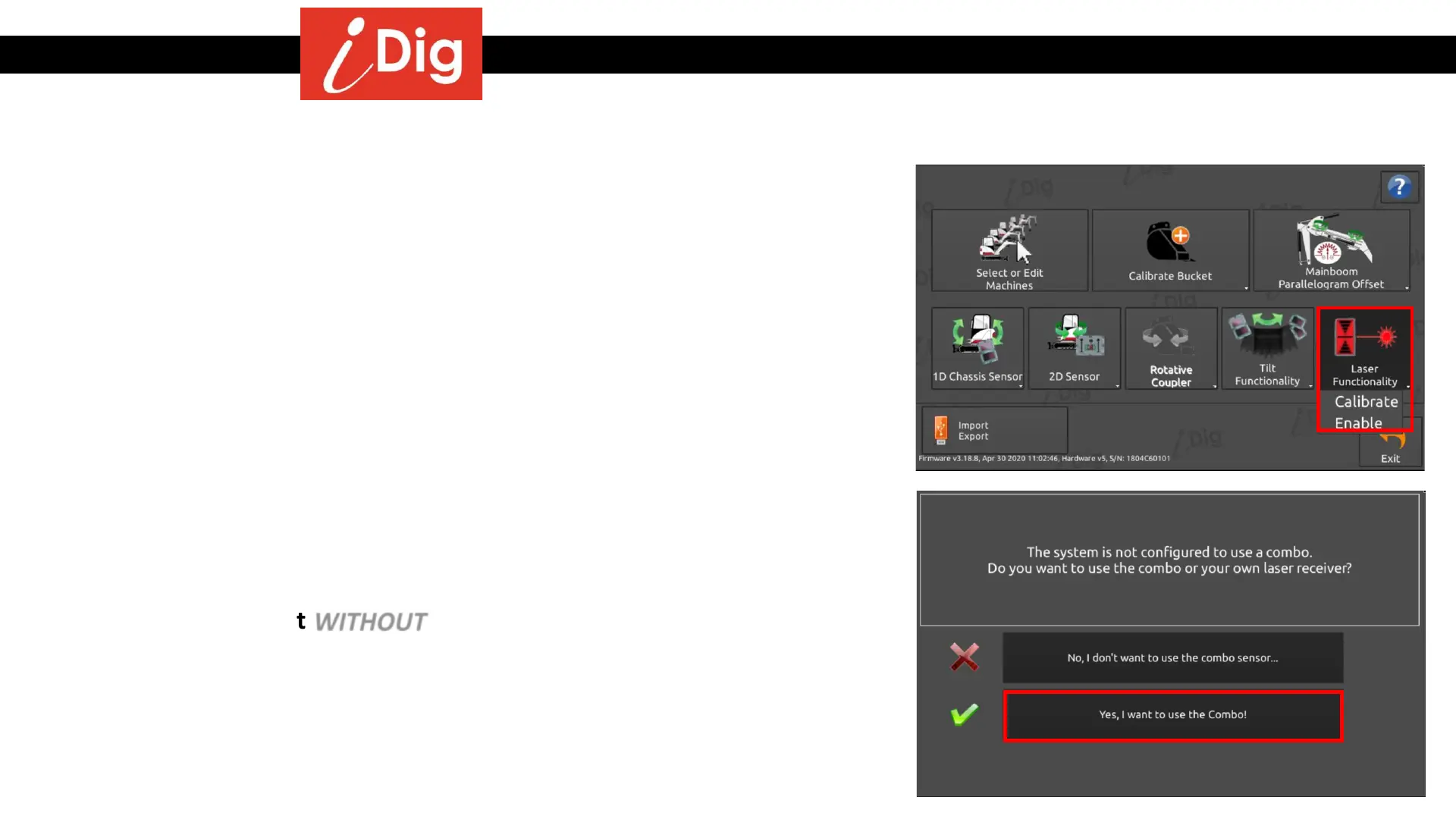

• To start the calibration process press the Gearbox on the main screen:
• System Settings >
• Laser Functionality >
• Calibrate
• Select “Yes, I want to use the Combo”
