24 iDirect Satellite Router Installation and Commissioning Guide

iDX Release 3.3

Loading Packages with iSite

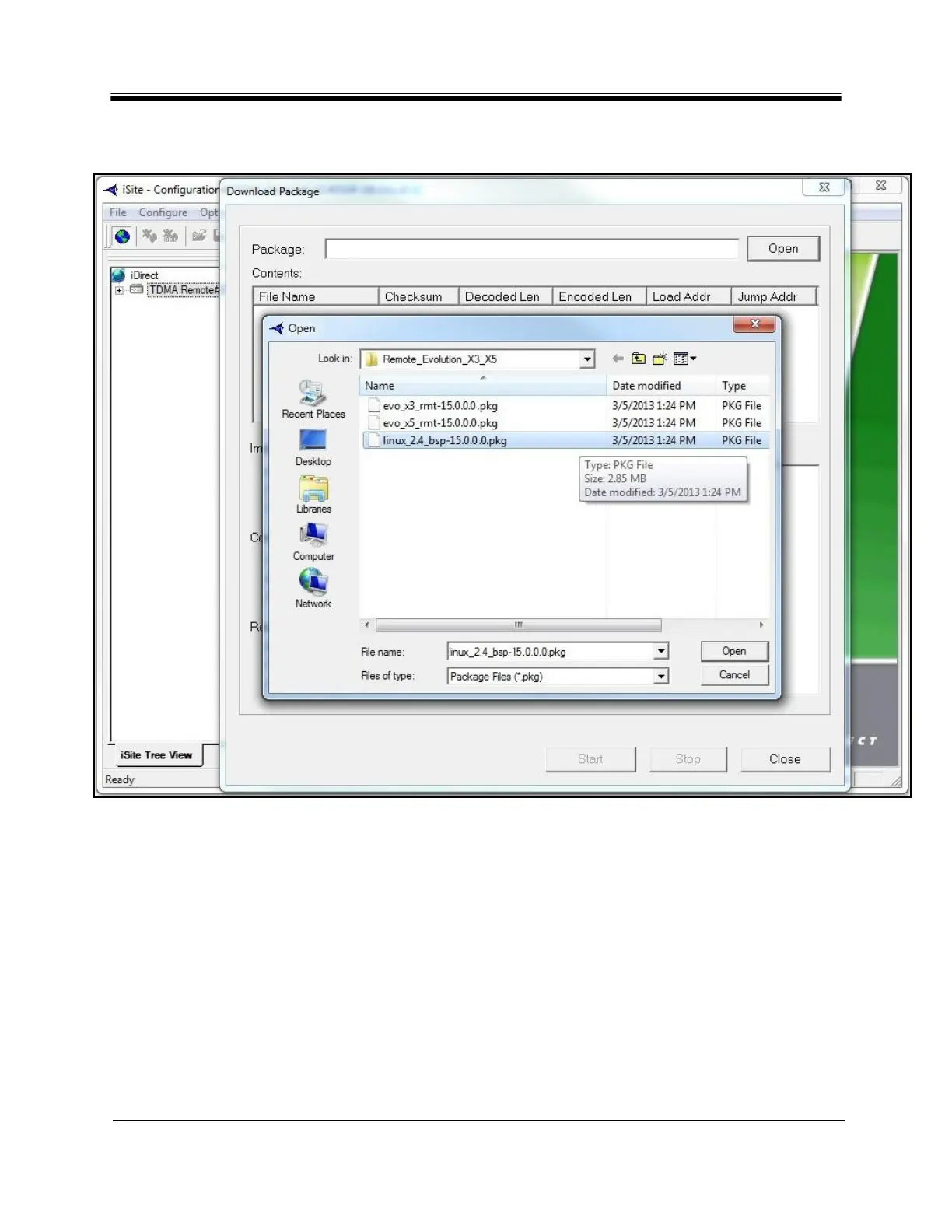

Figure 14. Selecting the BSP File

6. In the Down

load Package dialog box (Figure 15), select the following options:

• Don’t check versions

•

Download images only

• Don’t reset
