48 iDirect Satellite Router Installation and Commissioning Guide

iDX Release 3.3

Loading Packages with Web iSite

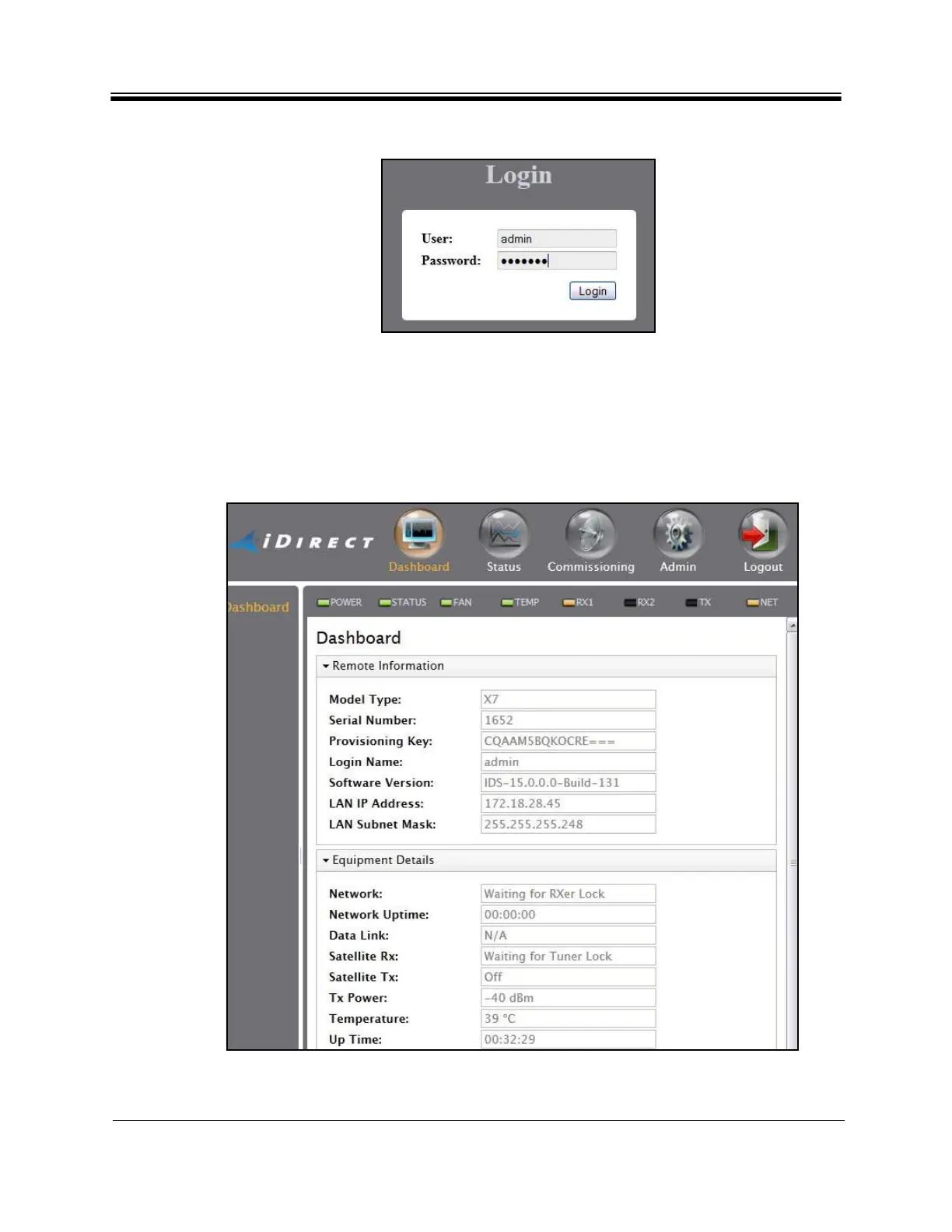

Figure 28. Web iSite Login Page

Note: The factory default admin password is iDirect. However

, after an options file

has been loaded and the Satellite Router has been reset, the password

changes to match the password in the options file.

After login, the Web iSite Dashboard appears with basic information about the Satellite

uter, such as the Model Type and Serial Number. Figure 29 shows a partial example of the

X7 Dashboard.

gure 29. Web iSite Dashboard Exam

ple: Evolution X7
