1. Introduction

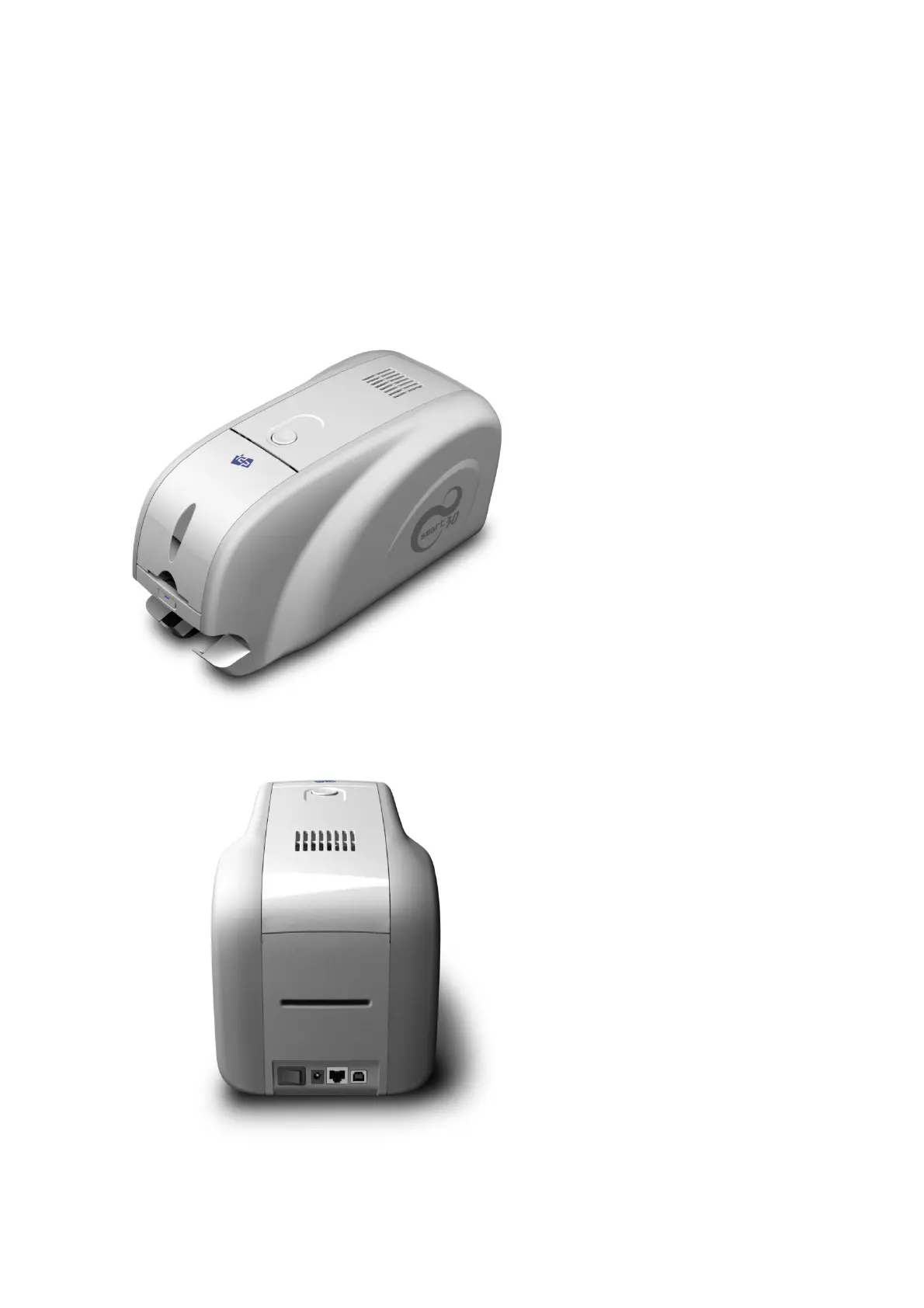

1.1 Printer outside features
1.1.1 SMART-30 outside feature.
For the user’s convenience, SMART-30 status can be seen through LED and the printer can be
controlled by a button. It takes a power via the 24V adaptor provided with the printer. Using USB
and Network port, it is communicated with the user’s PC
The following shows the outside functional features found on the printer.
There are five models in SMART-50 card printer series such as SMART-50S, SMART-50D, SMART-
50L.
①
②
③
④
⑤
① Top cover open button
② External contactless
Smartcard encoding
position
③ Input hopper
④ LED buttons
⑤ Dividing Stacker
Pic.
1
SMART
-
30
front features
⑥
⑦
⑧ ⑨
⑥ Backside card outlet
⑦ Power switch
⑧ 24V power connector
⑨ Network port
In case there is no network
option, it is closed.
⑩ USB port
⑩
Pic.
2
SMART
-
30
back
features
