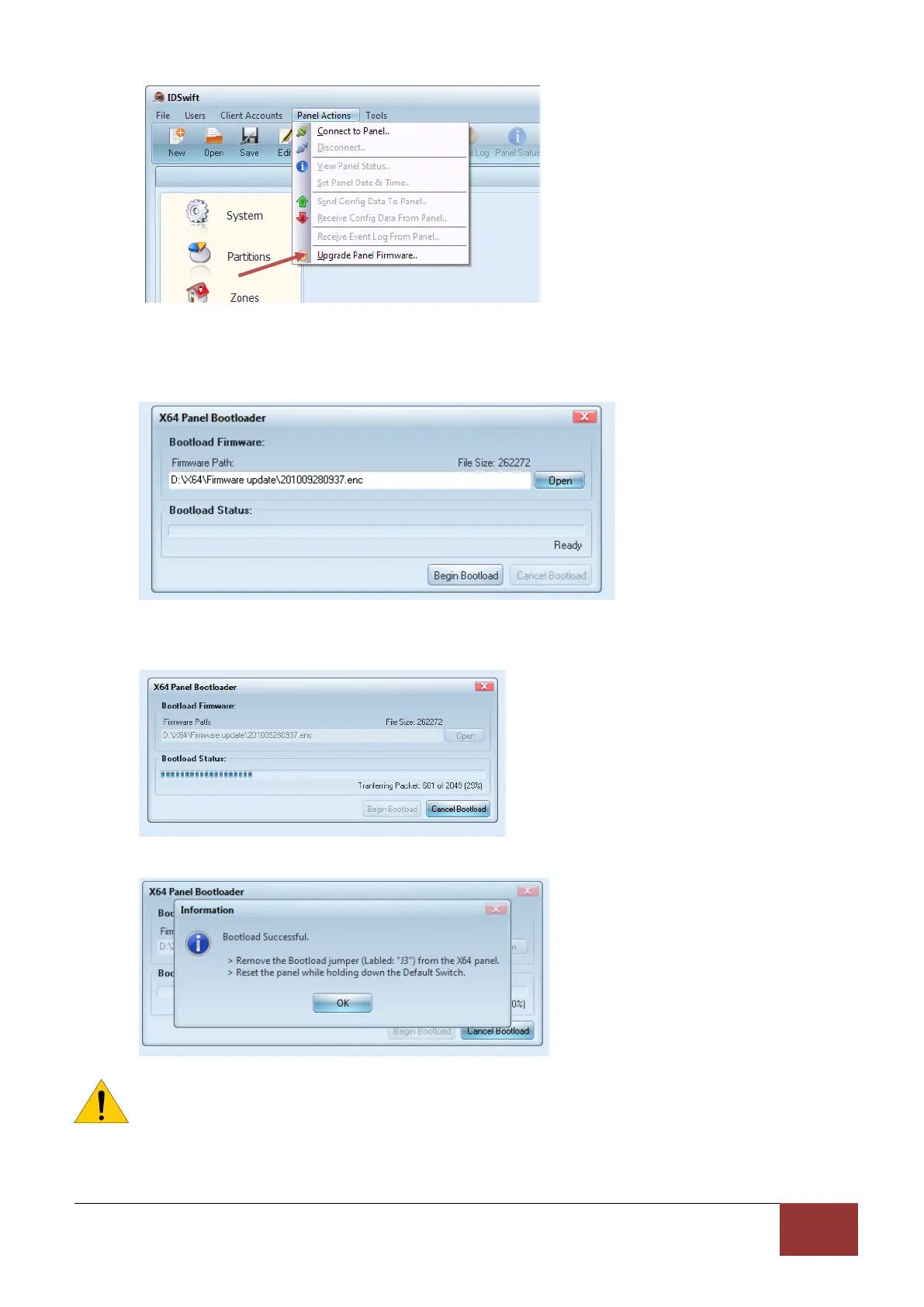

6. Click on panel actions and then firmware upgrade

7. Navigate to where the firmware file is located

8. Power up the panel and click on the Begin “Bootload” button and the progress bar will indicate

progress of the upgrade.

9. When complete and successful, read and follow the instructions.

Note: The alarm panel must be defaulted after the upgrade.
