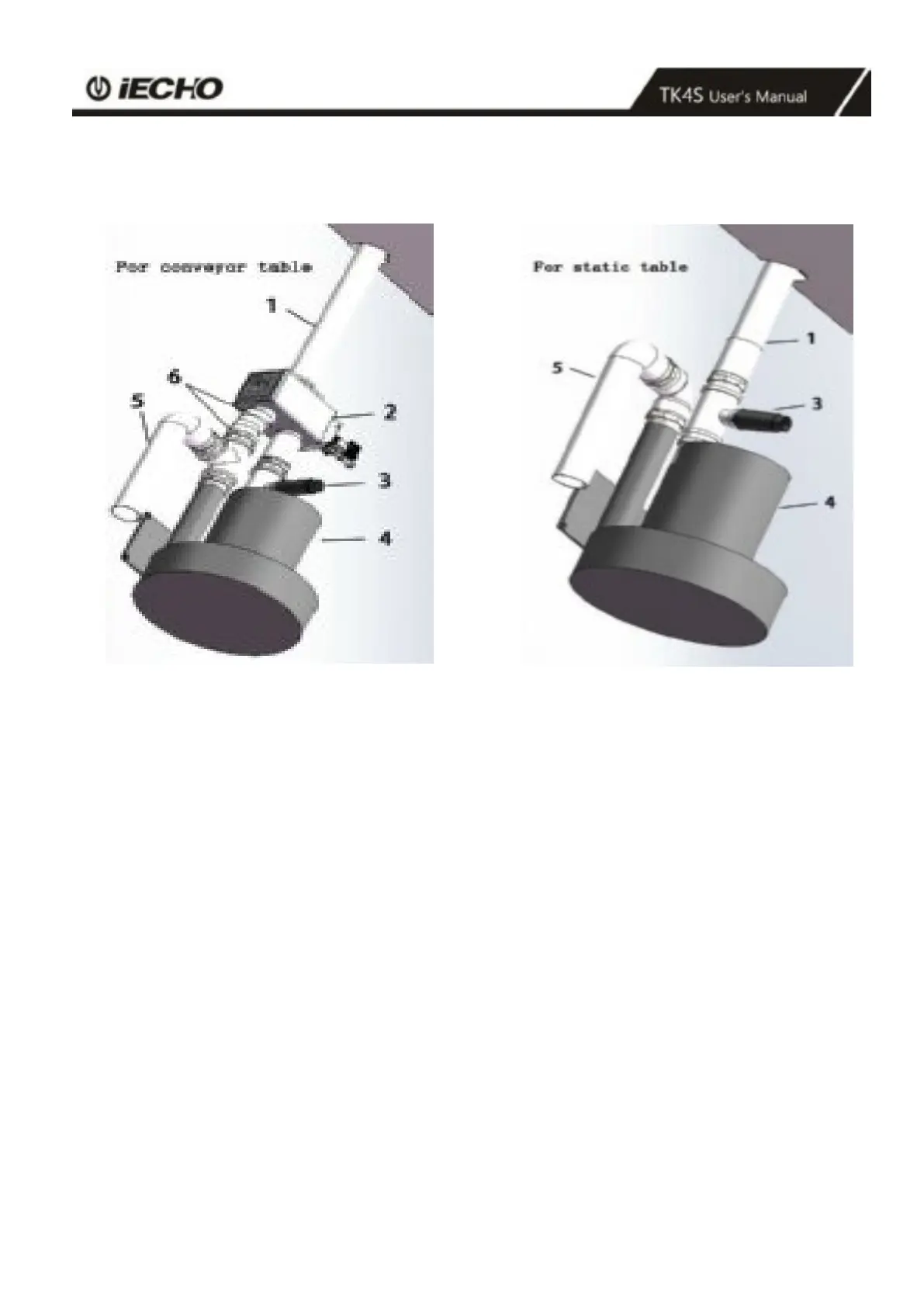

Attaching the vacuum pipe to the vacuum pump system
5.5/7.5 KW vacuum pump with changeover valve 5.5/7.5KW vacuum pump
A Set up the vacuum pump.
B Fit the silencer.
C Connect the vacuum pump to the cutter using the hose.
D Turn the piping outwards
1
Hose to cutter
4
Vacuum pump
2
Changeover valve
5
Silencer
3
pressure release valve
6
Clamp
