IER 560 COMBO PRINTER
User Guide
Page 23
N0C902A Rev. 2
Sept. 14, 2010
Ce document est la propriété d’IER et ne doit pas être reproduit ou communiqué sans autorisation écrite.
This document is the property of IER and may not be reproduced or communicated
without prior written authorization
4
5
3
6
11
10
9
8
7
1
2
1 – Transport handle
2 – Locking latch
3 – Upper channel: U
4 – Mid-upper channel: MU
5 – Mid-lower channel: ML
6 – Lower channel: L
7 – Power connector
8 – USB port
9 – RJ45 Ethernet port
10 – RS232 serial port (BP)
11 – RS232 serial port (BT)

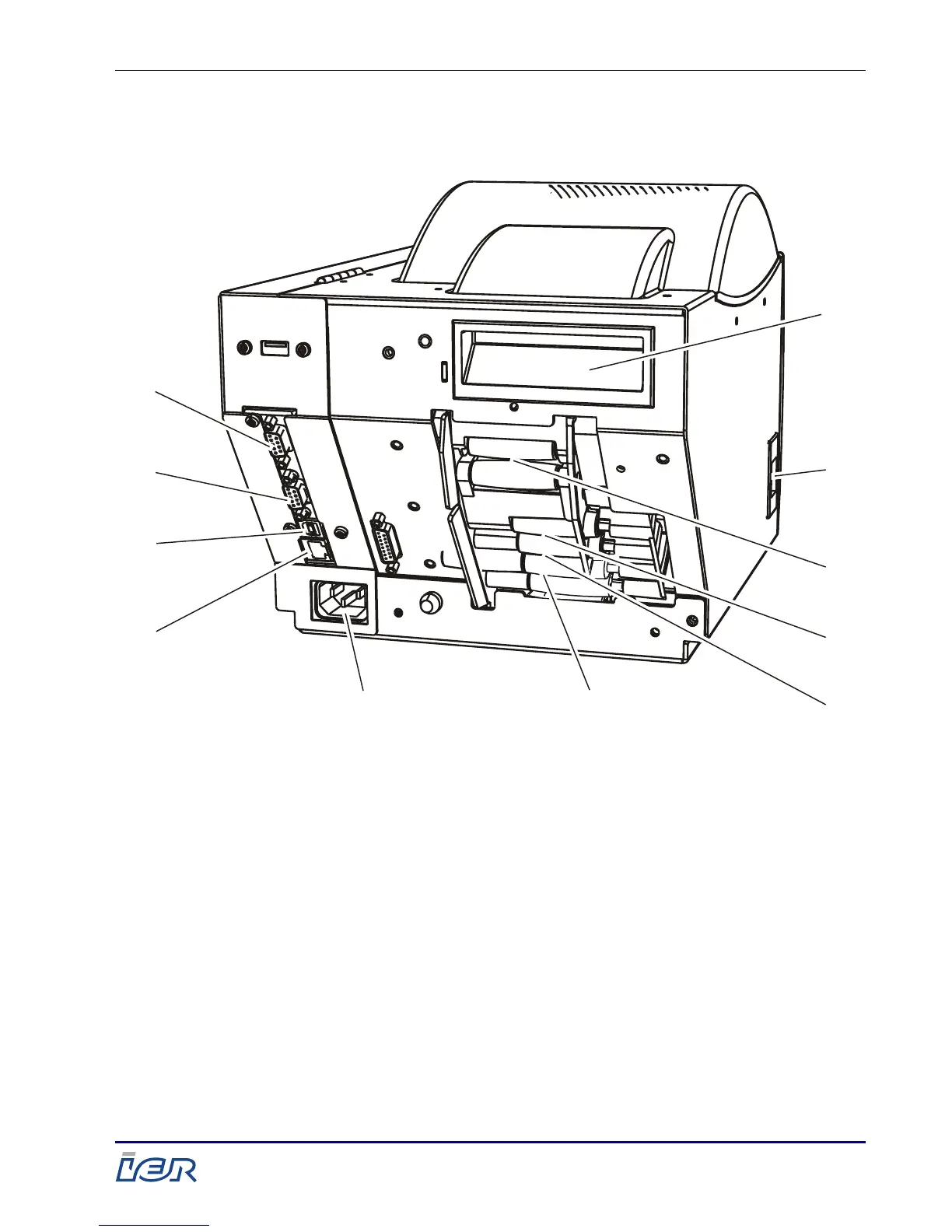

Figure 1.9
Rear View of Printer
