• [Hnc] = hysteresis function / normally closed
• [Fno] = window function / normally open
• [Fnc] = window function / normally closed
See also:
SP1/rP1 ─ set point/reset point OUT1 (Ò/15)
FH1/FL1 ─ min/max switching limits for window function (Ò/16)
8.4.4 dS1/dr1 ─ switching delay/switch-off delay for OUT1
Value: 0.0...50.0 s (0.0 = delay time is not active)
8.4.5 ScAL ─ scaling of the displayed value
The setting acts like a multiplier for the parameters [C.ASP]/[C.AEP].
• [OFF] = measured current value is not scaled.
• [cccc] = scaling without decimal place (x 0001).
• [ccc.c] = scaling with 1 decimal place (x 000.1).
• [cc.cc] = scaling with 2 decimal places (x 00.01).
• [c.ccc] = scaling with 3 decimal places (x 0.001).

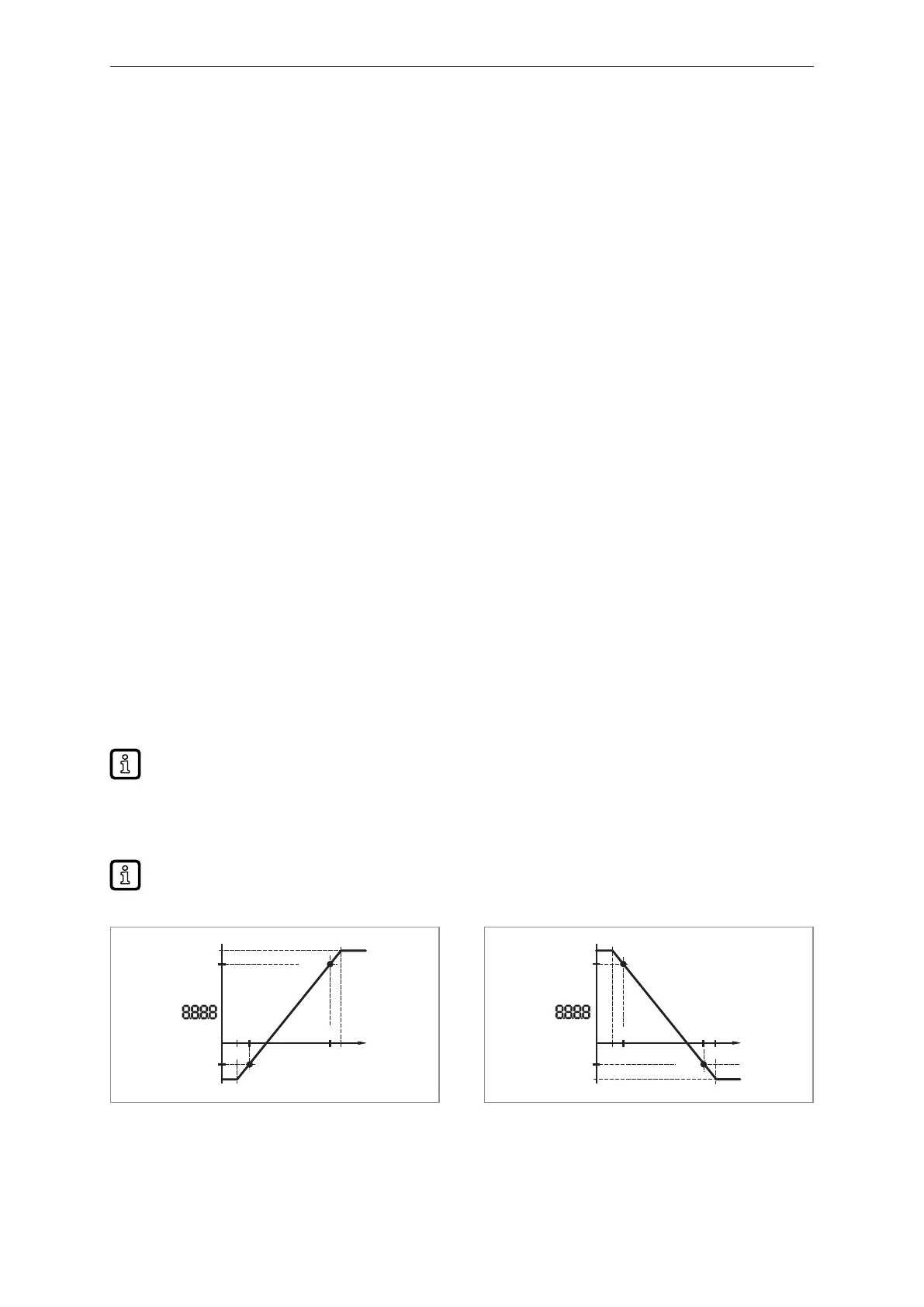

8.4.6 C.ASP/C.AEP - customer-specific analogue start/end point
Settings for scaled display values.
The parameters are only displayed if [ScAL] is set to [cccc], [ccc.c], [cc.cc] or
[c.ccc].
C.ASP value: -746 ... 9745 corresponds to 4 mA.
C.AEP value: -366 ... 9366 corresponds to 20 mA.
If a scaling is set via [ScAL], the C.AEP value also has to be adapted accordingly:
With [ScAL] = [ccc.c] → C.AEP value x 10
With [ScAL] = [cc.cc] → C.AEP value x 100
With [ScAL] = [c.ccc] → C.AEP value x 1000
All displayed current values are interpolated based on a 2-point approximation ([SP1]+[rP1],
[FH1]+[FL1], [cFH]+[cFL], [Lo]+[Hi]).
IO-Link process data and parameters are not affected by the scaling.
~ 9999
C.AEP
~ 999
C.ASP
[mA]4 20
21
3.6
9366
-746
~ 9999
C.ASP
~ 999
C.AEP
[mA]4 20
21
3.6
9745
-366
