8 1. Product Overview

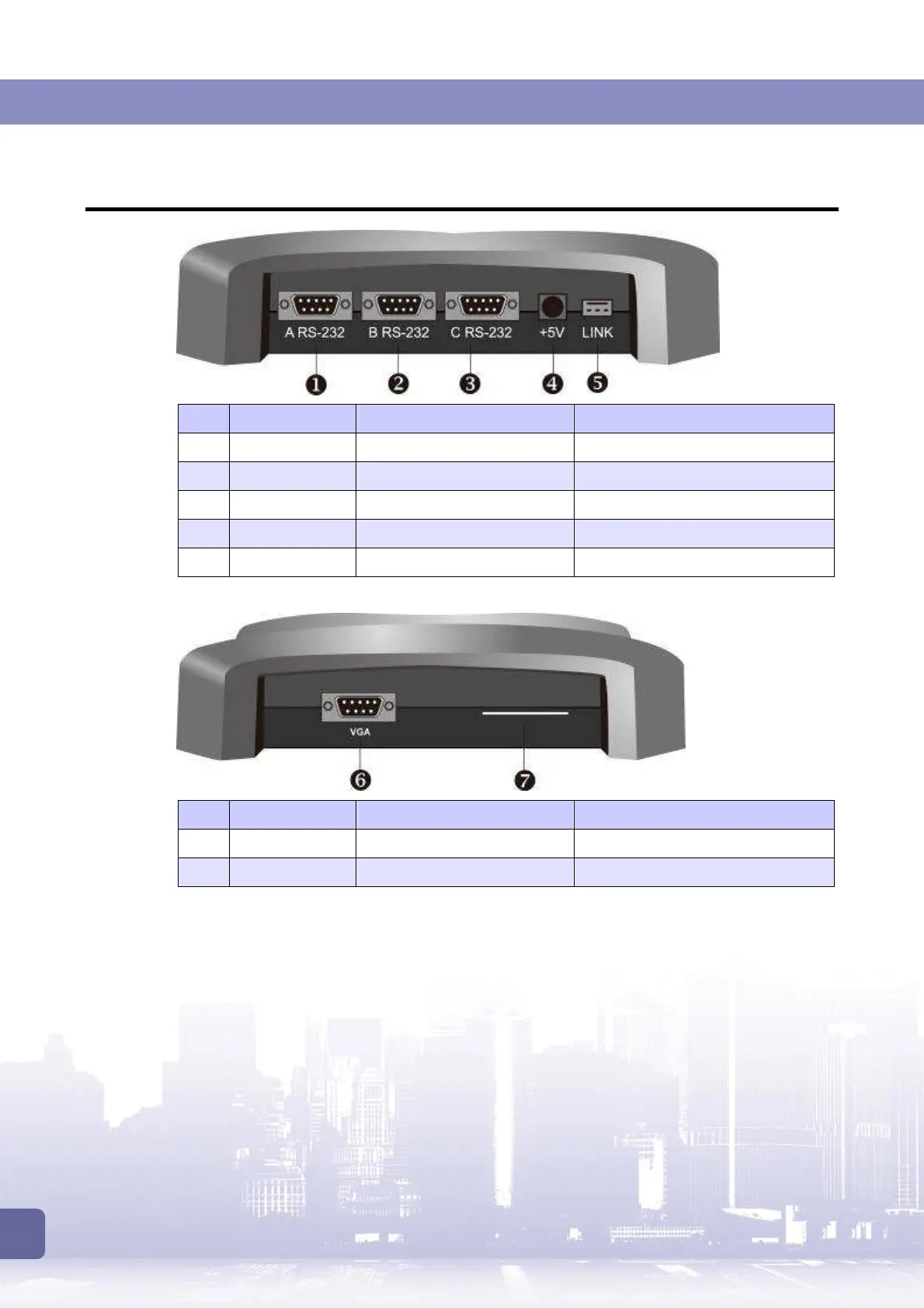

1.3 PC Board
NO. Connector Connect to… Cables to be used
1 A RS-232 Bill Acceptor RS-232 cable (not provided)
2 B RS-232 Second screen PC board
3 C RS-232 Touch Panel
4 +5V OUTPUT +5V Power
5 LINK Control Box’s RS 485 Port 2 CO3 Signal Cord
NO. Connector Connect to… Cables to be used
6 VGA First Screen VGA cable (not provided)
7 36 Pin connector
N/a
