IGS Diamond Progressive - 3 Installation - Slave Machine; Connection Diagram

3. Installation – Slave Machine 13
3. Installation – Slave Machine

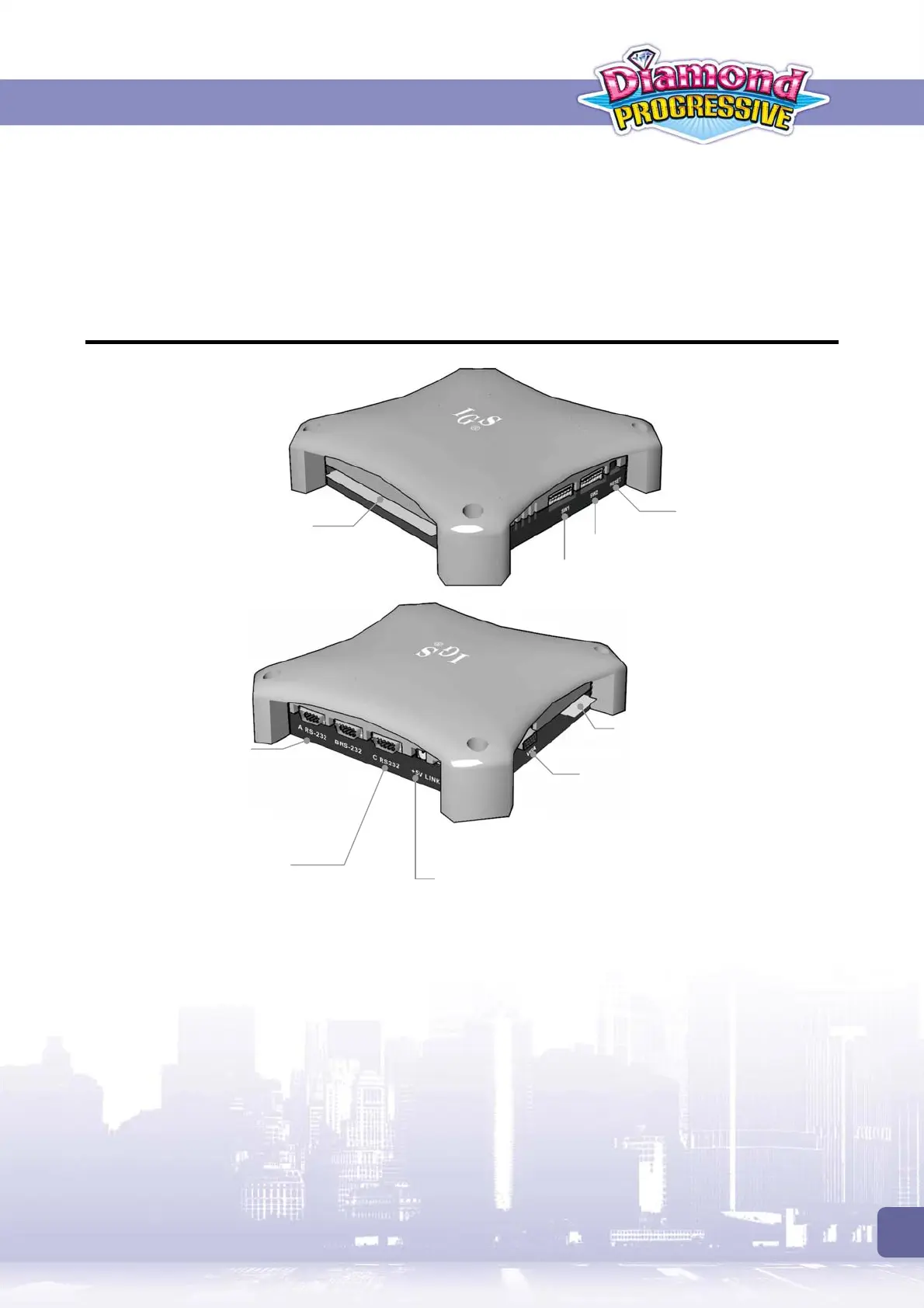

3.1 Connection Diagram
36-
Pin Connector
DIP SW1
DIP SW2
Reset
A RS-232
Connects to optional Citizen
printer/ticket dispenser.
* Use Belkin #F2L044 (serial
printer cable/null modem) for
Citizen printer.
C RS-232
Connects to Micro Touch
compatible touch screen
+5V
+5V Power output
VGA port
Connects to screen
10-Pin Connector
Refer to the diagram above to connect the PC board to related devices.
