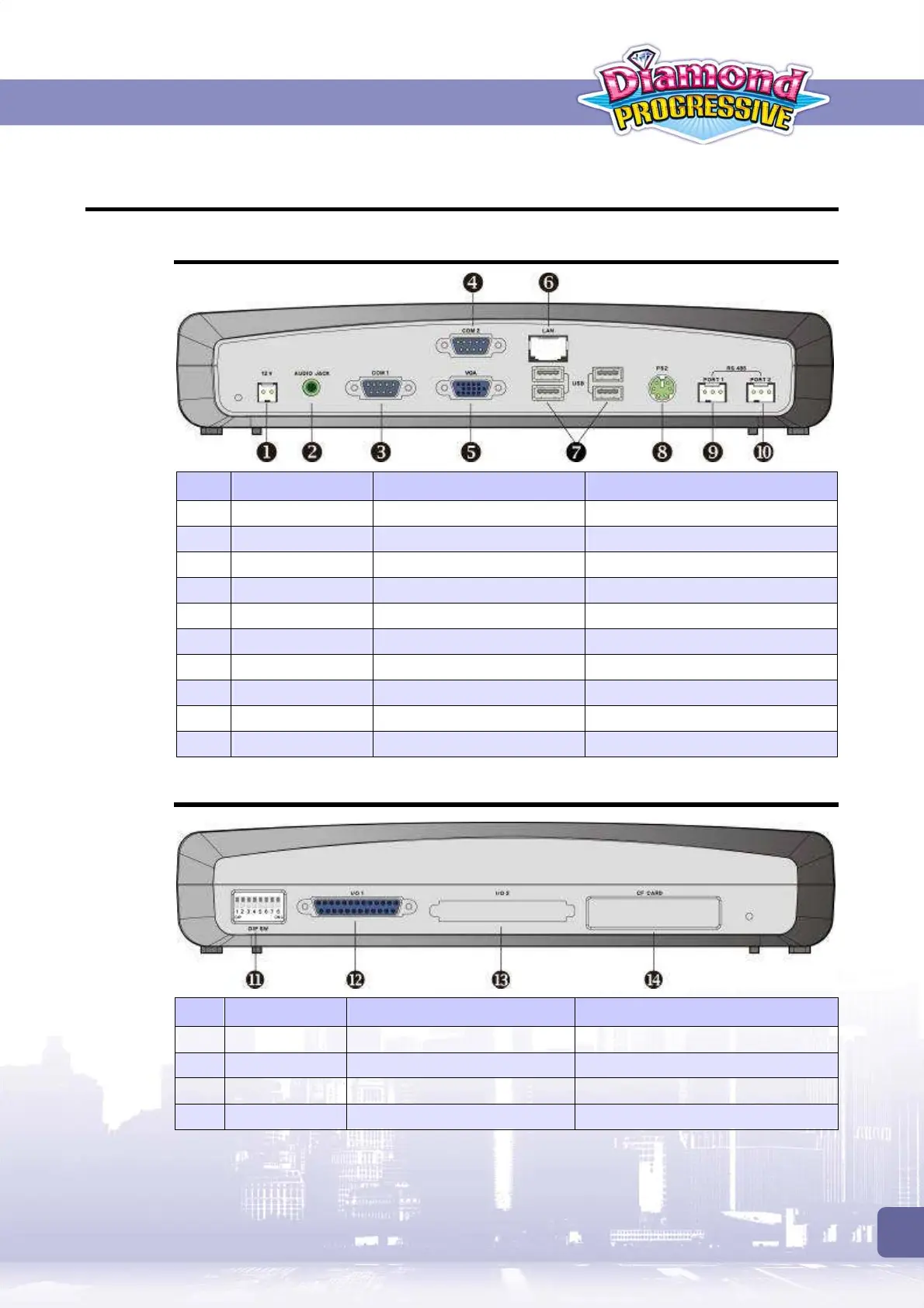

1. Product Overview 7
1.2 Control Box
1.2.1 Rear Panel
NO. Connector Connect to… Cable to be used
1 12V Power supply PW02 2P Power Cable
2 AUDIO JACK Display’s audio connector CO7 Audio Cable
3 COM1 Reserved
4 COM2 Reserved
5 VGA Display’s audio connector CO5 VGA Cable
6 LAN PC’s LAN port CO4 Network Cable
7 USB X4 Reserved
8 PS2 Reserved
9 RS 485 PORT 1 Reserved
10 RS 485 PORT 2 PC board’s Link connector CO1 Signal Cord
1.2.2 Side Panel
NO. Connector Connect to…/Function Cable to be used
11 DIP SW For adjustment use N/A
12 I/O 1 Display’s lamp connector CO6 Lamp Cable
13 I/O 2 Reserved N/A
14 CF Card slot CF Card N/A
