Ikco XU7JPL3 User Manual

Samand
6

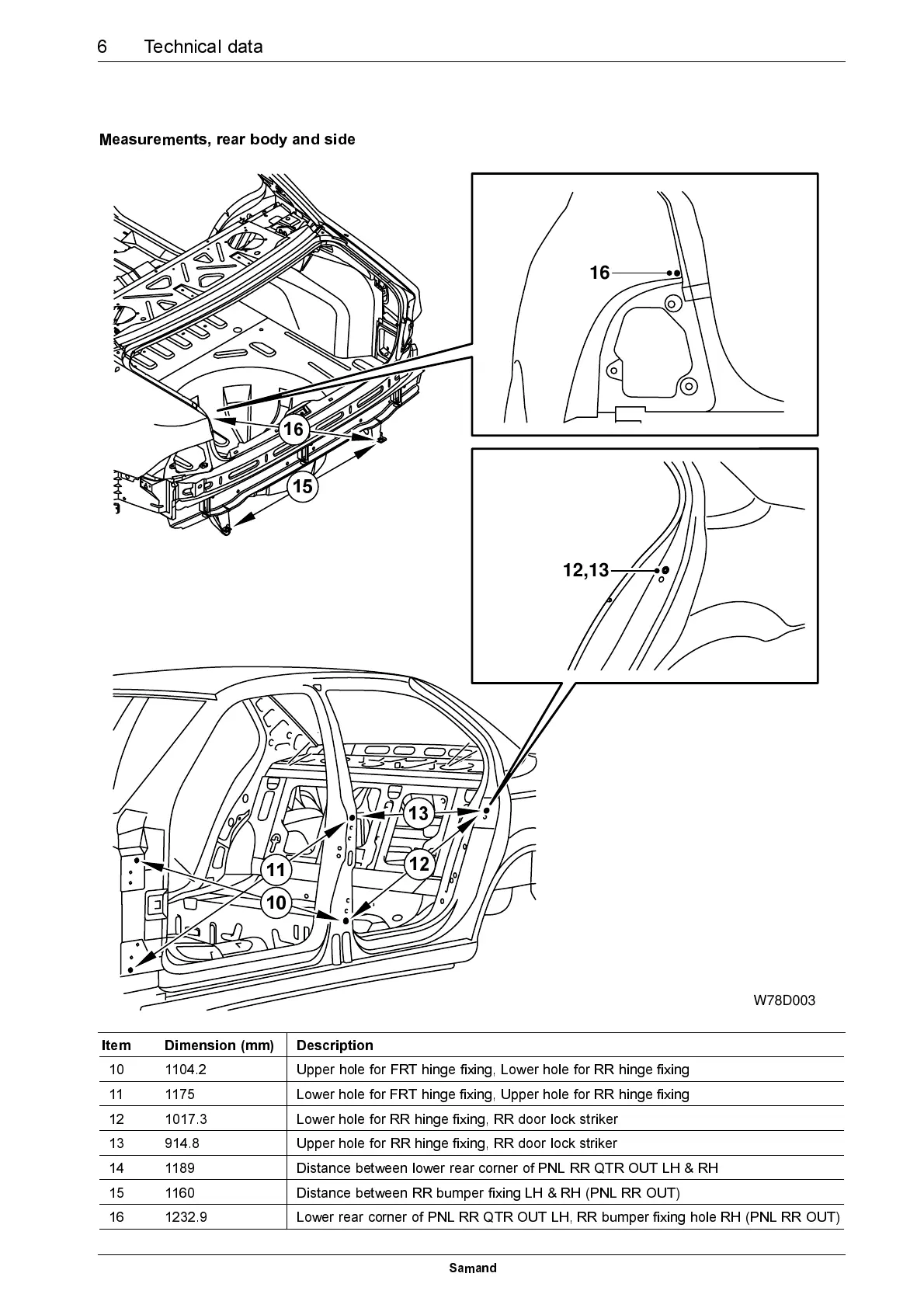

Technical data
Measurements, rear body and side
W78D003
16
12,13
15
16
13
11
12
10
Item Dimension (mm) Description
10 1104.2 Upper hole for FRT hinge fixing, Lower hole for RR hinge fixing
11 1175 Lower hole for FRT hinge fixing, Upper hole for RR hinge fixing
12 1017.3 Lower hole for RR hinge fixing, RR door lock striker
13 914.8 Upper hole for RR hinge fixing, RR door lock striker
14 1189 Distance between lower rear corner of PNL RR QTR OUT LH & RH
15 1160 Distance between RR bumper fixing LH & RH (PNL RR OUT)
16 1232.9 Lower rear corner of PNL RR QTR OUT LH, RR bumper fixing hole RH (PNL RR OUT)
