Ikco XU7JPL3 User Manual

167
Samand
Adjustment and replacement
W78R011
3
3
3
3
3
4
5
3
W78R012
8
7

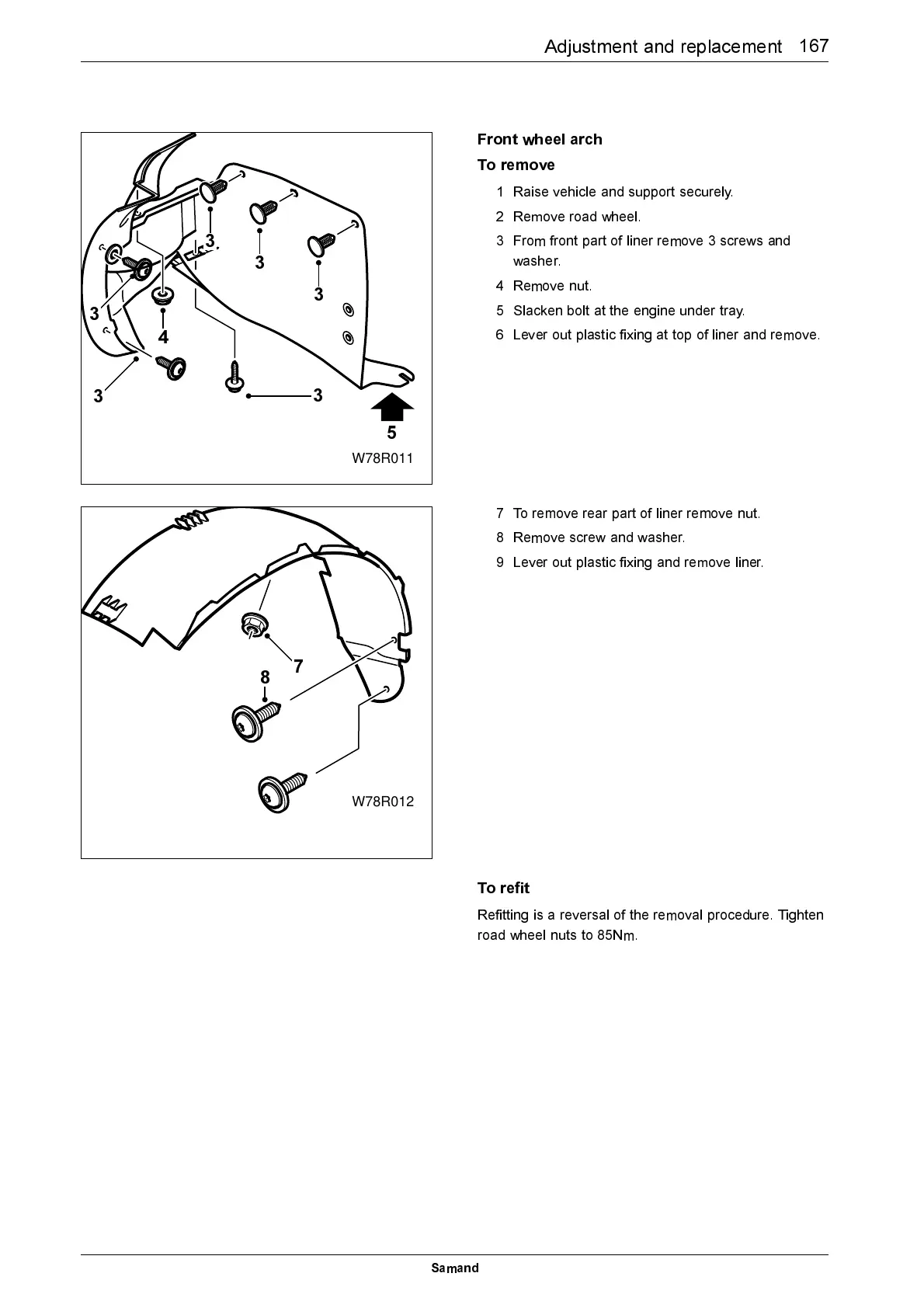

Front wheel arch
To remove
1 Raise vehicle and support securely.
2 Remove road wheel.
3 From front part of liner remove 3 screws and
washer.
4 Remove nut.
5 Slacken bolt at the engine under tray.
6 Lever out plastic fixing at top of liner and remove.
7 To remove rear part of liner remove nut.
8 Remove screw and washer.
9 Lever out plastic fixing and remove liner.
To refit
Refitting is a reversal of the removal procedure. Tighten
road wheel nuts to 85Nm.
