Page #52 background imageLoading...
Page #52 background image
W78R141
2
5
30
1
W78R142
2
W78R143
3
Samand
50

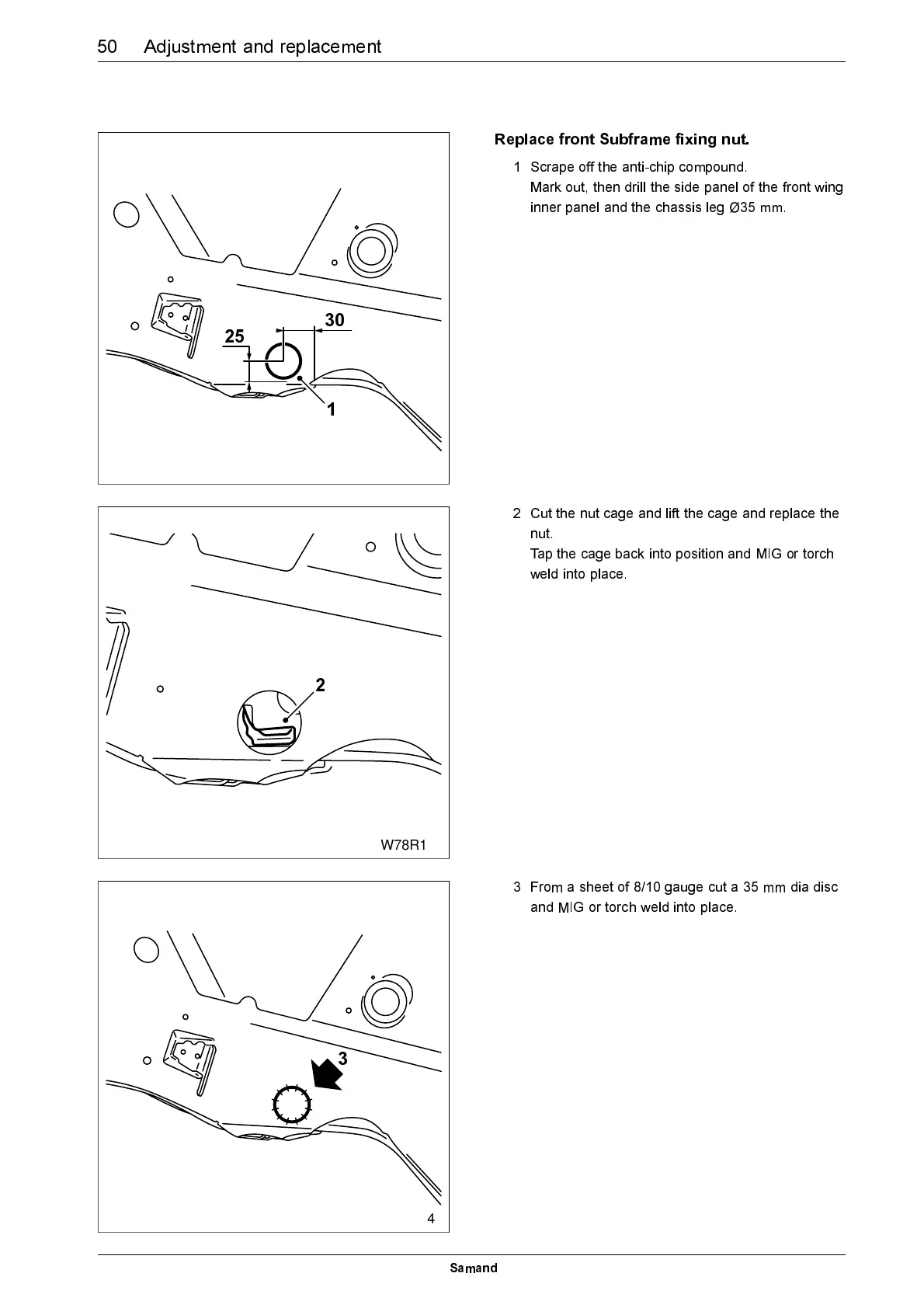

Adjustment and replacement
Replace front Subframe fixing nut.
1 Scrape off the anti-chip compound.
Mark out, then drill the side panel of the front wing
inner panel and the chassis leg Ø35 mm.
2 Cut the nut cage and lift the cage and replace the
nut.
Tap the cage back into position and MIG or torch
weld into place.
3 From a sheet of 8/10 gauge cut a 35 mm dia disc
and MIG or torch weld into place.
