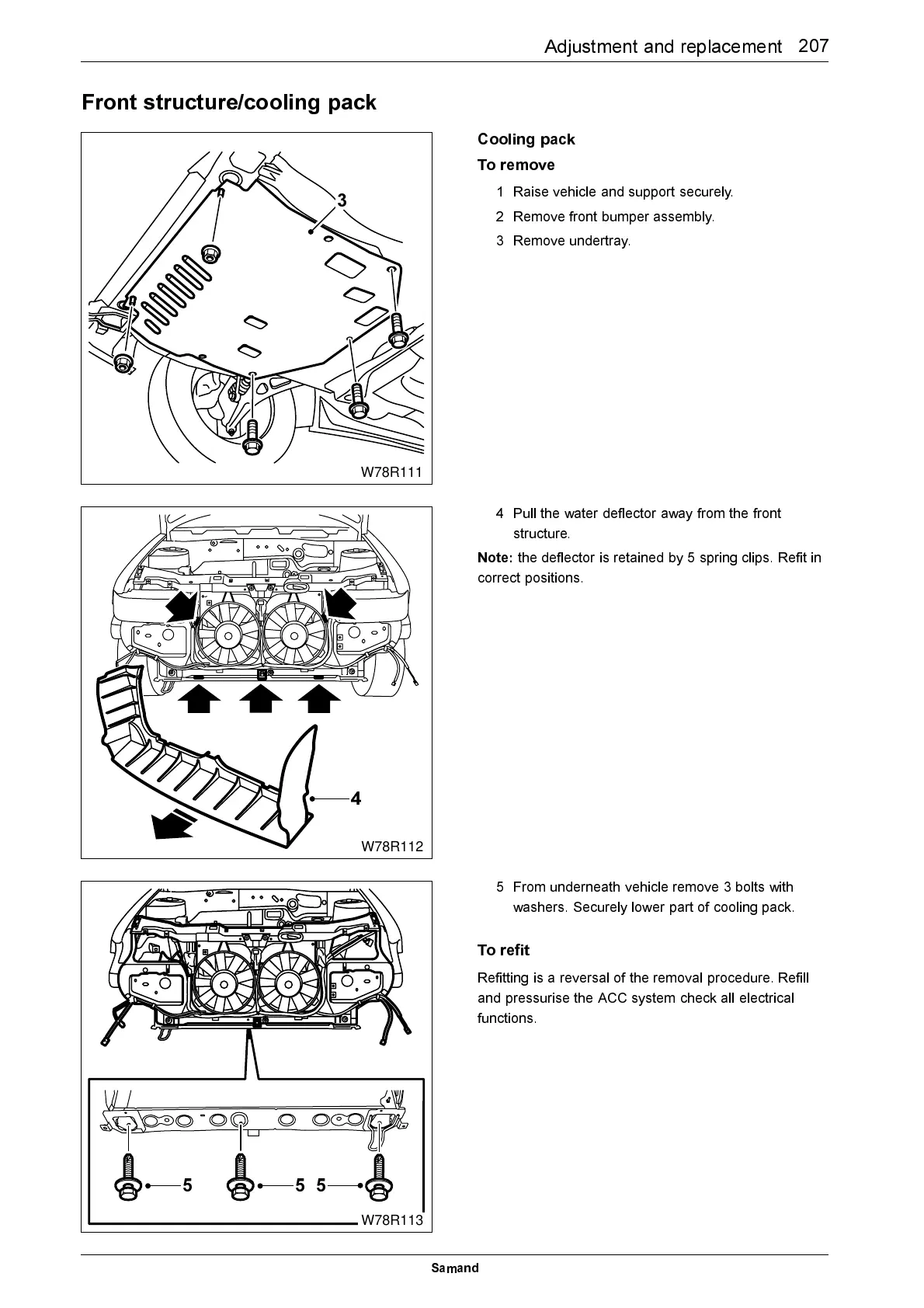

Front structure/cooling pack
Cooling pack
To remove
1 Raise vehicle and support securely.
2 Remove front bumper assembly.
3 Remove undertray.
4 Pull the water deflector away from the front
structure.
Note:
the deflector is retained by 5 spring clips. Refit in
correct positions.
5 From underneath vehicle remove 3 bolts with
washers. Securely lower part of cooling pack.
To refit
Refitting is a reversal of the removal procedure. Refill
and pressurise the ACC system check all electrical
functions.
