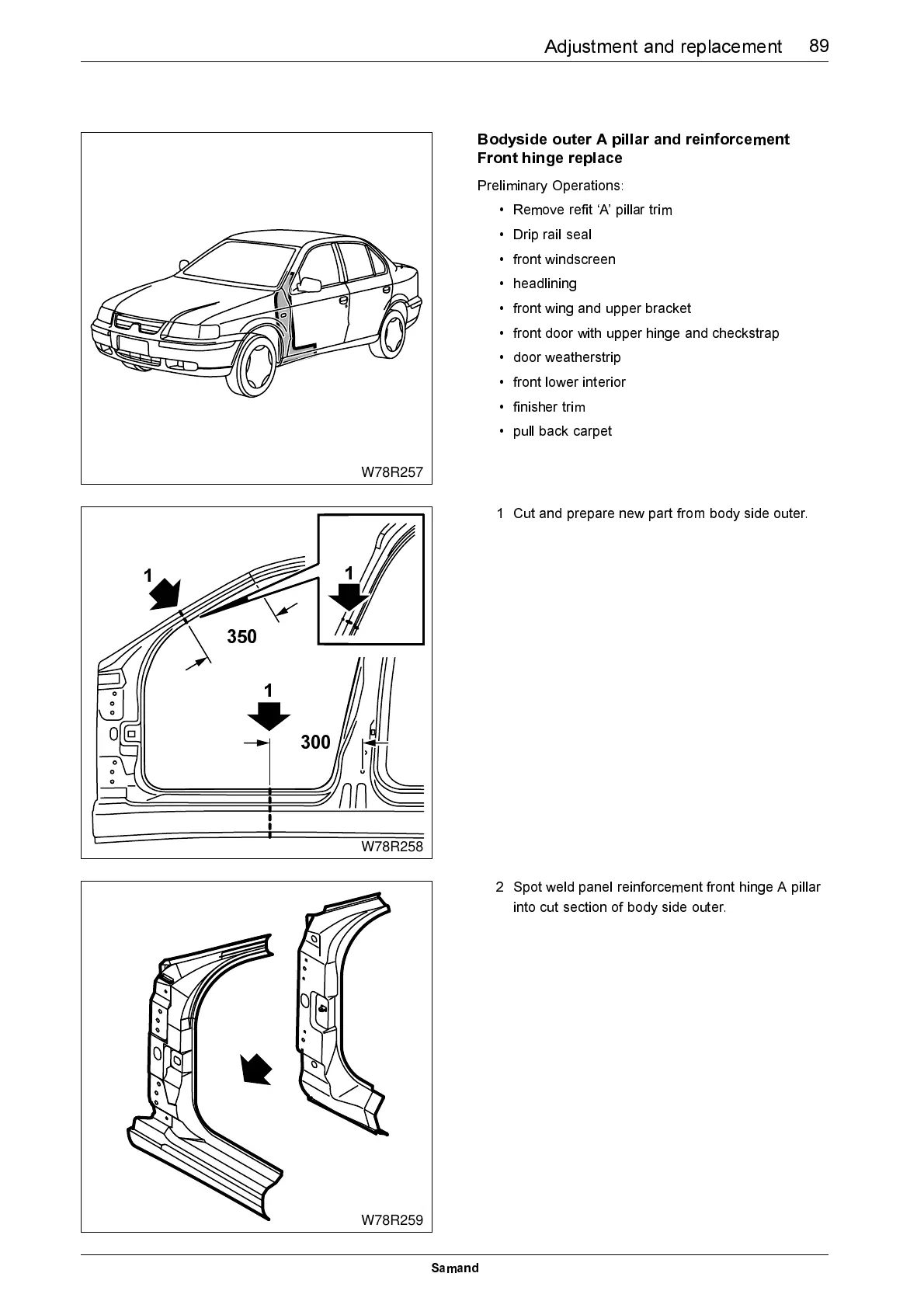

89
Samand
Adjustment
and
replacement
W78R257
1
300
W78R258
1
1
350
W78R259
Bodyside
outer
A
pillar
and
reinforcement
Front
hinge
replace
Preliminary
Operations:
Remove
refit
A
pillar
trim
Drip
rail
seal
front
windscreen
headlining
front
wing
and
upper
bracket
front
door
with
upper
hinge
and
checkstrap
door
weatherstrip
front
lower
interior
finisher
trim
pull
back
carpet
1
Cut
and
prepare
new
part
from
body
side
outer
.
2
Spot
weld
panel
reinforcement
front
hinge
A
pillar
into
cut
section
of
body
side
outer
.
90
92
