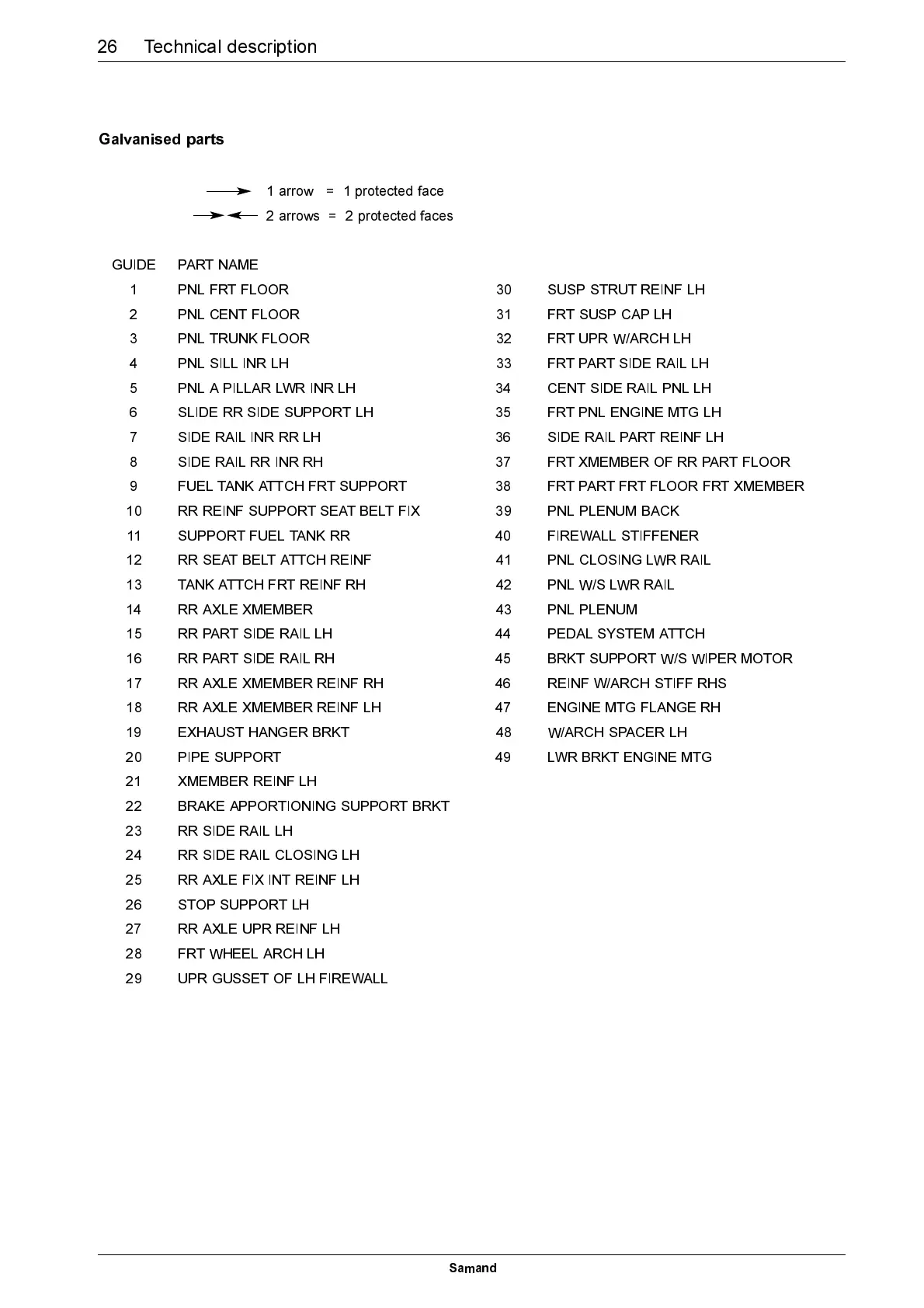

Technical description
Galvanised parts
1 arrow = 1 protected face
2 arrows = 2 protected faces
GUIDE PART NAME
1 PNL FRT FLOOR 30 SUSP STRUT REINF LH
2 PNL CENT FLOOR 31 FRT SUSP CAP LH
3 PNL TRUNK FLOOR 32 FRT UPR W/ARCH LH
4 PNL SILL INR LH 33 FRT PART SIDE RAIL LH
5 PNL A PILLAR LWR INR LH 34 CENT SIDE RAIL PNL LH
6 SLIDE RR SIDE SUPPORT LH 35 FRT PNL ENGINE MTG LH
7 SIDE RAIL INR RR LH 36 SIDE RAIL PART REINF LH
8 SIDE RAIL RR INR RH 37 FRT XMEMBER OF RR PART FLOOR
9 FUEL TANK ATTCH FRT SUPPORT 38 FRT PART FRT FLOOR FRT XMEMBER
10 RR REINF SUPPORT SEAT BELT FIX 39 PNL PLENUM BACK
11 SUPPORT FUEL TANK RR 40 FIREWALL STIFFENER
12 RR SEAT BELT ATTCH REINF 41 PNL CLOSING LWR RAIL
13 TANK ATTCH FRT REINF RH 42 PNL W/S LWR RAIL
14 RR AXLE XMEMBER 43 PNL PLENUM
15 RR PART SIDE RAIL LH 44 PEDAL SYSTEM ATTCH
16 RR PART SIDE RAIL RH 45 BRKT SUPPORT W/S WIPER MOTOR
17 RR AXLE XMEMBER REINF RH 46 REINF W/ARCH STIFF RHS
18 RR AXLE XMEMBER REINF LH 47 ENGINE MTG FLANGE RH
19 EXHAUST HANGER BRKT 48 W/ARCH SPACER LH
20 PIPE SUPPORT 49 LWR BRKT ENGINE MTG
21 XMEMBER REINF LH
22 BRAKE APPORTIONING SUPPORT BRKT
23 RR SIDE RAIL LH
24 RR SIDE RAIL CLOSING LH
25 RR AXLE FIX INT REINF LH
26 STOP SUPPORT LH
27 RR AXLE UPR REINF LH
28 FRT WHEEL ARCH LH
29 UPR GUSSET OF LH FIREWALL
