69
Samand
Adjustment and replacement
W78R196
1 3
13
W78R197
1 5
14
15
15
1 6
17
W78R198
16

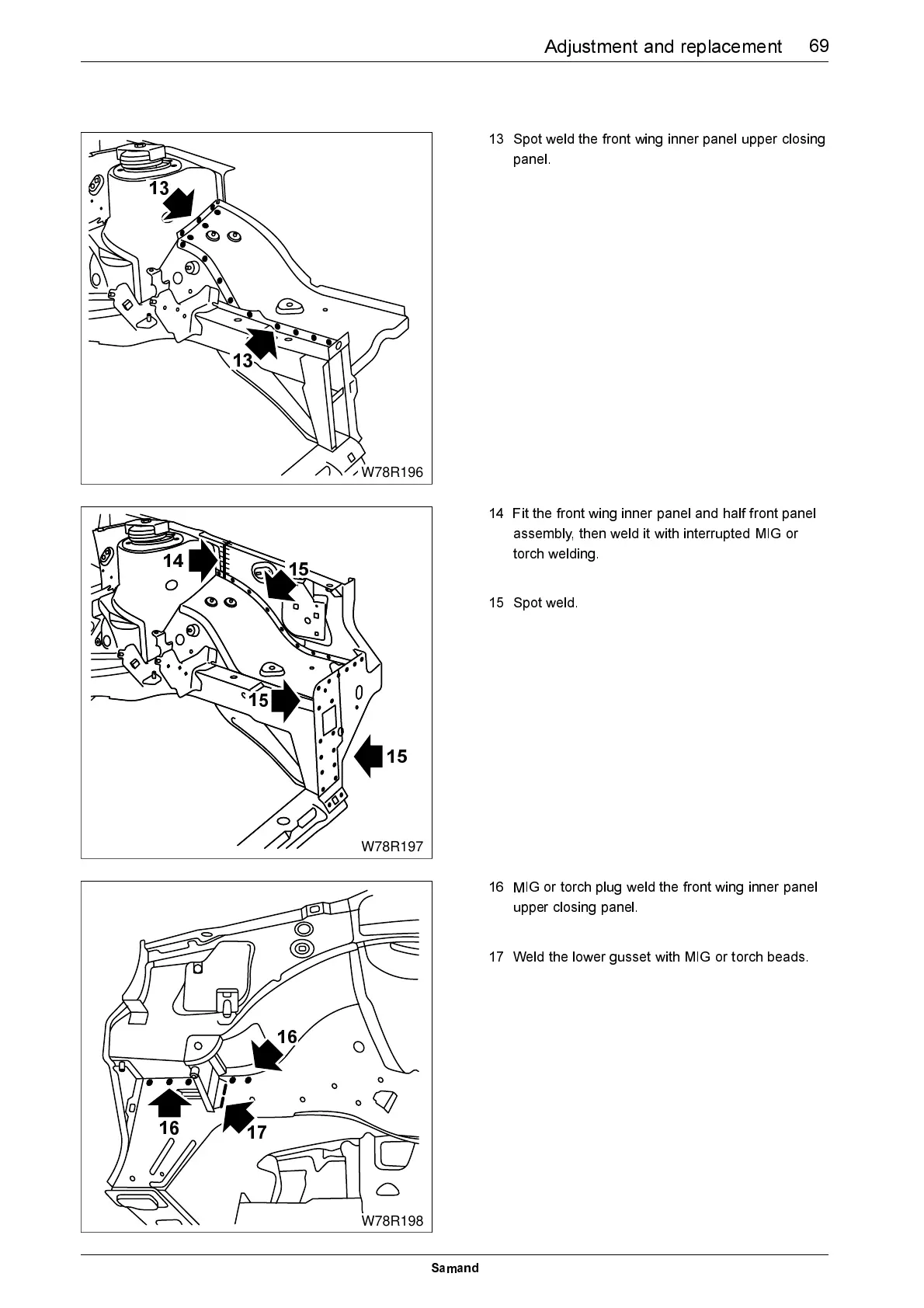

13 Spot weld the front wing inner panel upper closing
panel.
14 Fit the front wing inner panel and half front panel
assembly, then weld it with interrupted MIG or
torch welding.
15 Spot weld.
16 MIG or torch plug weld the front wing inner panel
upper closing panel.
17 Weld the lower gusset with MIG or torch beads.
