Ikco XU7JPL3 User Manual

4
5
W78R240
6
7
7
6
W78R241
W78R242
8
Samand
84

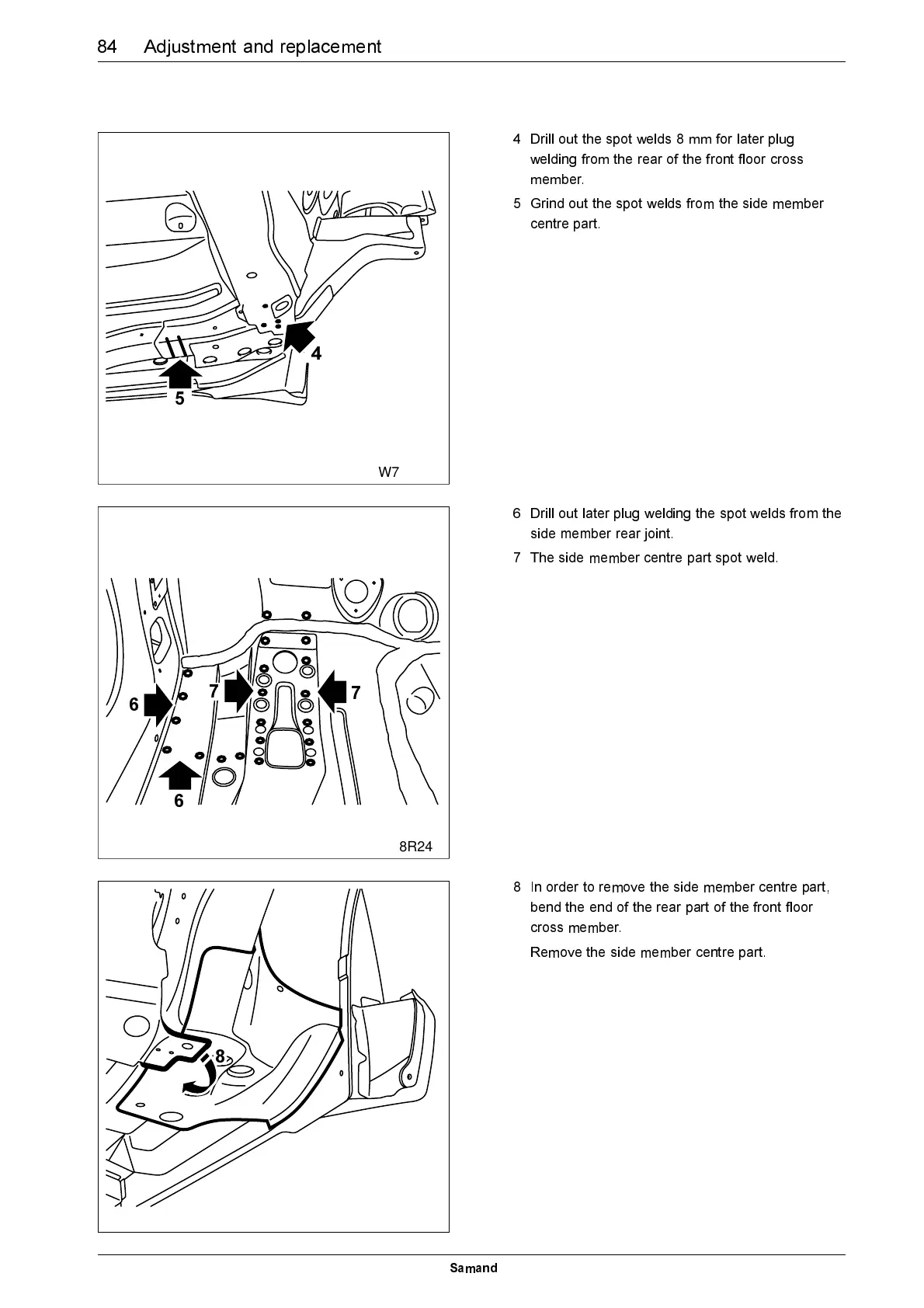

Adjustment and replacement
4 Drill out the spot welds 8 mm for later plug
welding from the rear of the front floor cross
member.
5 Grind out the spot welds from the side member
centre part.
6 Drill out later plug welding the spot welds from the
side member rear joint.
7 The side member centre part spot weld.
8 In order to remove the side member centre part,
bend the end of the rear part of the front floor
cross member.
Remove the side member centre part.
