Measurement with ICP
TM
-, DELTATRON®-, PIEZOTRON®-sensors
Parameter
Value typ.
min. / max.
Remarks
Max. input voltage
<±40 V
at BNC input
Input impedance
0.5 MΩ
6.6 MΩ
>490 kΩ
>5 MΩ
depending on input range of the
measurement inputs used
1
High-pass cutoff frequency
-3 dB, depending on selected input
range
2, 3
imc CRONOScompact (CRC), C-SERIES
UNI2-8, DCB2-8, LV3-8
0.40 Hz
including digital high pass
imc CRONOSflex (CRFX):
UNI2-8, DCB2-8, LV3-8
0.12 Hz
including digital high pass
All further channel types:
Amp input impedance:
20 MΩ
10 MΩ
1 MΩ
0.10 Hz
0.14 Hz
0.75 Hz
no digital high pass applied
Constant current feed
4.2 mA
±10%
Voltage swing
24 V
>22 V
Current source impedance
340 kΩ
>100 kΩ
in parallel with input impedance of the
amplifier
1
Resulting impedance of 10 MΩ (ICP plug) and amplifier input impedance (depending on selected range)
2
Resulting cut-off frequency of combined analog and digital high pass (depending on input impedance / selected range)
Digital high pass for complete removal of residual offset: supported for selected amplifier types
3
The specifications apply to the extension plug as of version 3, delivery date from October 2017.
Find here the description of the ACC/DSUBM-ICP2I-BNC.

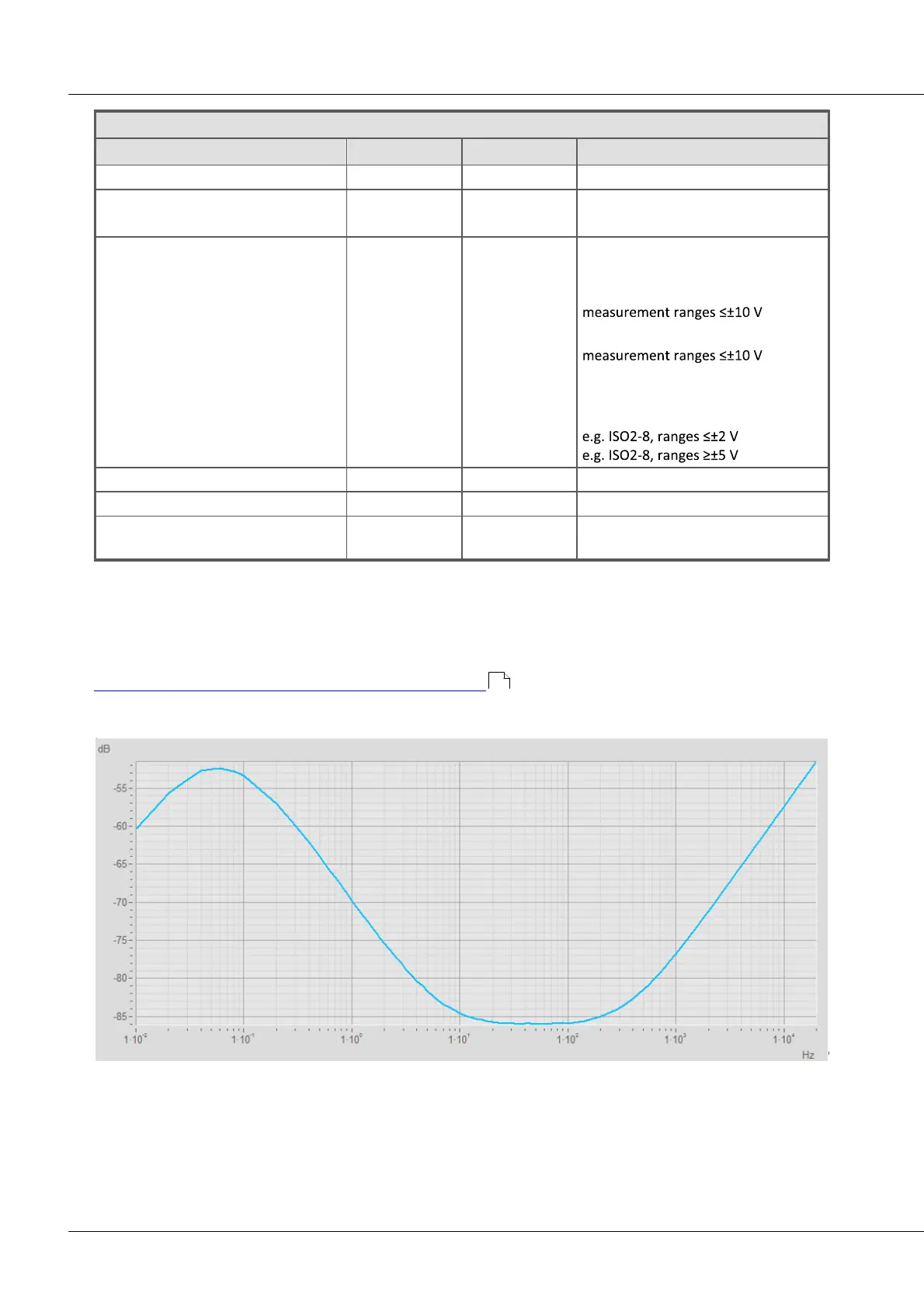

Common mode rejection ratio (CMRR)
(in conjunction with amplifier UNI2-8, range 10 mV, with digital high pass activated)
This typical plot refers to extension plug version 3
3
and assumes that the plug is recognized by the
system software. That will result in activation of a digital high pass, in addition to the usual analog input
high pass (AC coupling of signals with 12 V DC offset). Such firmware driven signal processing will remove
any remaining residual offsets.
