AMAZON2 SERIES Operation Manual Page 5
Pioneer in Digital Vision Technology

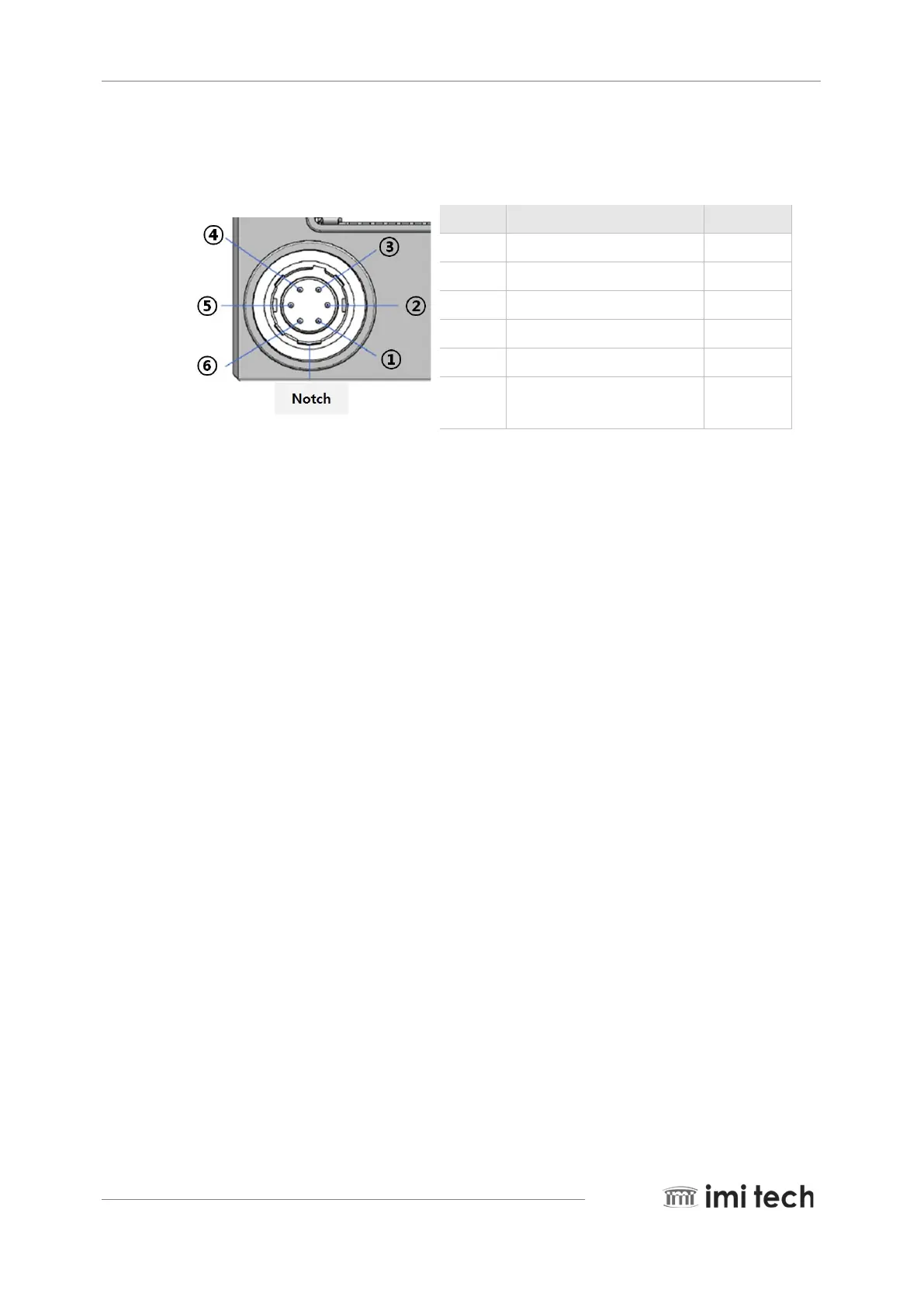

1.5.1. Trigger/Strobe/Power Connector Port
The External Trigger/Strobe/Power Connector provides access to multiple I/O signals and power.
Pin Description I/O
1 +12VDC Camera Power P
2 Trigger In + I
3 I/O GND G
4 Strobe Out + O
5 I/O GND G
6
Camera Power GND
G
1.5.2. Status LED for Network Connection
When the Red LED is lit, it indicates that an active network connection is available.
When the Green LED is lit, it indicates that data is being transmitted via the network connection.
Remark: When the power is off, both the Red and Green LED are OFF.
1.5.3. Camera Power Requirement
The Amazon2 Series cameras utilize a selection of power from the Ext. 6 pin Connector Port, which provides power
to the camera. An input voltage range of 8V ~ 24V is accepted.
Amazon2 also provides PoE(Power over Ethernet), which complies with IEEE802.3af.
