AMAZON2 SERIES Operation Manual Page 41
Pioneer in Digital Vision Technology
Status Control Register
Address Name Field Bit Description
F0F00830h TRIGGER
_MODE
Presence_Inq
0
Presence of this feature
0: N/A, 1: Available
Abs_Control
[1]
Absolute value control
0: Control with value in the Value field
1: Control with value in the Absolute value CSR
If this bit = 1, value in the Value field is ignored.
- [2..5] Reserved
ON_OFF
[6]
Write: ON or OFF this feature
Read: read a status
0: OFF, 1: ON
If this bit=0, other fields will be read only.
Trigger_Polarity
[7]
If Polarity_Inq is “1”,Write to change polarity of the
trigger input Read to get polarity of trigger input
If Polarity_Inq is “0”,Read only.(0: Low active
input, 1: High active input)
[8..11] Reserved
Trigger_Mode [12..15] Trigger mode.(Trigger_Mode_0-15)
[16..19] Reserved
Parameter [20..31] Parameter for trigger function, if required.

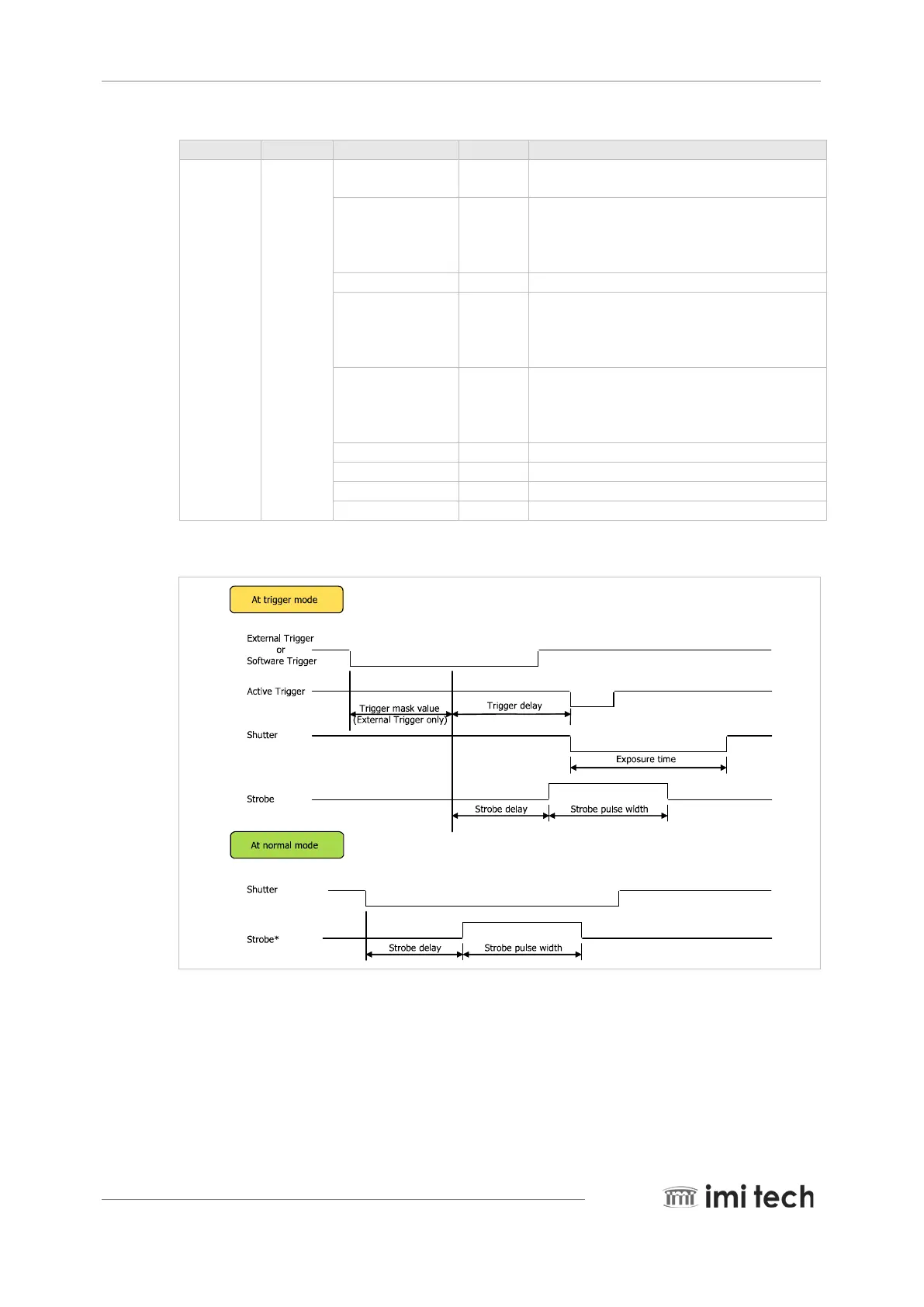

4.9.2. Trigger and Strobe Signal Relation
