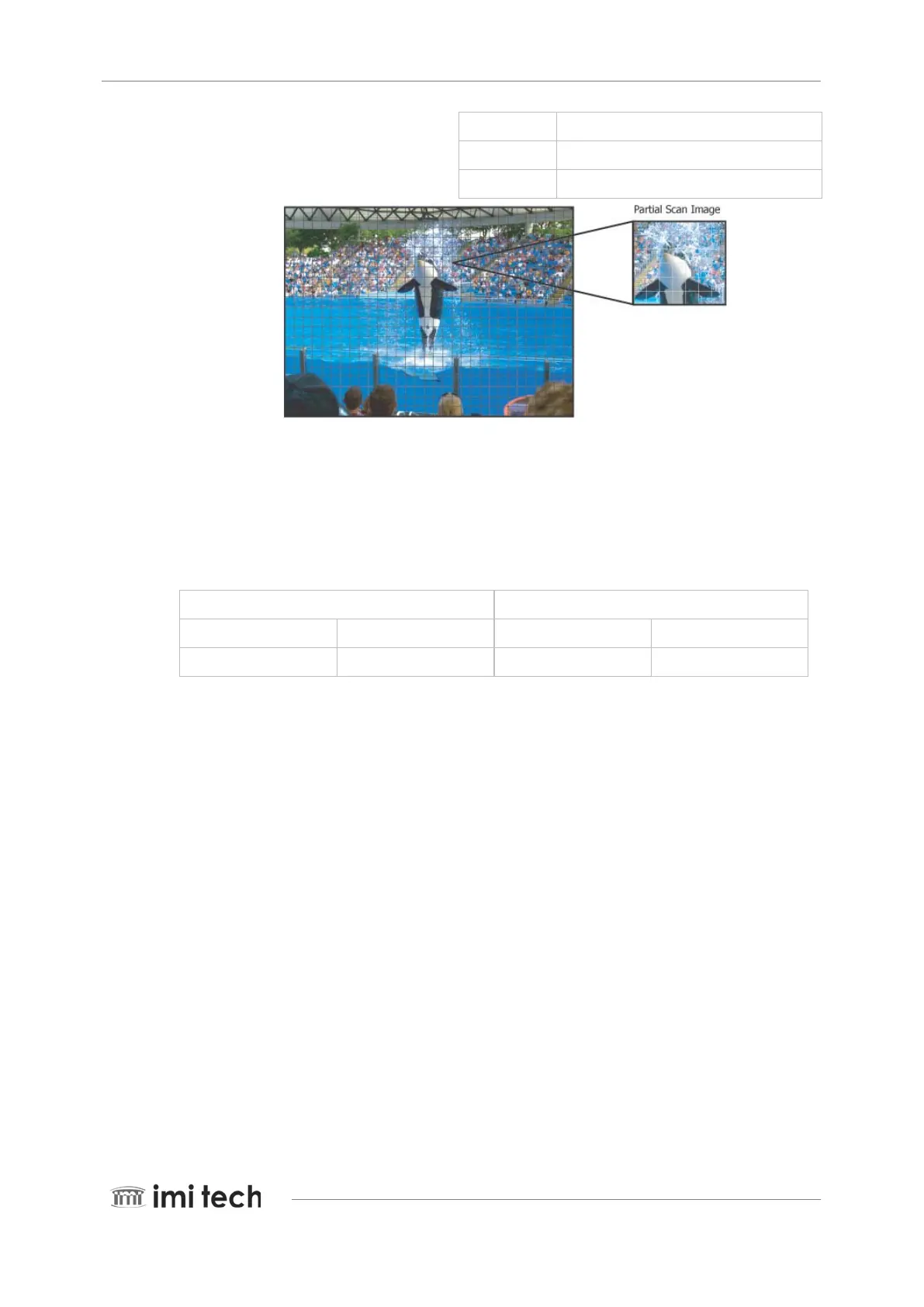

Page 52 AMAZON2 SERIES Operation Manual
Pioneer in Digital Vision Technology
Left + Width < = Hmax
Top + Height < = Vmax
(n1,n2, m1, m2 are integers)
Initial Values System Dependant
Read Values Last Update Value
Write Effect Stored
5.3. One-Shot and Multi-Shot
This camera supports One-Shot and Multi-Shot features. The camera should be in ISO disabled mode before the
execution of these commands. If the camera is in ISO enabled mode, these commands are ignored.
One-Shot is used to grab only one frame. Multi-Shot is used to grab 1~65,535 frames.
Caution : One-Shot and Multi-Shots are not supported in trigger mode
One-Shot Multi-Shot
Address F0F0061CH Address F0F0061CH
Data 80000000h Data 4000nnnh
nnn is the number of output frames which can be any number between 0001h ~ FFFFh.(1~ 65,535)
Priority of the command execution is as follows. Continuous > One-Shot > Multi-Shot.
When a command with higher priority is being executed; the command with lower priority will be ignored
5.4. Time Stamp Register.
Time Stamp register is defined in GigE Vision specification as a standard register. Please refer to the Gigi E vision
specification V1.0 for details.
The details and register settings are found in address 0x0944 ~0x94C.
