- [2..4] Reserved
One_Push [5] Write ‘1’ :begin to work
(Self cleared after
operation)
Read: Value=’1’ in operation
Value=’0’ not in operation
If A_M_Mode =1, this bit is ignored
ON_OFF [6] Write: ON or OFF this feature,
Read: read a status
0: OFF, 1: ON
If this bit=0, other fields will be read only.
A_M_Mode [7] Write: set the mode,
Read: read a current mode
0: Manual, 1: Auto
- [8..19] U Value / B_Value.
Write the value in AUTO mode, this field is
ignored.
If “ReadOut” capability is not available,, read
value has no meaning.
Value [20..31] V Value / R_Value
Write the value in AUTO mode, this field is
ignored.
If ”ReadOut” capability is not available, read value
has no meaning

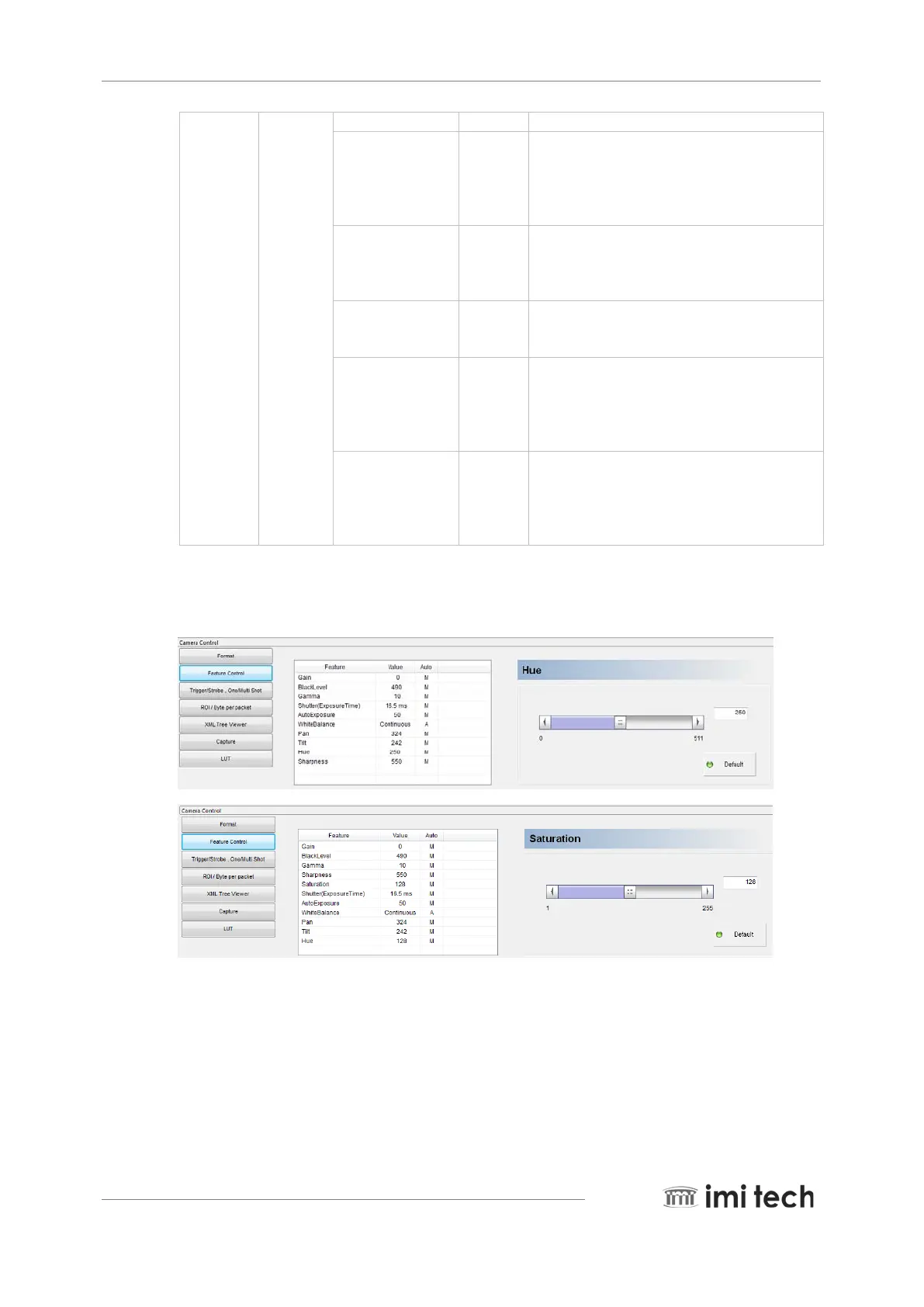

4.5. Hue & Saturation
Color models support Hue & Saturation(Only Color model) control which changes the color phase of the picture.
