Imi Tech AMAZON2 Series - Electrical Operating Condition

Page 6 AMAZON2 SERIES Operation Manual
Pioneer in Digital Vision Technology

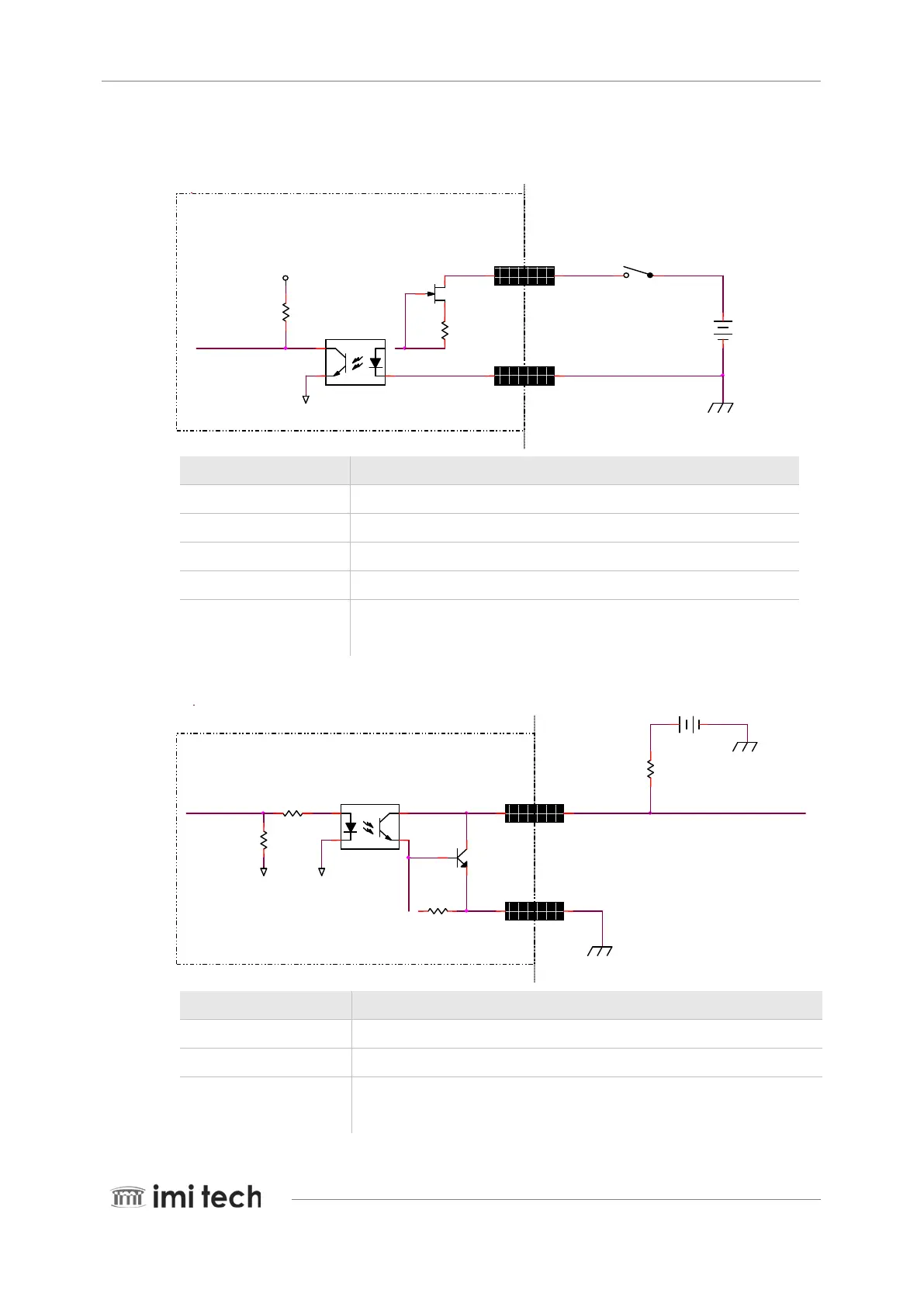

1.6. Electrical Operating Condition
Trigger
Voltage Remark
+0 to +24 VDC Recommended operating voltage
+0 to +1.4 VDC Logical behavior "0" state
> +1.4 to +2.2 VDC It might not work normally
> +2.2 VDC Logical behavior "1” state
+24.0 VDC
Maximum operating voltage
Camera might be broken over +24 VDC
Strobe
Voltage Remark
< +3.3 VDC It might not work normally
+3.3 to +24 VDC Recommended operating voltage
+24.0 VDC
Maximum operating voltage
Camera might be broken over +24 VDC
User side
Connector Pin 5
Connector Pin 4
Voltage output signal
User Power
+3.3 to +24 VDC
User Gnd
Camera Inside
270
270
BC817
Out_Ctrl
User Gnd
GND GND
In_Ctrl
Camera Inside User side
User Power
Input Voltage
+24 VDC
Max.
User Gnd
BF545C
180
GND
3o3V
Hirose-6 Connector
Pin 2
Hirose-6 Connector
Pin 3
