4.9.5. Trigger Mode 0

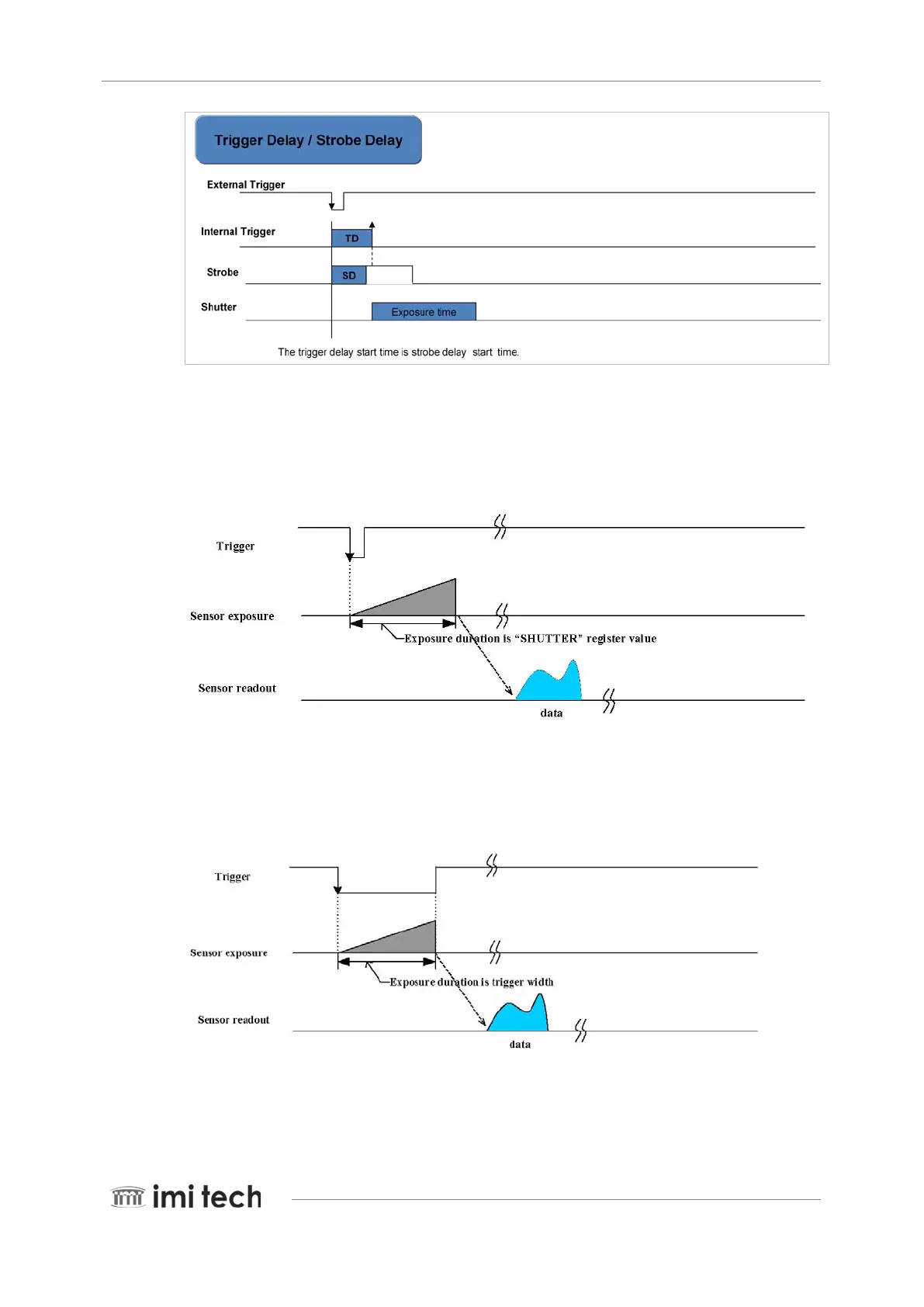

The camera starts the integration of the incoming light from the external trigger input falling edge. Integration
time is described in the “Shutter" register. No parameter is needed. A Trigger delay is applied to mode 0 for H/W
trigger. The Trigger in mode 0 is supported by both a H/W trigger and a S/W trigger.
4.9.6. Trigger Mode 1
The camera starts integration of the incoming light from the external trigger input falling edge. Integration time is
equal to the low state time of the external trigger input. No parameter is needed.
4.9.7. Trigger Mode 2
The camera starts integration of incoming light from the first external trigger input falling edge. At the N-th
(parameter) external trigger input falling edge, integration will be stopped. A Parameter is required and shall be
