two or more. (N >= 2)

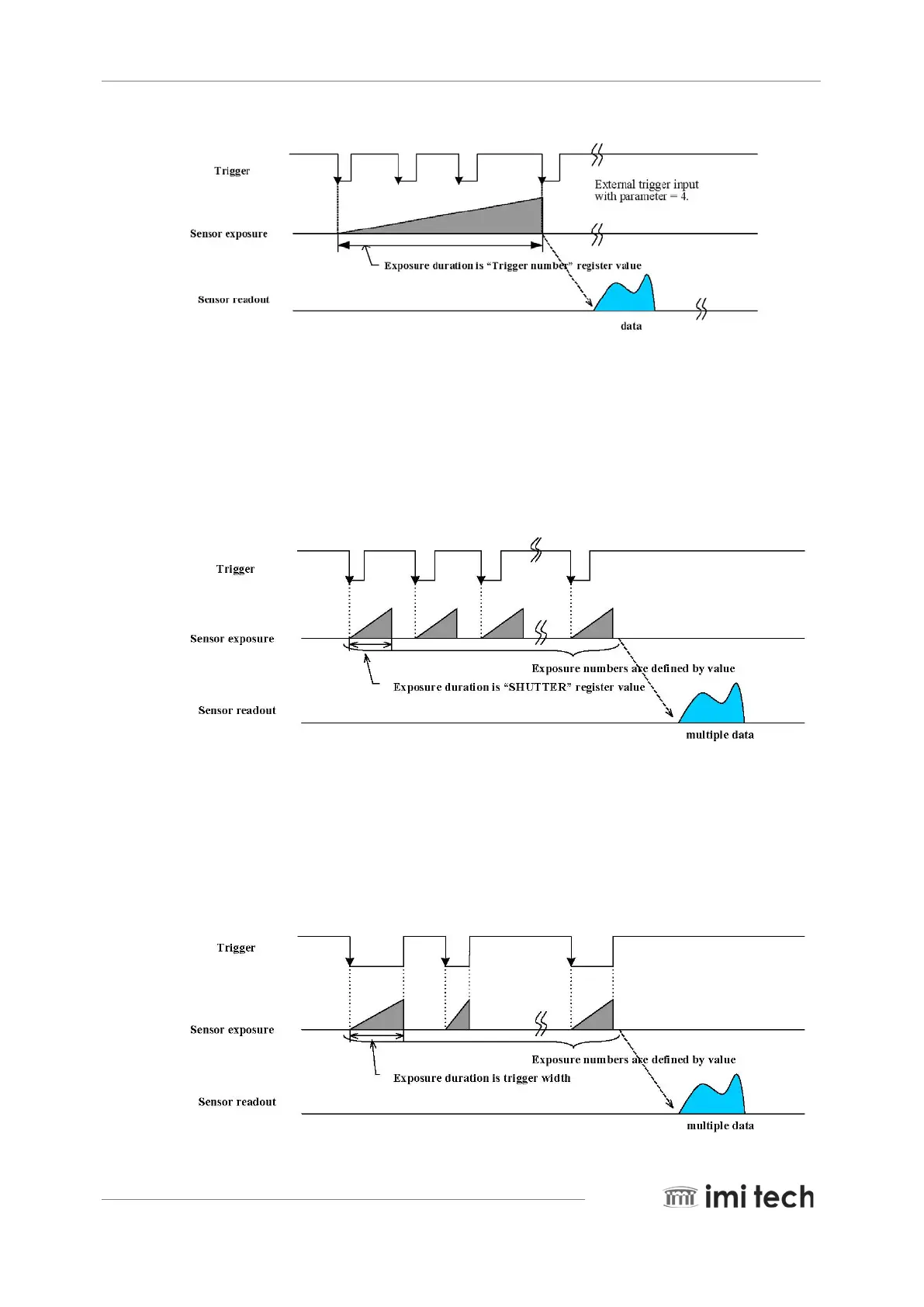

4.9.8. Trigger Mode 4
This mode is “multiple shutter preset mode”. The camera starts integration of the incoming light from the first
external trigger input falling edge and exposes the incoming light at shutter time. It repeats this sequence for the
N-th (parameter) external trigger input falling edge; and then finishes integration. A parameter is required and shall
be one or more. (N >= 1)
4.9.9. Trigger Mode 5
This mode is “multiple shutter pulse width mode”. The camera starts the integration of the incoming light from the
first external trigger input falling edge and exposes incoming light until the trigger is inactive. It repeats this
sequence for the ‘N’th (parameter) external trigger input falling edge and then finishes the integration. A
Parameter is required and shall be one or more. (N >= 1)
