AMAZON2 SERIES Operation Manual Page 53
Pioneer in Digital Vision Technology
5.5. LUT (Lookup table)
The Amazon2 series supports an LUT, which provides the user with an image comprised of the user’s defined
dynamic range. Through the LUT, the user can process the images from saturation to dark. The LUT can be used
optionally with Brightness, Sharpness and Gamma. However, the LUT is applied prior to the features like
Brightness, Sharpness and Gamma.
(Priority: LUT >Brightness, Sharpness and Gamma)

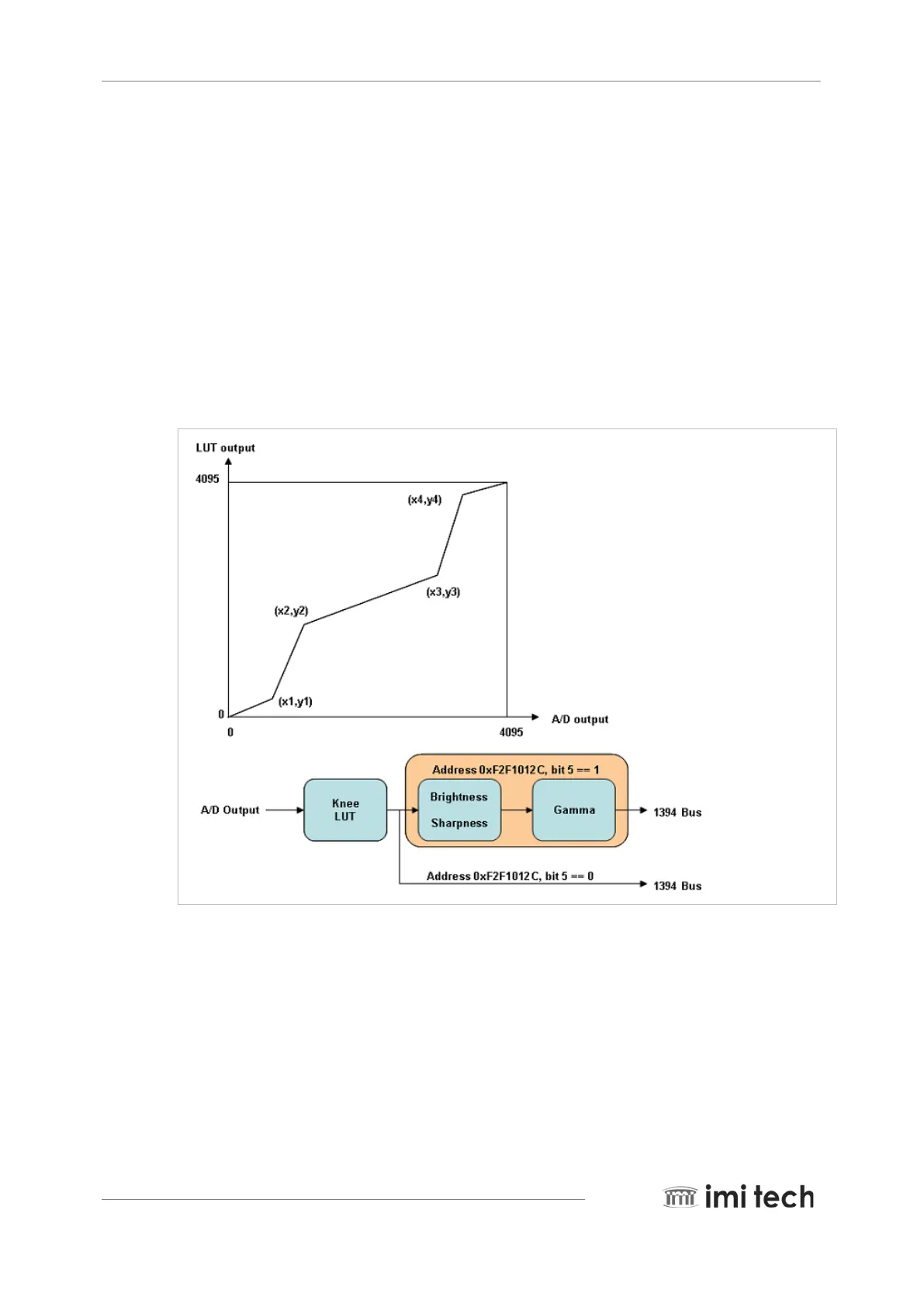

5.5.1. 4 step knee lookup table
The user can set the 4 points for the images, called the knee, and apply them to the LUT.
To Next Page
