Chapter 3 Environment description and installation
3-3

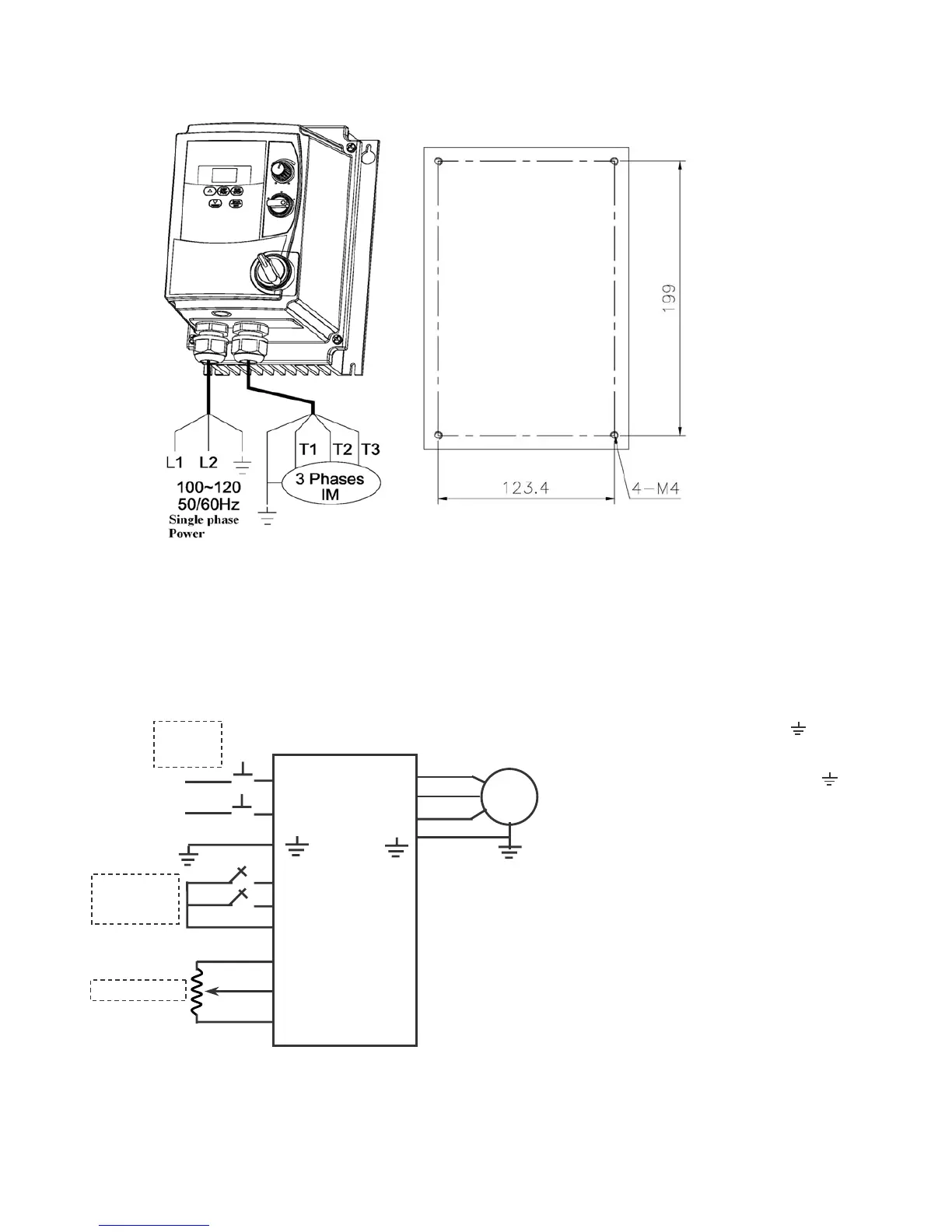

 iDrive EDX-###-##-N4X(IP65
) type installation:
NOTE :
1. Power switch , REV-0-FWD switch and potentiometer are only
for EDX-######- N4S TYPE
2. Power supply cable : 600V AC rated PVC
3. Motor cable : 600V AC rated PVC / (screened or armoured)/PVC
4. Maximum torque on terminal screws :
(1). Power/motor cable (plug in) terminal : 5kg-cm(4.34 in-lb)
(2). Remote control wire : 4kg-cm (3.47 in-lb)
(3). Outer cover (M4) : 6kg-cm (5.20 in-lb)
T1
T2
T3
L1
L2
FW
RE
24V
3
PHASE
IM
POWER
SWITCH
REV-0-FWD
SWITCH
Potentiometer
AC
100~120
or
200~240
50/60HZ
10V
VIN
0V
NOTE:
(1). Input power : single-phase (L1,L2,
(PE))
ensuring supply is 100~120 or 200~240 supply
according to model type.
(2). Output / motor : three-phase (T1,T2,T3,
(PE) ).
Caution : Do not start or stop the motor
by switching input power
‧For EV-######-N4S type :
Ensure that the REV-0-FWD switch is set at ‘0’
position so that the iDrive has no run signal
at power-on otherwise injury may
result.
(
PE
)
(
PE
)
(
PE
)
(
PE
)
(
PE
)
(PE)
N
OTE: - INFORMATION ON THIS
PAGE SUBJECT TO DESIGN CHANGE.
IF IN DOUBT PLEASE CONTACT IMO
FOR LATEST INFORMATION.
