Chapter 3 Environment description and installation
3-20

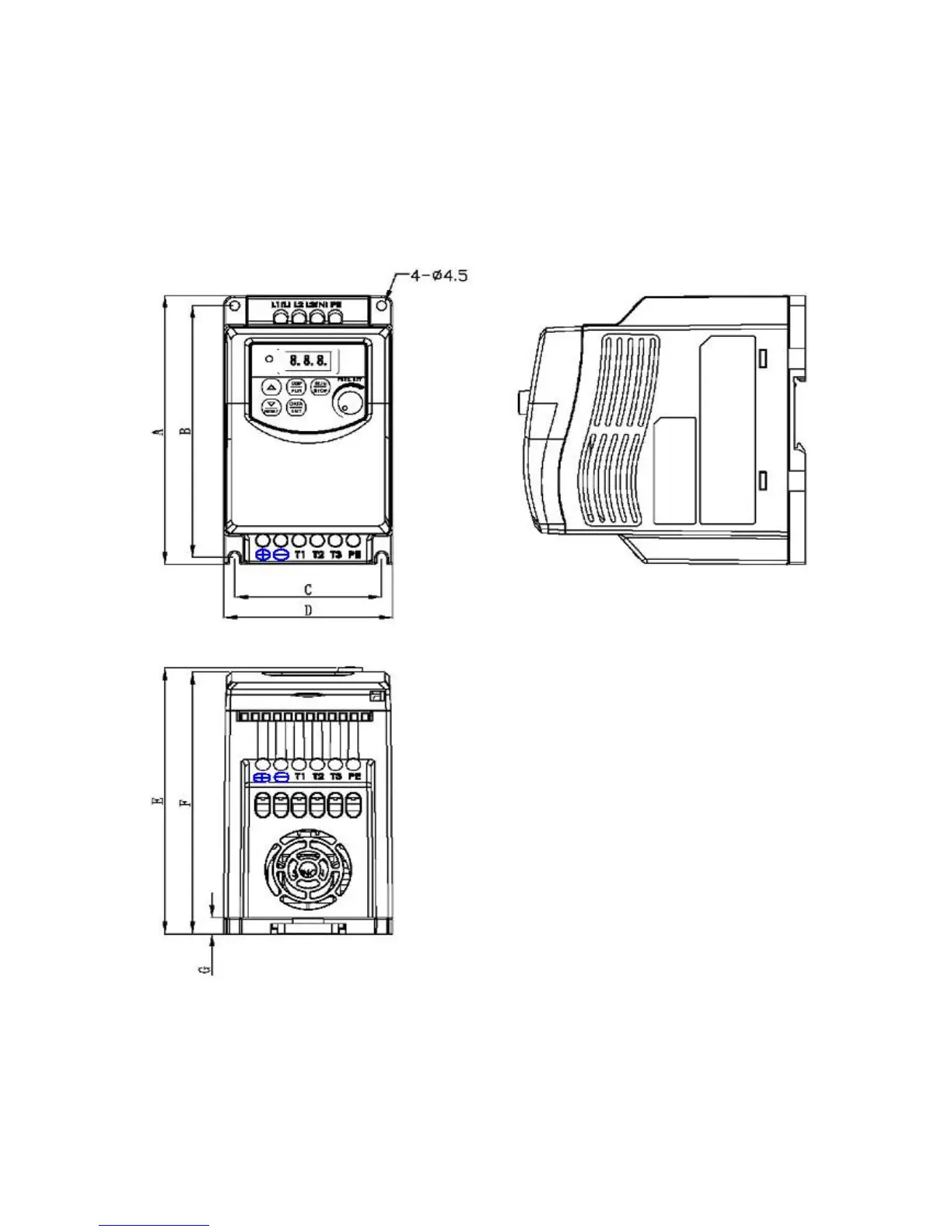

3.7 iDrive Dimensions
IP20 Frame 1: 1-phase 100V: EDX-020-11 ~ EDX-075-11
1-phase 200V: EDX-020-21 ~ EDX-075-21, EDX-020-21-E ~ EDX-075-21-E
3-phase 200V: EDX-020-23 ~ EDX-075-23
