Chapter 3 Environment description and installation
3-21

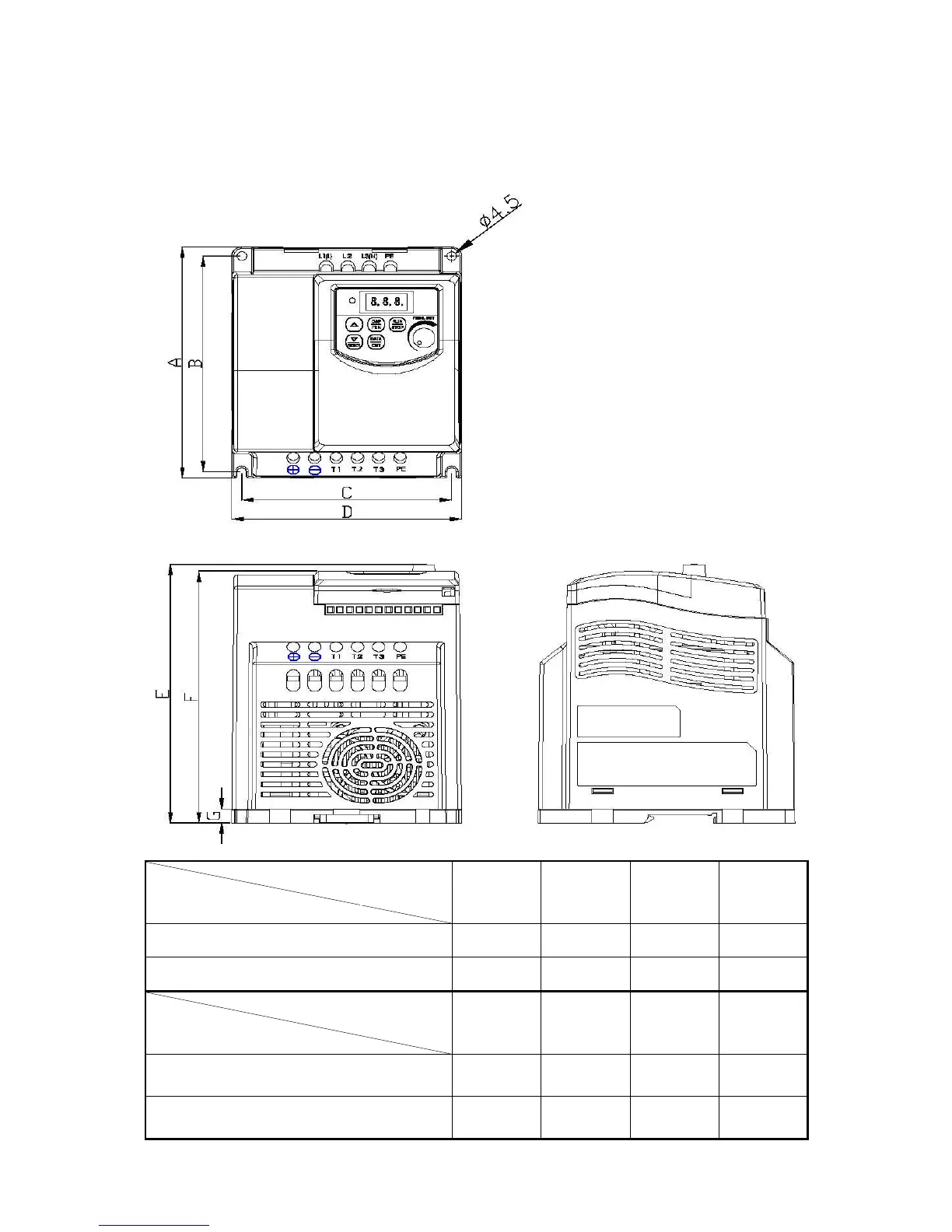

IP20 Frame 2: 1-phase 200V: EDX-150-21 ~ EDX-220-21; EDX-020-21-E ~ EDX-075-21-E
3-phase 200V: EDX-150-23 ~ EDX-220-23
3-phase 400V: EDX-075-43 ~ EDX-220-43; EDX-075-43-E ~ EDX-220-43-E
Unit: mm/inch
A B C D
Frame 1 132/5.2 123.5/4.86 67/2.64 77/3.03
Frame 2 132/5.2 123.5/4.86 108/4.25 118/4.65
E F G
Frame 1 130.5/5.13 128.45/5.06 8/0.315
Frame 2 148/5.83 144/5.67 8/0.315
IMO
Frame Size
Dimension
Frame Size
Dimension
