IMO iDrive - Remote Keypad

Chapter 6 Peripherals
6-4
6.1.4 EDX-LED Remote keypad
Red cable to 24V
Black cable to COM

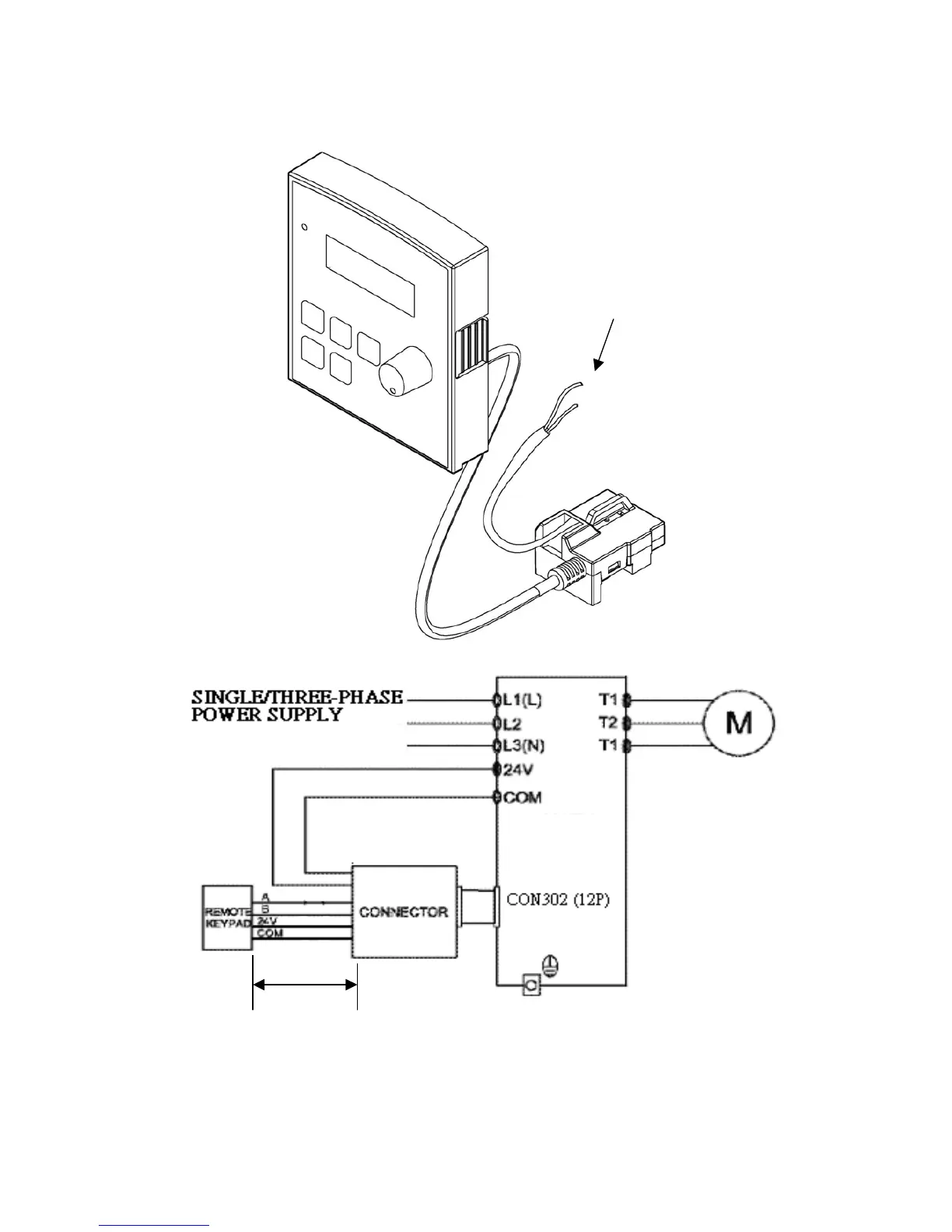

EDX-LED connection diagram
2M
iDrive
• When the inverter is powered on or off it is possible to set up or remove the
remote keypad, but must be connected to TM2 24V DC power in normal use.
