Chapter 6 Peripherals
6-1
Chapter 6 Options
6.1 Option cards
6.1.1 EDX-485 option card
Red cable to 24V
Black cable to COM

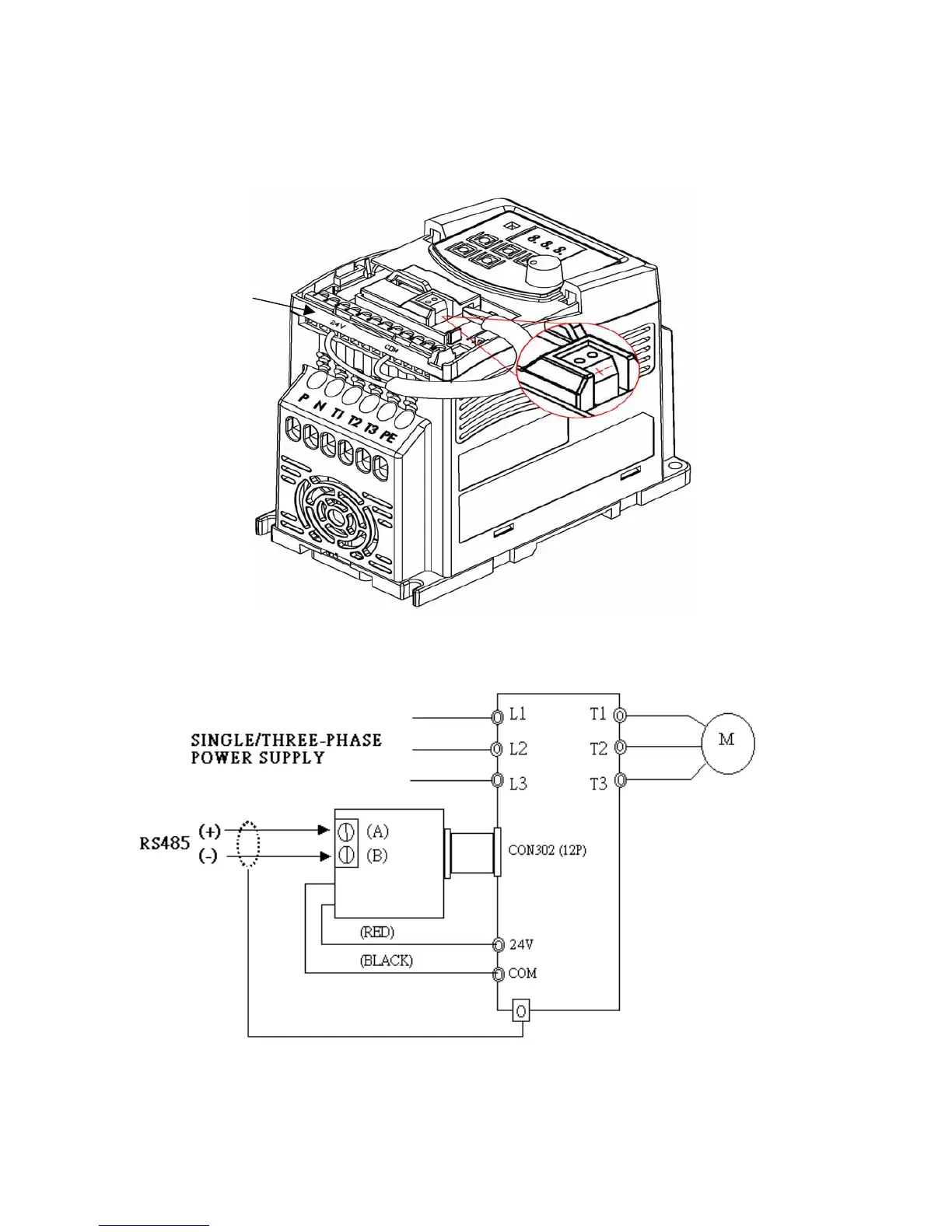

EDX-485 connection diagram:
EDX-485
iDrive
Note :
In order to avoid external interfere with option card, fit top cover to the main unit.
Use isolated RS232 / RS485 converter connecting with PC and option card to avoid damaging
configuration.
