b55 Multi-function output RY1
000: Inverter output on - RUN
001: Frequency reached (Preset target frequency ± b57)
002: Frequency reached (Preset output frequency level (b56) ±b57)
003: Frequency Detection (>b56)
004: Frequency Detection (<b57)
005: Fault output
006: Auto restart
007: Momentary power loss
008: Emergency Stop (E.S.)
009: Base Block (b.b.)
010: Motor overload protection
011: Inverter overload protection
012: xxx Not used xxx
013: Power On
014: Communication error
015: Output current detection
b56 Preset Output frequency reached = 00.0 ~ 200Hz
b57 Frequency detection range = 00.0 ~ 30Hz

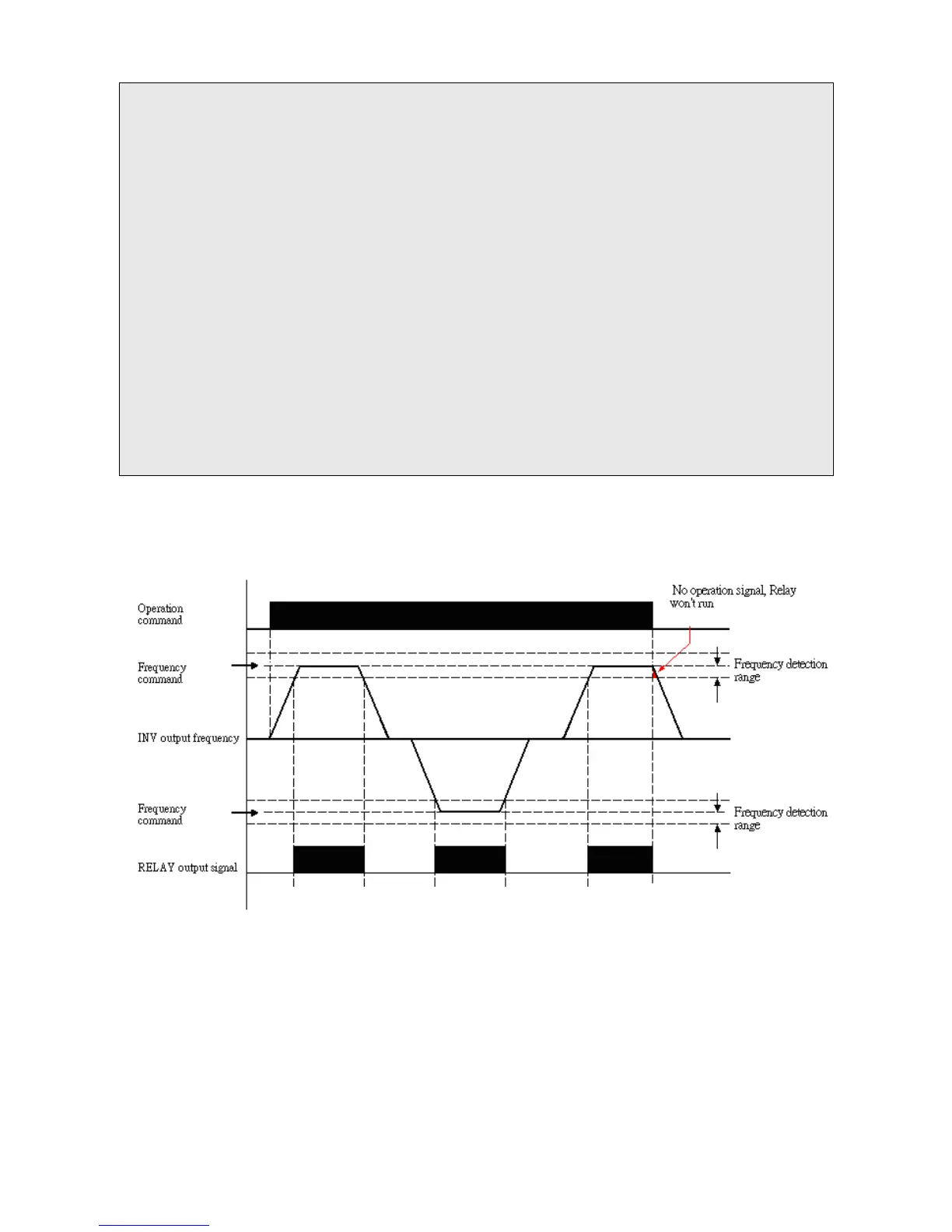

b55 / b60 = 001: Reach frequency : Target frequency ± b57
(b57)
(b57)
