IDS440 Users Manual version 4.2
57

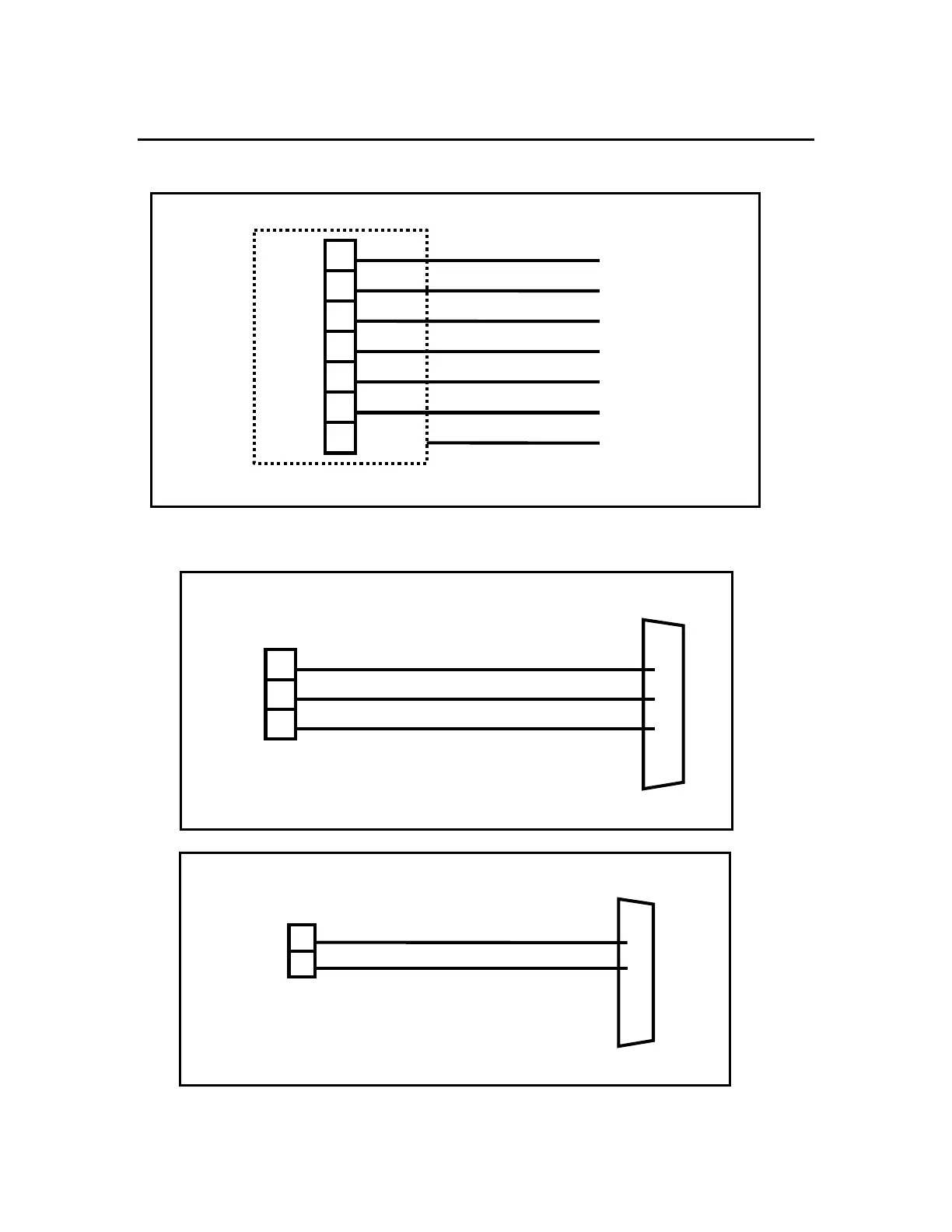

Sample Cable Drawings
Load Cell
IDS150A/152/160/320
LOAD CELL
Note: connect sheild to the enclosure connector hood
1
2
3
4
5
6
7
Signal +
Signal -
Excitation +
Sense +
Sense -
Excitation -
Shield
TB 3
DB 25 PIN MALE
(RS232)
TB1
Serial Com Port 1
TXD
GND
CTS
2
5
7
3
7
4
RXD
GND
RTS
IDS150A/152/160/320
DB 25 PIN MALE
(20ma Current Loop)
TB1
Serial Com Port 1
+5R
CL1 TX
4
6
22
CL+
CL-
IDS150A/152/160/320
8
