IDS440 Users Manual version 4.2

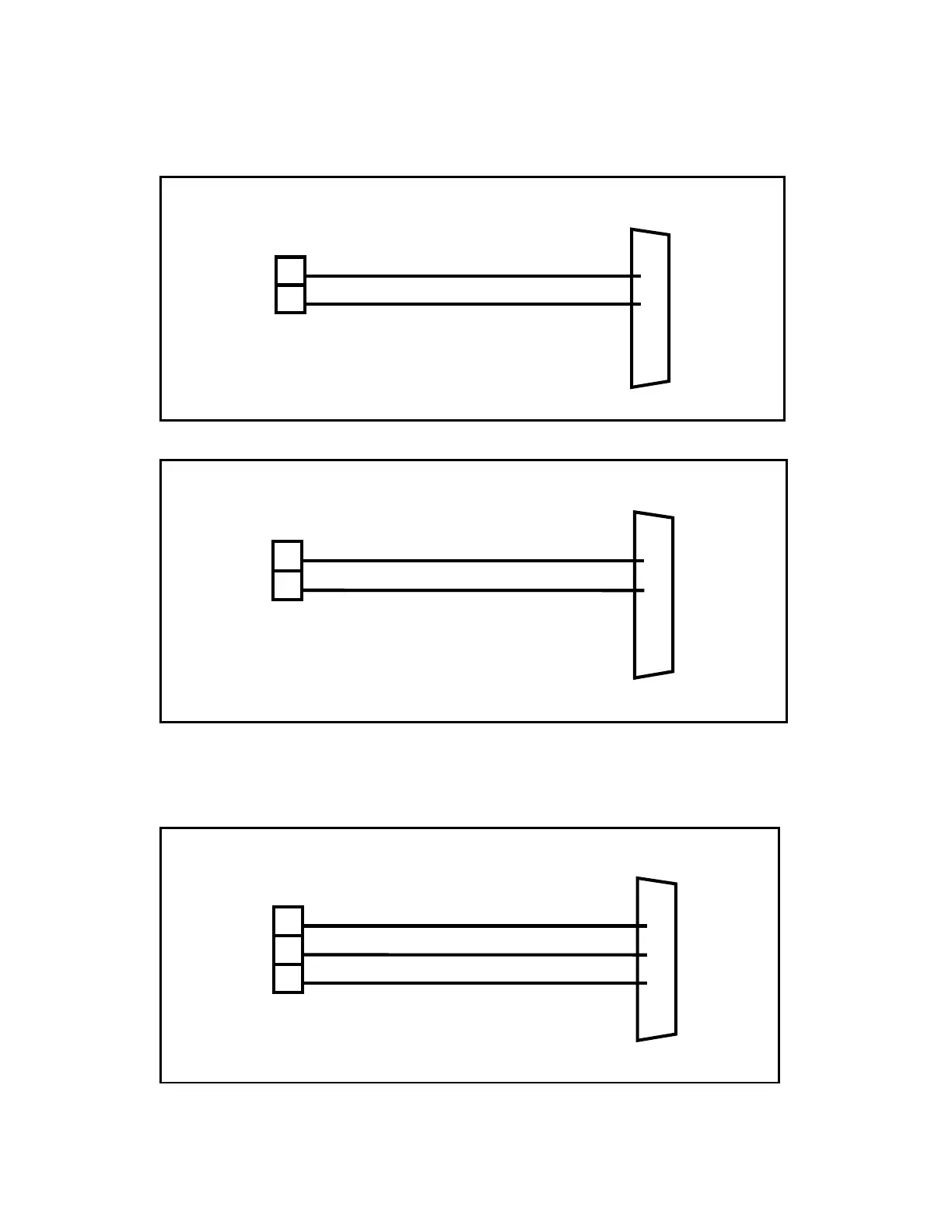

DT210/IDS550/IDS710/PC (Continuous Output Port)

Hewlett Packard Smart Wand HBCR-8xxx series

DB 25 PIN MALE

(RS232)

TB2

Serial Com Port 2

TXD

GND

RXD

GND

DT210 / IDS550 / IDS710

DB 25 PIN MALE

(20ma Current Loop)

TB1

Serial Com Port 2

+5R

CL1 TX

CL+

CL-

DT210 / IDS550 / IDS710

DB 9 PIN Female

(RS232)

TB1

Serial Com Port 1

RXD

GND

+5V

TXD

GND

Bar Code Reader HBCR-8xxx

Power

NOTE: set SW1 to RS232 position.
