IDS440 Users Manual version 4.2
59

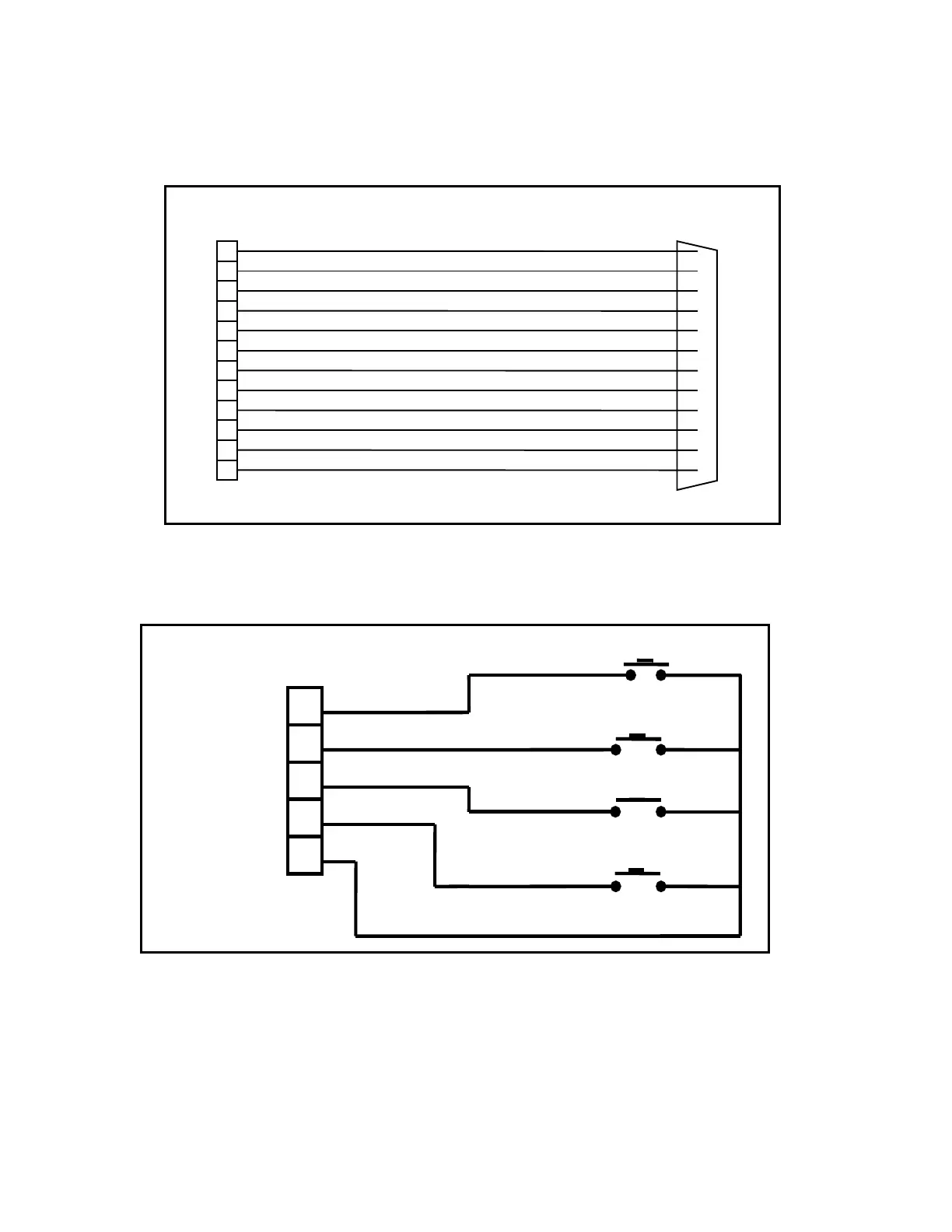

Parallel (Centronix) Printer
Remote Switch Inputs
GND
11
12
13
16
10
TB 4
TTL I/O
Port
Scale Basic Function 1
Scale Basic Function 2
Scale Basic Function 3
Scale Basic Function 4
TTL I/O Port
36 PIN CENTRONIX
FAULT -
BUSY +
Data 1
Data 2
Data 3
Data 4
Data 5
Data 6
Data 7
Data 8
STROBE -
Ground (GND)
32
11
2
3
4
5
6
7
8
9
1
16
TB 4
15
14
1
2
3
4
5
6
7
8
PRINTER
9
16
