InfiNet Wireless R5000 Technical User Manual
Copyright © 2004-2010 by InfiNet Wireless
11
Injector IDU-LA
Injector IDU-LA may be used for the following purposes:
1. To connect the second (additional) RJ-45 connector of R5000-Om/Mm device
models to network equipment.
2. To connect third-party DC power sources to ODU (for example, to power the
unit from solar power or wind power sources). Acceptable voltage values of
third-party DC power sources are 12..48V.
In both cases IDU-LA should be properly grounded (please refer to the
“Grounding when using IDU_LA” section of this manual).

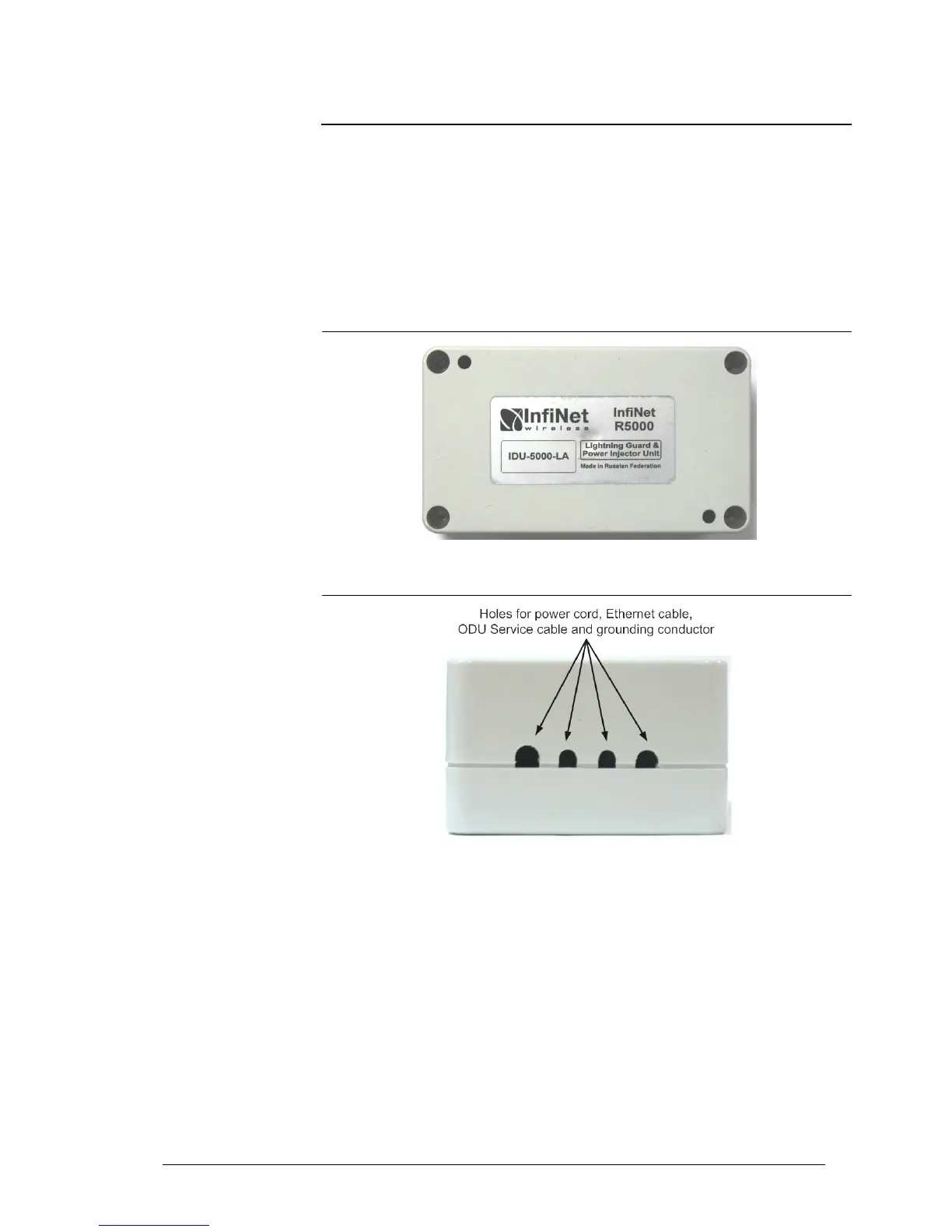

Top view
Front panel
