InFocus X2 Service Manual

X2 Service Manual 28
5 Carefully lift the lamp housing up and out of the projector. The photodiode and color wheel ribbon
cables pass through a retainer guide on the rear side of the lamp housing. As you lift the lamp
housing, remove these cables from the retainer guide.
CAUTION The lamp housing is very close to the color wheel. Avoid touching the color wheel. The edge of
the glass wheel is sharp and can cause personal injury. Touching the color wheel can break it
or leave smudges that degrade the image.
Assembly Notes

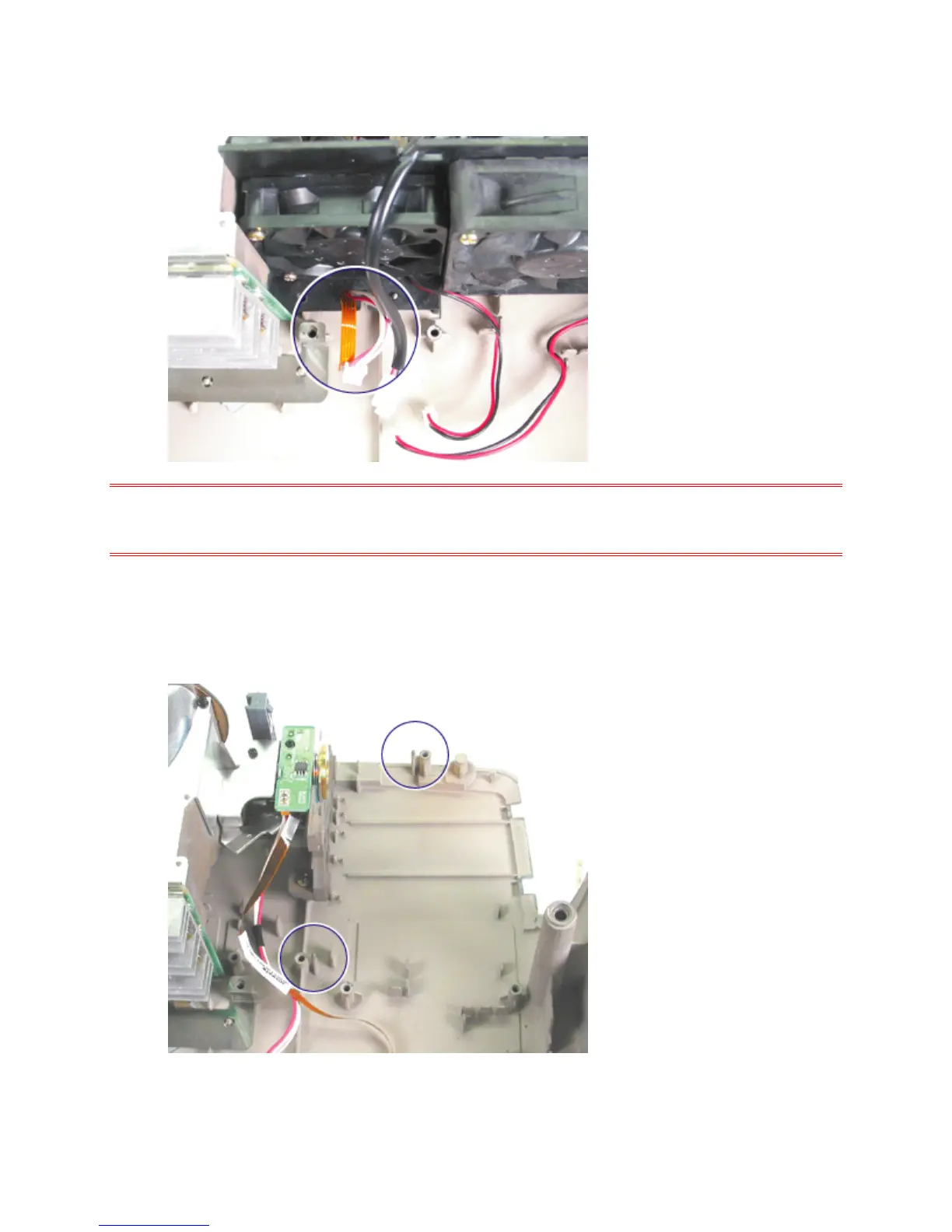

♦ As you lower the lamp housing into the projector, route the photodiode and color wheel ribbon
cables through the retainer guide. Make sure that the lamp housing aligns properly with the two
pins (circled below) on the bottom case.
