Lamp and Lamp Door
The lamp door 505-1841-xx) fits over the lamp cavity in the projector. A pin on the lamp door closes the
safety switch on top of the lamp housing when the door is shut.
The lamp module (SP-LAMP-018) consists of a metal housing and enclosed reflector assembly and arc
tube. Air flow from the 80 mm fan passes through openings on two sides of the lamp module. Screens
over these openings provide air filtration.
CAUTION The lamp module gets very hot during operation. Allow the lamp to cool for 30 minutes before
handling it.

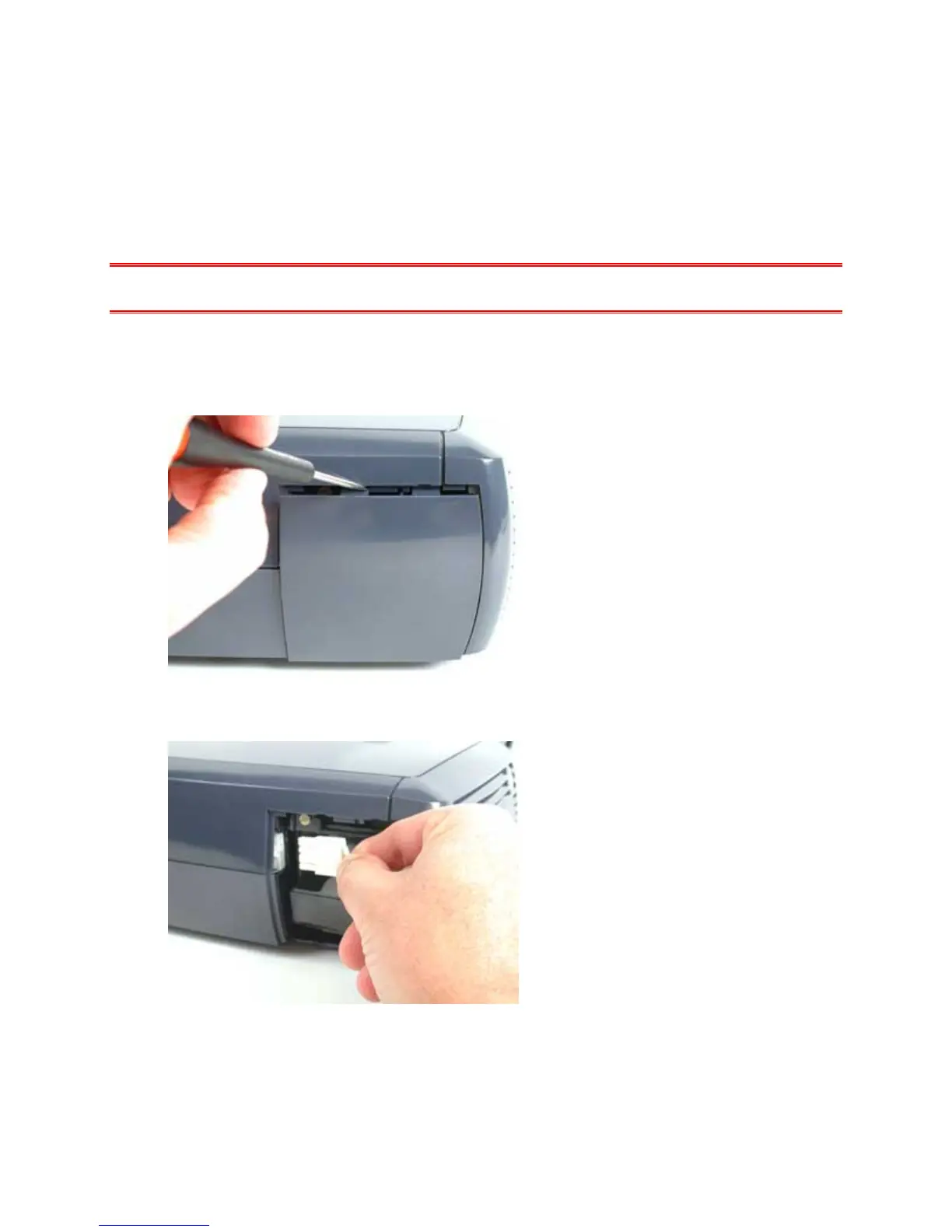

To remove the lamp door, insert a small flat-blade screwdriver into one of the recesses at the top of
the door. Gently pry the top of the door away from the projector. The door detaches from the
projector.
5 Squeeze the locking tab on the lamp cable connector and unplug it from the connector inside the
lamp housing.

InFocus X2 Specifications

General

Number of colors	16.78 million colors
Native aspect ratio	-
Projection distance	- m
Vertical scan range	50 - 85 Hz
Projection technology	DLP
Contrast ratio (typical)	2000:1
Screen size compatibility	- \
Projector native resolution	SVGA (800x600)
Focal length range	- mm
Number of built-in speakers	1
Lamp type	SHP
Lamp power	200 W
Service life of light source	3000 h
Full HD	No
Analog signal format system	NTSC, PAL
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Noise level	- dB
Placement	Desktop
Product type	Standard throw projector
Product color	Gray
Power consumption (standby)	- W
Harmonized System (HS) code	85286200

Weight and Dimensions

Weight	3100 g
